Product introduction

1, the use of microprocessor program control, parameter memory, control accuracy is higher, touch control panel, unique in the country.

2, advanced design concept, especially suitable for export.

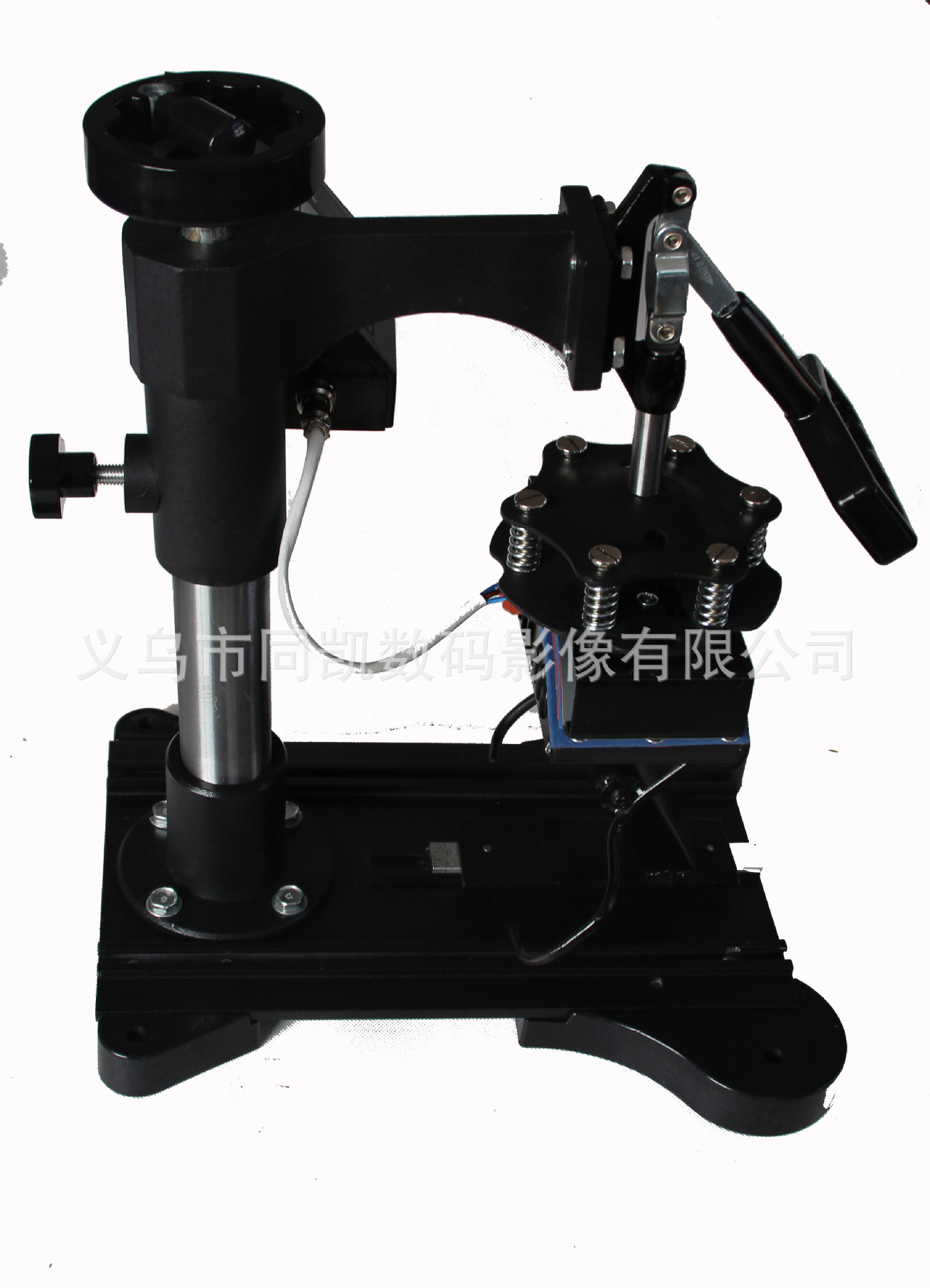

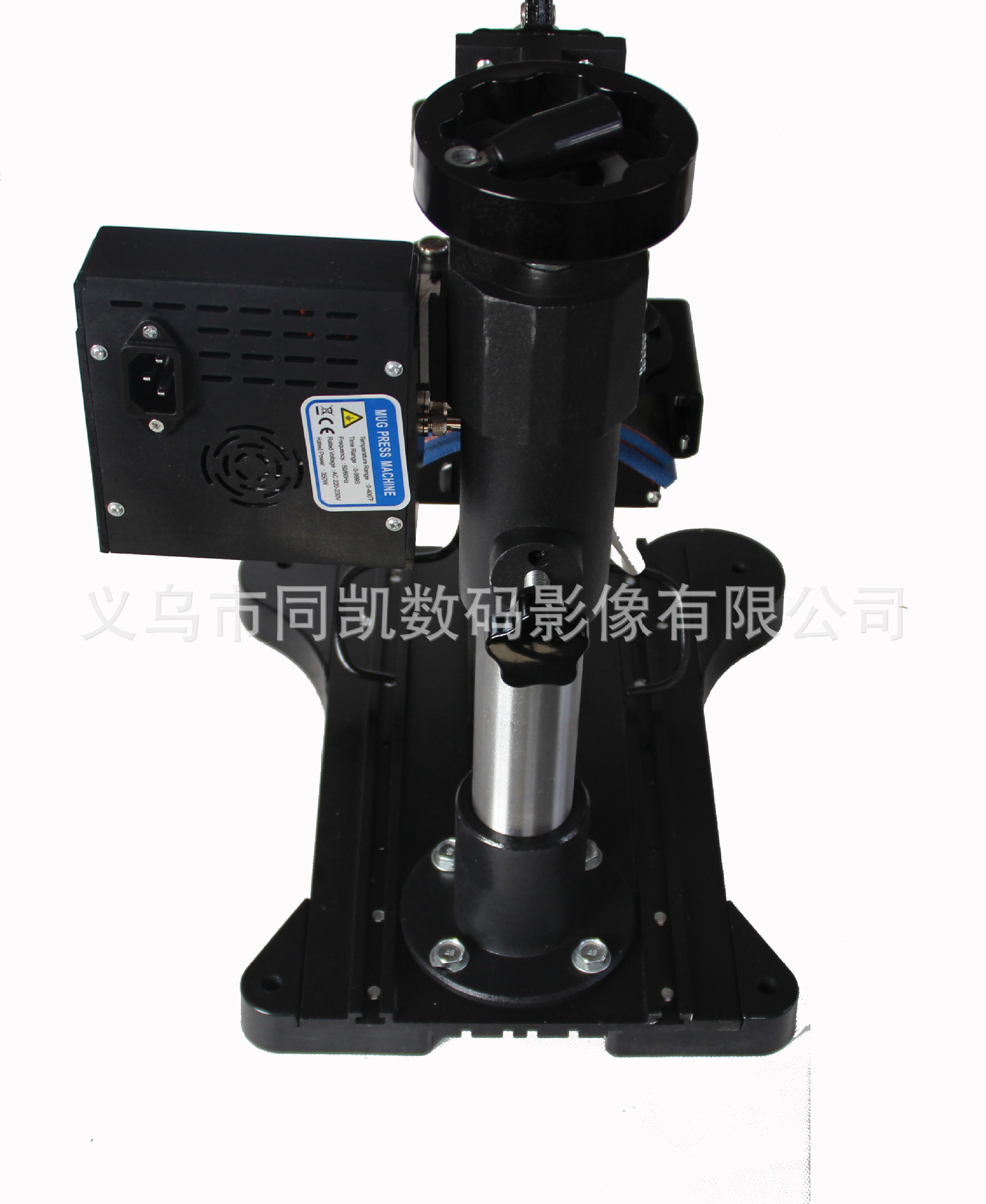

3, can lift 360 degrees rotation, easy to extract and a certain thickness of the shaped objects of the printed image.

4, the key components of imported raw materials, the use of more stable performance, durable.

5, the surface paint processing, smooth, high-grade.

6, due to the production of sophisticated equipment, the production of image products more excellent.

7, voltage 220v/110v, power 300W, stamping area 1016cm, gross weight 15kg, carton 395*300*420mm, double carton packaging.

Digital baking hat machine: black and white two colors, available for customers to choose.

Digital baking cap machine instructions

- plug, turn on the power switch. (the rated power input rated voltage 220V, 100W) -
set operating procedures: (the temperature in degrees Fahrenheit) - plug, turn on the power switch. (the rated power input rated voltage 220V, 100W) -
set operating procedures: (the temperature in degrees Fahrenheit)

Starting temperature: the mode setting key once, then set the indicator light, by the addition or subtraction key to set the starting temperature.

Maximum temperature: press mode key second times, at this time the temperature indicator light, by the addition or subtraction key to set the maximum temperature.

The most high temperature baking time: according to the mode setting key third times, at this time the indicator light is bright, according to the addition or subtraction key to set the most

High temperature baking time. To be executed state: according to the mode setting key fourth times, the machine into the state to be executed.
note: initial temperature range of 200~380 degrees, the highest temperature range 200~430 degrees.

The high temperature baking time setting range 0~999 seconds.

The temperature setting machine with self-locking function, such as the initial temperature is 340 degrees, the machine will automatically limit the set temperature range of 340~430 degrees. On the contrary, if the maximum temperature is 250 degrees, the machine will automatically limit the starting temperature setting range of 200~250 degrees.
* in temperature is lower than the initial temperature, the temperature rises to the starting temperature is different according to the execution keys can complete the entire printing process is baked, the temperature rise after starting temperature no longer pause and tweet.

The recommended parameters (speed baked way) : starting temperature is set to 355 degrees, the highest temperature is set to 355 degrees, the highest temperature curing time, heat transfer settings: samwood 30~50 seconds 10~20 seconds / T-shirt paper. When the temperature rose to the starting temperature according to the execution key , start time immediately after pressing the pressure handle.
roast India ready: clean transfer transfer paper hat, hat fit in the transfer surface, high temperature adhesive tape fixed, placed on the hat bracket, if the pressure is too large or too small, can adjust the height of the head.
- baked pattern printing problem:

The color is too light: the temperature is too low or the pressure is not all or the time is too short.

Pattern fuzzy: time is too long lead to ink diffusion.

Pattern surface gloss: the pressure is too large or too high temperature.

Pattern local blur: the heat distribution in the baked Indian area is uneven.

The pattern has scar: the hot stamping time is too long.

Pattern color shades: uneven pressure or uneven objects.

Sticky paper: the temperature is too high or the object transfer coating bad smoke
