In most parts of both hair Shentong, remote regions the express postage is more expensive, contact customer service change shipping and logistics to pay then.

100 sets and less than the general spot, more than 3 units within 200 days of production. Can produce 110V machine, voltage and plug can be customized. Machines are exported to Europe and the United States, Asia Pacific and the world, is a mature export products. For more information, please contact the sales manager. More than 200 units to do OEM

After sale service []

1. lifetime maintenance (not including artificial damage)

2. lifetime free of charge to provide the baking cup machine operating technical guidance.

10G presented 3. multi heat transfer information, shop without worry.

4. for customers will not Photoshop, we provide the full range of professional guidance.

[] reminder

if you need to order other thermal transfer supplies, can contact the company to ask for more detailed quotation! Can also call the Advisory: 13235897330

attention : before using the machine, please carefully read the instructions on the operation warning, the replacement of the heating parts, please shut down first and pull to the general power plug, hot stamping head connecting plug and an electric control box connected socket must be aligned, electric control box not connected heating components never boot. Machine can't burn.

[usage]

this machine can be any color color, portrait, landscape pattern is printed in porcelain, glass, sports water bottles, etc. thermal transfer DIY products, especially suitable for used in advertising, gifts, promotional activities, and as a personalized gift sent to friends and family, and artistic appreciation and practicality in one.

[features]

1. digital display, time accuracy
2.pid microcomputer control, without placing stereotypes cup, direct heating;
resistant high temperature thick silica gel pad to roast printing pressure is more uniform, 400 DEG C without deformation;
can achieve a full-size transfer of the cup body; 5.
can be continuous work.

[product] Exhibition

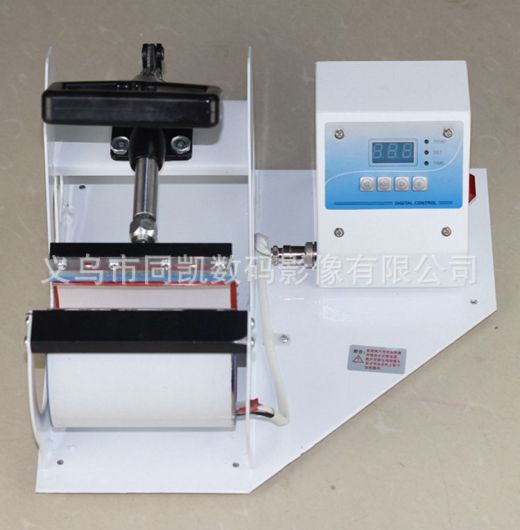

The following is the real shooting baking cup machine:

[technical parameters]
printed products (Transfer Product): Mug 11OZ (mug) voltage
(voltage):220V/110V
power (power):350W
temperature range (temperature range):0-399 degrees Fahrenheit
time (time range):0-999s
weight (gross weight):6.8KG

[show]

onset temperature: mode according to the set key once a at set indicator lights . According to the add key or subtraction key set initial temperature.

highest temperature: according to set key second, at temperature indicator lights , set the highest temperature according to the add key or subtraction key .

highest temperature baking time: according to the mode of set key third. At this time time indicator lights , set the highest temperature baking time according to the add key or subtraction key .

pending status: according to the mode setting key fourth times to enter the implementation of the state machine.

Note: starting temperature range of 200~380 degrees, the highest temperature range 200~430 degrees.

the high temperature baking time setting range 0~999 seconds.

the machine with a temperature setting self-locking function, such as initial temperature is set as the degree of 340, the machine will automatically limit the high temperature set 340~430. On the contrary, if the maximum temperature is 250 degrees, then the machine will automatically limit the starting temperature setting range of 200~250 degrees.

3. India: roast

slow roasted: will be required to hot stamping items placed, pressure pressure handle, turn on the power switch, temperature began to rise. When the temperature rose to start temperature, the buzzer sends out the short song, according to the execution button once, until the buzzer issued a long sound, according to the execution button once, the end of hot stamping. Take out the object, the temperature will automatically gradually return to the starting temperature, in a state of rapid bake standby.

rapid bake: under the state of starting temperature, placed the good object, pressure under the pressure of the hand, execution button once, until the buzzer issued a long sound according to the, according to the execution button a, the end of the hot stamping. Take out the object, the temperature will automatically gradually return to the starting temperature, once again in the state of rapid bake.

[] stamping defect analysis

A. The color is too light: the temperature is too low or the pressure is not uniform or the time is too short.

B. Pattern fuzzy: time is too long lead to ink diffusion.

C. Pattern surface gloss: the pressure is too large or too high temperature.

D . Pattern local fuzzy: hot stamping area of uneven distribution of heat.

E . The pattern has scar: the hot stamping time is too long.

F . Pattern color shades: pressure unevenness or object transfer coating unevenness.

G . Sticky paper: the temperature is too high or the object transfer coating is bad.

parameters recommended : onset temperature setting is 230, highest temperature design 330 degree, the high temperature baking time set s, for 45.

hot stamping: with a cloth to clean the mug surface, will transfer paper wrapped mug, with high temperature adhesive tape fixed, put in the hot cup machine mold cavity and push the pressure on the handle, such as

pressure is too large or too small, adjustable push rod travel.

: baking cup machine heating pad is not afraid of empty burning, but to try to avoid baking cup body height is far lower than that of roasted Cup Coasters width, the same is also a small part of not only the cup body plug

into baking mat in baking, if in a small part of the cup and bake pattern should be starting in drawing processing.

[] equipment requirements

This set of equipment and supplies stores have sales

India takes the following equipment: cup

In addition to the computer image processing, also need the following things:

1, baking cup machine a
2, 6 color or color pressure electric ink jet printer (recommended local customers buy) + empty even for or empty cartridges, ink mounted on the inside)

3, sublimation ink (to be installed inside the printer in )

4, 5,
high temperature adhesive tape paper sublimation, paper baking cup

6, knife tool

which printer advise customers to the local market to buy Epson R230, printers need after-sales place more, in the local is more convenient. Here are as follows:

[CE] product certification

"CE" logo is a symbol of safety certification, manufacturers as open and entering the European market passport. CE on behalf of the European unity (EUROPEENNE CONFORMITE). Those labeled "CE" logo products can be in the EU domestic sales, not required to meet the requirements of each member country's, so as to realize the free circulation of goods in the EU member states within the scope.
