The company operating Youku video demo area, http://i.youku.com/tongkai (copy the link to the IE browser to watch )

[] gifts

to buy the machine, the package will package, give the value of 160 yuan gift package, beyond you, try machine practiced hand opportunity for you to avoid wasting your own supplies. We have a full set of heat transfer solutions, so that the novice is not worried, so that the beginning becomes simple, so that it is easier to start.

After sale service []

1. lifetime maintenance (non-human damage).

2. lifetime free to provide technical guidance.

pad, puzzle, porcelain, metal plates, cups, plates and other hats and , particularly suitable for advertising, gifts, promotional activities, but also can be used as a personalized gift to friends and family, and art appreciation and practicality in one.

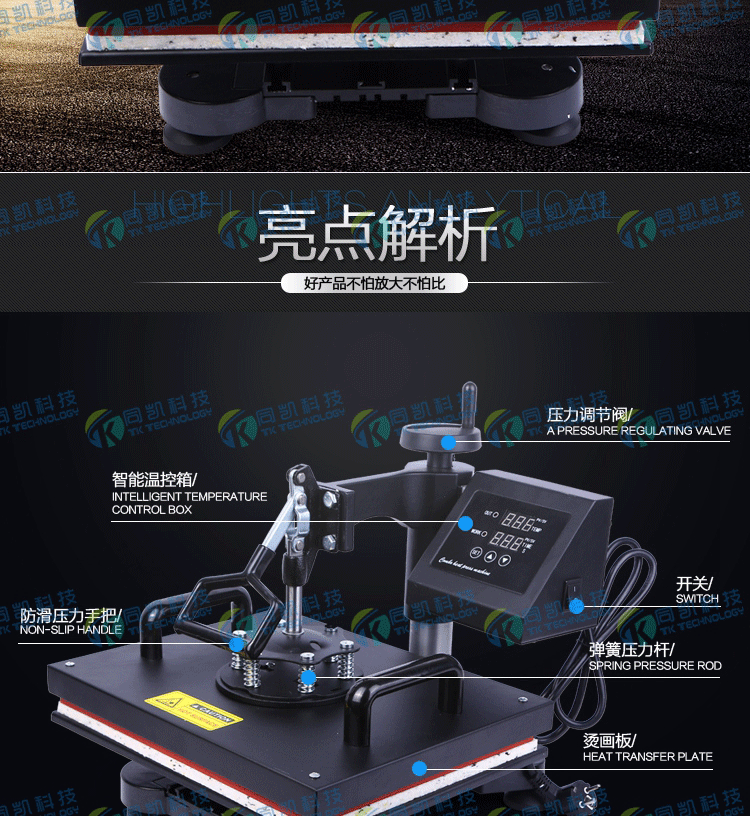

[features]

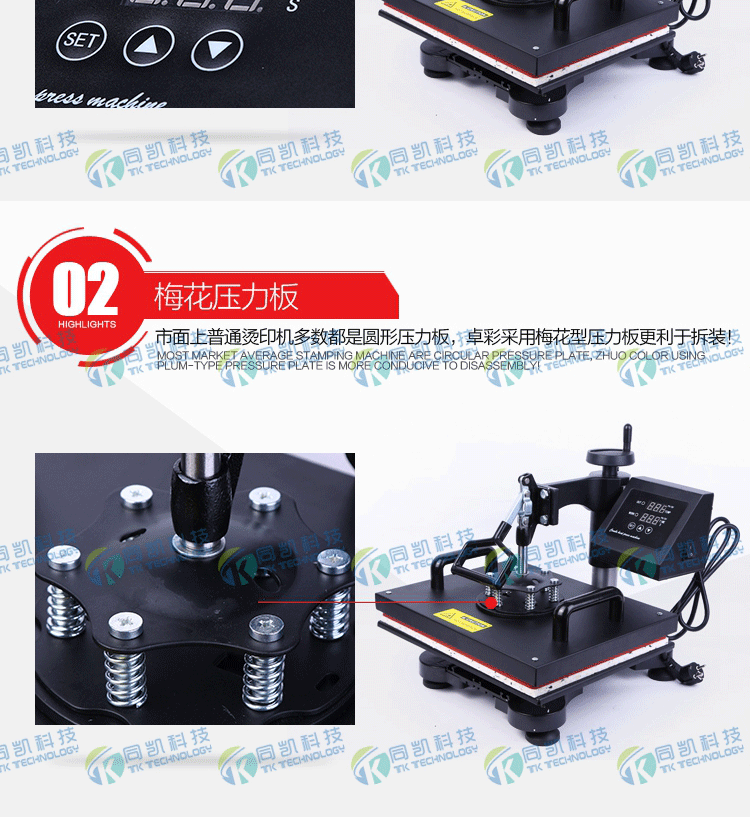

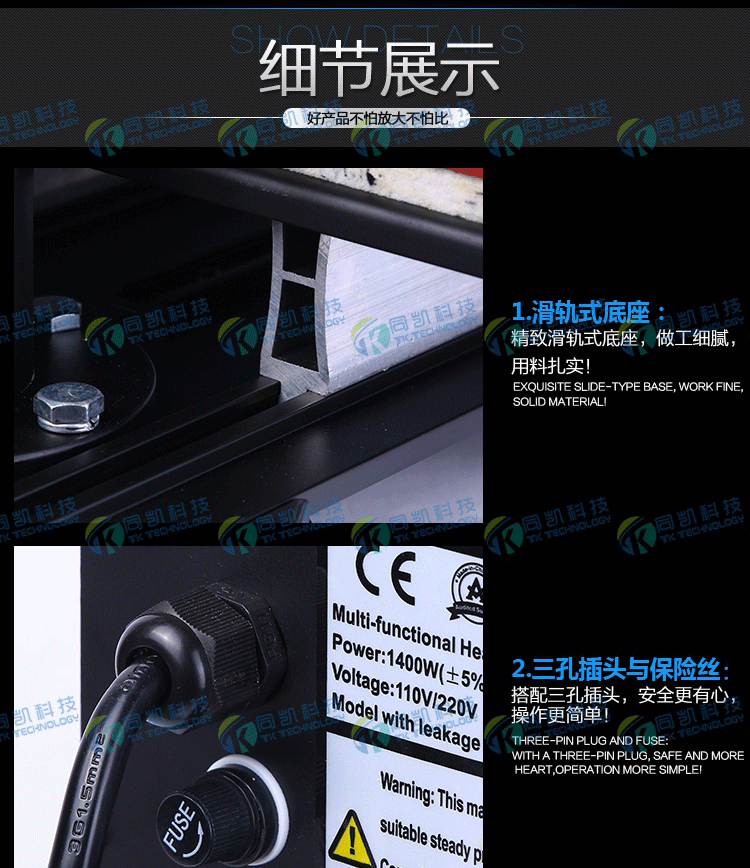

1. The new slide assembly design, the replacement of different parts of the simple and convenient transfer.

2. The whole process of the production of exquisite luxury.

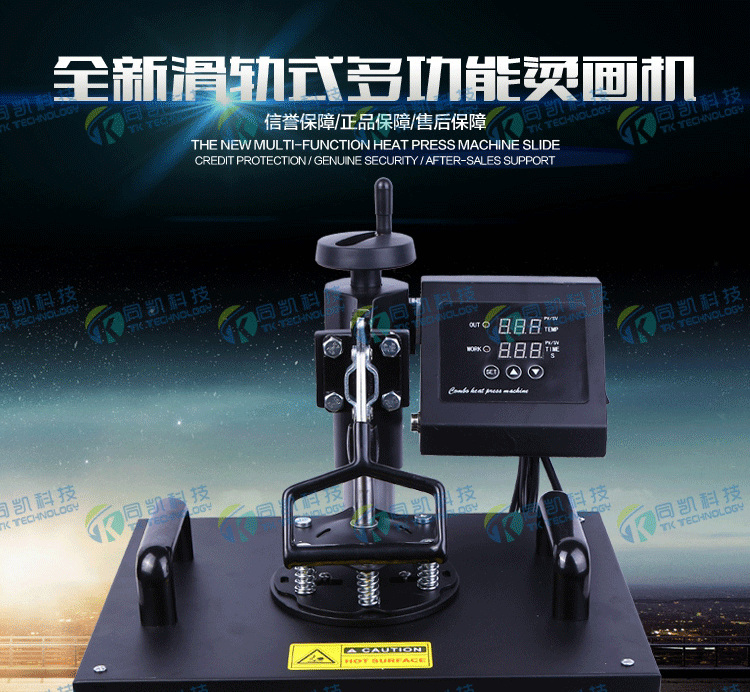

3. The new temperature, time double display intelligent table shows the way, using microprocessor program control, parameter memory, control accuracy is higher, touch control panel, the domestic unique.

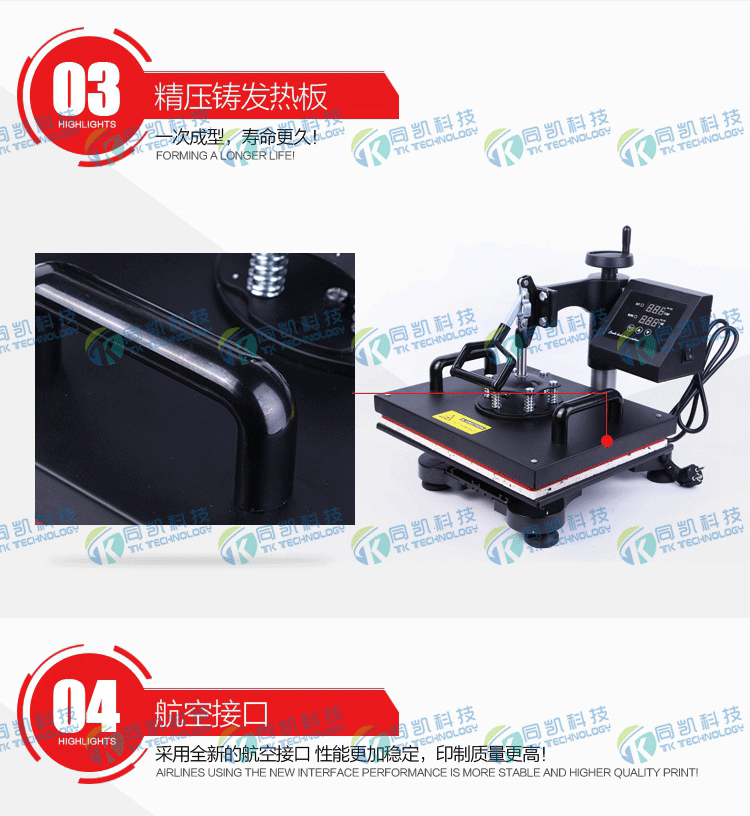

4. controlled heating chip using a new generation of "K" type upgrade control box circuit board and chip, power is more stable, to prevent the voltage instability and easy to cause the problem of circuit board paralysis.

5. Heating galvanic : a new generation of "K" upgrade version of galvanic heating, double merger, more security is not easy to breakdown. (general machinery usually use glass tube covered thermistor, once the voltage is not stable, it is easy to be burned breakdown or uneven pressure and crushed ! )

6. All the upgrade aluminum plate thickening, the quality is more solid, to avoid uneven floor, uneven force, the phenomenon of quality & material & process new upgrade, quality is more secure!

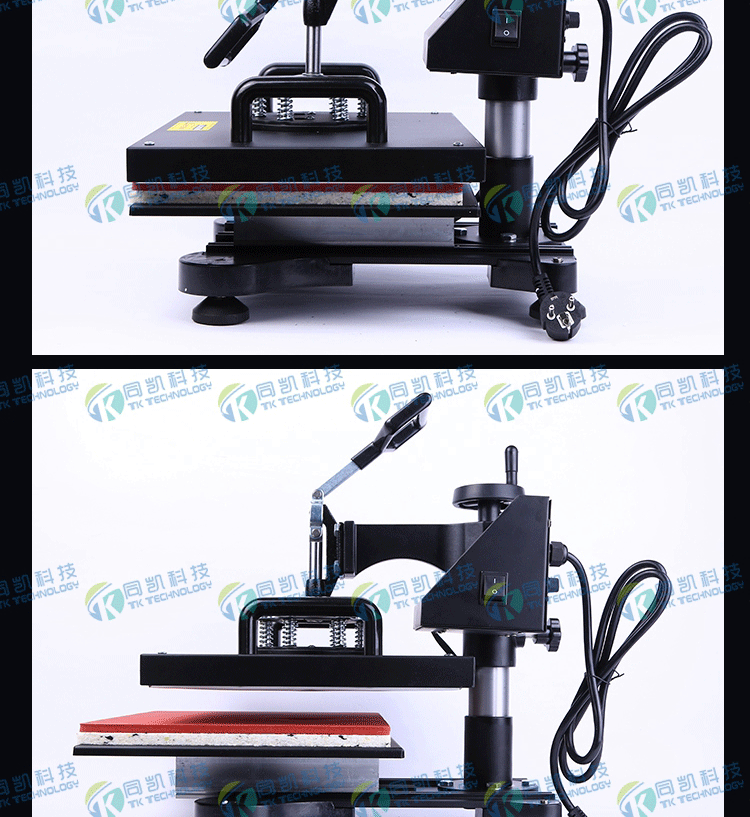

7. can lift 360 degree rotation, easy to extract and transfer goods with special thickness;

8. floor mounted high temperature silicone foam, high temperature 400 degrees nondeforming.

[] technical parameters

- electric sub digital pressure control, convenient adjustment, reliable performance

- voltage: 220V frequency: 50HZ / 110V / 60 HZ

- power: 1400W

- heating plate size (plate heat transfer): 290*380mm / 800W
- packing size: 550mm x 500mm x 480mm

8 inch heating pads: weight: 31Kg

- maximum temperature: 399 degrees Fahrenheit

- time control range: 10-600 seconds

- heating time (20-200`C): 5 minutes

- real-time temperature display status: automatic alarm

[gift] printing process

1. will design good image with thermal transfer ink to the printer inkjet paper (general use back yellow color ink-jet printing paper for printing the best, white, abaxially yellow);
2. need to mirror printing, dye sublimation or paper (smooth, finished printing must be dry, then can transfer) pattern cut, wrapped in the glass surface (image facing cup), with high temperature adhesive tape.
3. Turn on the power heat transfer equipment, according to the different transfer printed products suitable temperature and time. ( various products need to print approval sample, before mass production. )
4. according to the printed products, adjust the appropriate pressure.
5. this machine automatically enter heating transfer state, until the temperature rises to the set temperature , began to countdown, the timing for "0" machine issued long drop to drop to "beep, switch off the power supply, take out the goods in the printed and tear drawing a DIY gifts and making complete.

[parameters] reference

	P1 initial temperature	The working temperature of P2	P3 set the countdown	heating time
baking cup (ceramic)	93 C	180 C	30 seconds	30 seconds	3
baked cap	93 C	180 C	15 ~ 20 seconds	15 ~ 30 seconds
India T shirt	180 C	180 C	15 ~ 20 seconds	15 ~ 30 seconds
sheet metal press
tile
puzzle
other

note: 1. the pyrography time and temperature parameter settings are for reference only, the specific settings should be according to the printed products of different materials, heat transfer effect of the actual operation.

2. so the product transfer (heat transfer) must first go through the sample, can be mass production.

[] stamping defect analysis

A. The color is too light: the temperature is too low or the pressure is not uniform or the time is too short.

B. Pattern fuzzy: time is too long lead to ink diffusion.

C. Pattern surface gloss: the pressure is too large or too high temperature.

D . Pattern local fuzzy: hot stamping area of uneven distribution of heat.

E . The pattern has scar: the hot stamping time is too long.

F . Pattern color shades: pressure unevenness or object transfer coating unevenness.

G . Sticky paper: the temperature is too high or the object transfer coating is bad.

parameters recommended starting temperature is set to 230 : degrees Fahrenheit degrees, the highest temperature is 330 degrees, the highest temperature curing time is set to 30 seconds.

hot stamping: clean with cotton flannel Mug surface, transfer paper wrapped mugs, with high temperature adhesive tape fixed on the machine, hot cup mold cavity pressure push handle, such as

pressure is too large or too small, adjustable push rod travel.

Note: baking cup machine heating pad is not afraid of empty burning, but try to avoid baking cup body height is far lower than the width of the glass baking mat, also not only a small part of the cup body plug

into baking mat in baking, if in a small part of the cup and bake pattern should be starting in drawing processing.

[] reminder

printed character of DIY products, you need to prepare the following equipment and materials:

1 , thermal transfer equipment;

2 , inkjet printer + ( will be empty even for thermal transfer ink into the tx800fw);

3 , sublimation ink (to be installed inside the printer in )

4 , high temperature adhesive tape;

5 , sublimation paper;

7 , paper cutting knife;
which printer advise customers to the local market to buy Epson R230, printers need after-sales place more, in the local is more convenient. The following :

[CE] product certification

"CE" logo is a symbol of safety certification, manufacturers as open and entering the European market passport. CE on behalf of the European unity (EUROPEENNE CONFORMITE). Those labeled "CE" logo products can be in the EU domestic sales, not required to meet the requirements of each member country's, so as to realize the free circulation of goods in the EU member states within the scope.
