[after sale service]

1 lifetime maintenance (non-human damage).

2 lifetime free to provide the baking cup machine operation technical guidance.

3 for customers will not Photoshop, we provide the full range of professional guidance.

[logistics information]

Jiangsu Zhejiang Shanghai general 1-2 days to Anhui, Fujian, Shandong, Guangdong, Jiangxi, Beijing, Tianjin, general 2-3 days, 3-5 days and other areas, remote areas need to transfer 4-7 days. Logistics fees to pay, a general cargo freight at 15-20 yuan, in remote areas or transfer area of freight in 20-30 yuan / piece, logistics fee to the actual date, logistics costs paid to all, to pay cheaper. The other can be specified into the specific logistics.

[warm tip]

If you need to order other thermal transfer supplies, you can contact the company to ask for more details of the product price sheet! Can also call the Advisory: 13235897330

note: please read carefully the instructions on the operation of warning before using the machine, please replace the heating parts off and unplug the power plug total, hot stamping head connecting plug is connected with the electric cabinet socket must be aligned, electric heating components do not boot is not connected. Machine can't burn.

[product use]

This machine can be any color color, portrait, landscape pattern India printed on T-shirts, mouse pad, pillow, puzzle, porcelain, metal plate , particularly suitable for advertising, gifts, promotional activities, but also can be used as personalized gifts to friends and family, and art appreciation and practicality in one.

Product features

This product is a six spring machine, printed T-shirts, mouse pad, pillow, puzzle, porcelain, metal plate and so on, the use of a machine, suitable for users of the new shop.

[parameter]

This machine is Fahrenheit.

Machine case: 54*46*49.5CM

Gross weight: 26kg

Machine max power: 1250W

The heating plate heat transfer area: 38 * 38CM

The following is taken in kind, let me take you to see

Professional mold foam plus 7 layer carton of super tough packaging, can withstand the pressure of 80KG!

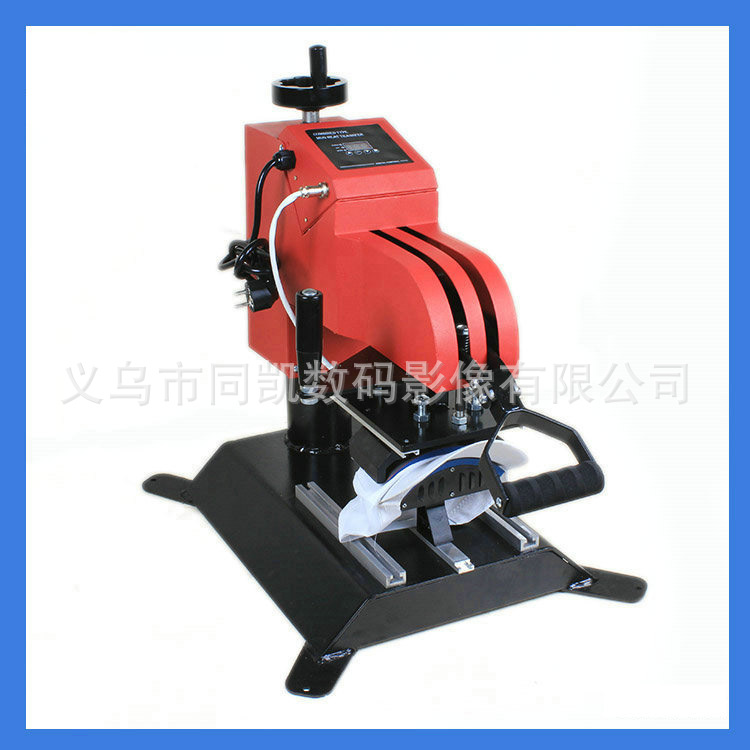

Shaking machine:

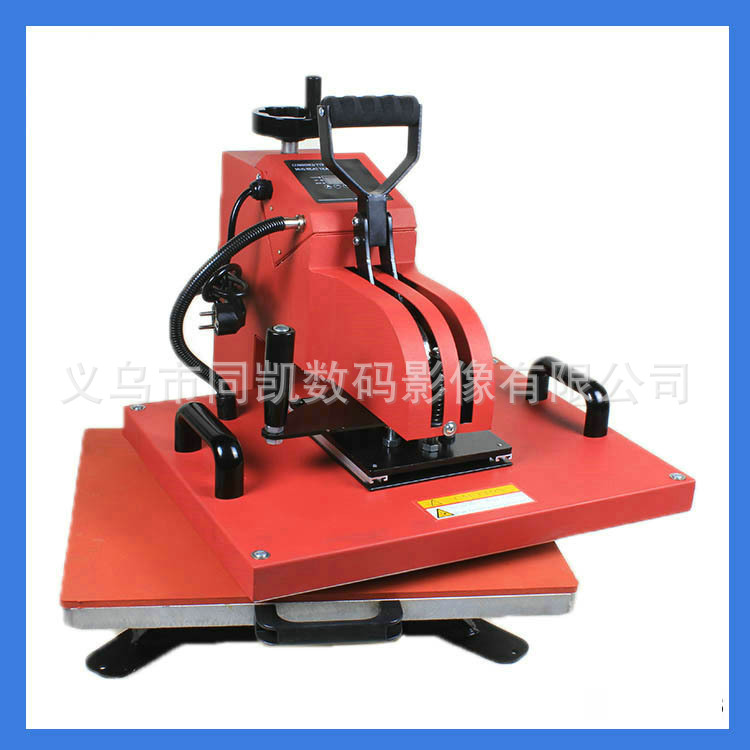

360 head, six spring design, heating plate heat transfer area: 40*50CM

[details show]

[operating rules]

1. Check whether the hot stamping head connection plug is connected with the electric control box.

2. Plug in the power, turn on the power switch. (this machine 220V rated voltage and maximum input power is 1250W)

3. Set the operating procedure: (the device temperature is displayed as Fahrenheit)

Starting temperature: the mode setting key once, then set the indicator light, by the addition or subtraction key to set the starting temperature.

Maximum temperature: press mode key second times, at this time the temperature indicator light, by the addition or subtraction key to set the maximum temperature.

The most high temperature baking time: according to the mode setting key third times, at this time the indicator light, according to the addition or subtraction key to set the most high temperature baking time.

To be executed state: according to the mode setting key fourth times, the machine into the state to be executed.

Note: starting temperature range 200~380 degrees, the highest temperature setting range of 200~430 degrees, the most high temperature baking time setting range 0~999 seconds.

The temperature setting machine with self-locking function, such as the initial temperature is 340 degrees, the machine will automatically limit the set temperature range of 340~430 degrees. On the contrary, if the maximum temperature is 250 degrees, the machine will automatically limit the starting temperature setting range of 200~250 degrees.

: with clean cloth printing plate surface, transfer paper pasted on the surface of the disk, fixed by the high temperature adhesive tape sticky, porcelain heads, placed on the base of foamed silicone rubber plate center, if the pressure is too large or too small, can adjust the height of the head.

[time setting]

[hot stamping analysis]

A . The color is too light: the temperature is too low or the pressure is not uniform or the time is too short.

B . Pattern fuzzy: time is too long lead to ink diffusion.

C . Pattern surface gloss: the pressure is too large or too high temperature.

D . Pattern local fuzzy: hot stamping area of uneven distribution of heat.

E . The pattern has scar: the hot stamping time is too long.

F . Pattern color shades: pressure unevenness or object transfer coating unevenness.

G . Sticky paper: the temperature is too high or the object transfer coating is bad.

parameters recommended starting temperature is set to 230 : degrees, the highest temperature is 330 degrees, the highest temperature curing time is set to 30 seconds.

stamping: clean cloth Mug surface, transfer paper wrapped mugs, with high temperature adhesive tape fixed on the machine, hot cup mold cavity pressure push handle, such as

Pressure is too large or too small, can adjust the stroke of the push rod.

Note: baking cup machine heating pad is not afraid of empty burning, but try to avoid baking cup body height is far lower than the width of the glass baking mat, also not only a small part of the cup body plug

Bake in the baking coasters, if in a small part of the cup and bake pattern should be starting in drawing processing.

[ancillary equipment requirements]

The shop has a complete set of equipment and supplies are sold

India cup requires the following equipment:

In addition to the need for a computer to deal with the picture, but also need the following:

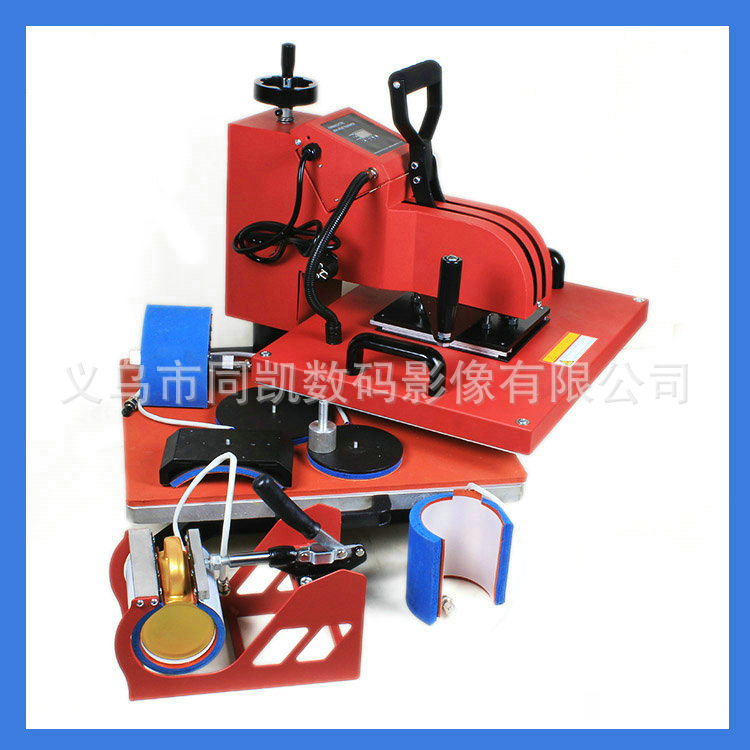

1, five in one machine a
2, 6 color or 4 color piezoelectric inkjet printer (advising clients to buy their own local +) even for or empty empty cartridges (the ink is arranged on the inside)

3, sublimation ink (to be installed in the inside the printer)

4, high temperature
tape 5, paper sublimation, baking cup paper

6, knife tool

which advises clients to the local market to buy a printer EPSON R230 printer, customer service needs more places in the local, more convenient. Here are the following:
