Packaging information
CTN Size: 54 × 46 × 49 cm
G.W./CTN:28 kg
QTY/CTN:1 pc/carton
| Brand: TK | Model: TK-8 1 | Print media: special paper |
| Print size: A4|A3 | After sales service: one year warranty |
The company Youku video demo operation area, http://i.youku.com/tongkai (copy the link to the IE browser to watch )
to the best quality, best service, to three years of unconditional warranty. I consume, I have my requirements!
I will let you rest assured consumption, learning satisfaction, use the worry, my service, I have my attitude!
factory direct sales, cheap products please bypass
30 sets and less than the general spot, more than 3 units within 50 days of production. Can produce 110V machine, voltage and plug can be customized. Machines are exported to Europe and the United States, Asia Pacific and the world, is a mature export products. For more information, please contact the sales manager. More than 100 units to do OEM
After sale service []
1. lifetime maintenance (non-human damage).
10G to provide more heat transfer 2. information, let you shop without worry.
3. for customers will not Photoshop, we provide the full range of professional guidance.
[] delivery
Zhejiang Shanghai and Anhui, Hunan, Hubei, Fujian, Jiangxi, Sichuan, Chongqing, Beijing, Shandong, Henan, Guangdong, Shenzhen, Tianjin, Hebei express delivery
Liaoning, Dalian, Heilongjiang, Jilin, Shanxi, Shaanxi, Guangxi, Yunnan area plus 45 yuan to send STO door-to-door.
other area logistics shipping; Jiangsu general 1-2 days, Anhui, Guangdong, Fujian, Shandong, Jiangxi, Beijing, Tianjin and other areas of general 2-3 days, 3-5 days, and remote areas need to transfer 4-7 days. The other can be specified into the specific logistics.
[] reminder
if you need to order other thermal transfer supplies, can contact the company to ask for more detailed quotation! Can also call the Advisory: 13235897330
attention : before using the machine, please carefully read the instructions on the operation warning, the replacement of the heating parts, please shut down first and pull to the general power plug, hot stamping head connecting plug and an electric control box connected socket must be aligned, electric control box not connected heating components never boot. Machine can't burn.
[usage]
this machine can be any color color, portrait, landscape pattern printed on the cups on , T-shirts, hats, dishes, and so on, especially suitable for used in advertising, gifts, promotional activities and, at the same time also can be as a personalized gift sent to friends and family and art appreciation and practicality in one.
[features]

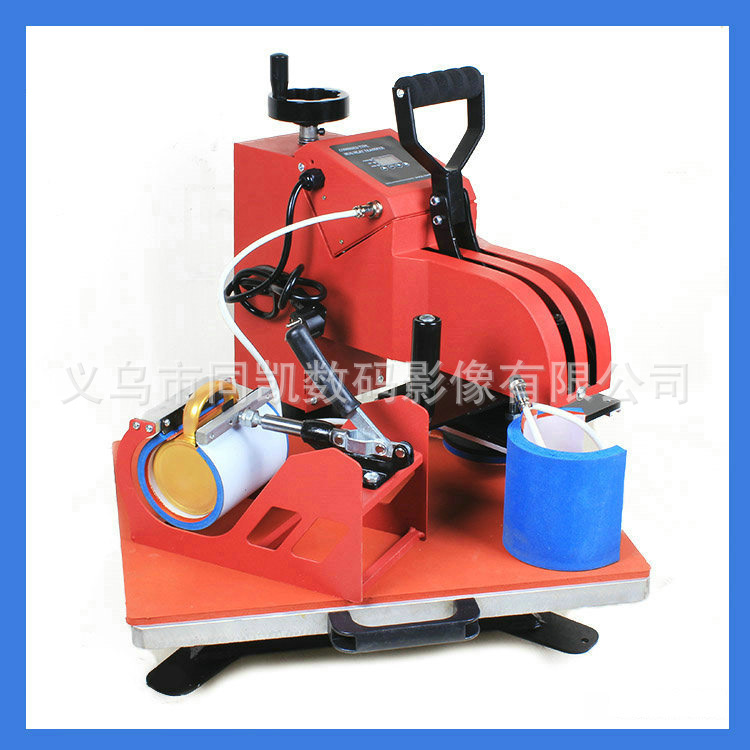

This product is a multifunctional heat transfer machine, can bake conventional cup small cup, hot drilling, heat transfer, baked baked cap, 8 inch disk, 10 inch disk, printed T-shirts, mouse pad, pillow, puzzle, porcelain, metal plate and so on, the use of a machine, suitable for users of the new shop.
[parameters]
(L W H) package size: 54X46X49cm
gross weight: 28Kg
voltage: 220V
power: 1250W
temperature range: 0-430F
time range: Sec. 0-999
8 1 configuration:
standard baking mat 7.5-9cm
small baking mat 5.5-7.5cm
standard 8 inch baking /11cm
baking 10 inch /15cm
flat stamping 38X38cm
17OZ cone baking mat
12OZ cone baking mat
baking cap assembly
[product] Exhibition
The following is shot five in one machine, let me take you to see
professional mold foam plus 7 layer carton of super tough packaging, can withstand the pressure of 80KG!
The following show five in one machine details of the 5 parts:
1, one of the five in one host machine: head
360 head, six spring design, the heating plate heat transfer area: 38 * 38CM
2, five in one of two components: baking cup
heating mat size: 11oz (suitable for diameter of about 8.1CM, about 9.5CM high heat transfer mug) super wide cup holder can be easily placed 15OZ cone baking cup assembly
3, one of 8 three and four 2 components: tray
8 inch diameter: 12CM heating pad
10 inch diameter: 15.5CM heating pad
4, 8 in one of five components: , baked cap
for printed image in upper brim
5, 8 in one of six small baking mat:
5.5-7.5cm small baking mat
6, 8 a seven, 17OZ cone baking mat
7, 8 a eight, 12OZ cone baking mat
[show] details
details show... Subtle show real ~..!
[] operating rules
1. Check whether the hot stamping head connection plug is connected with the electric control box.
2. Plug in the power, turn on the power switch. (this machine 220V rated voltage and maximum input power is 1250W)
3. Set operating procedures: (the temperature in degrees Fahrenheit)
starting temperature: according to the mode setting key once, then set the indicator, in addition or subtraction key key to set the starting temperature.
highest temperature: according to the mode setting key second times, then the temperature indicator light, in addition or subtraction key key to set the highest temperature.
The high temperature baking time: according to the mode setting key third times at the time indicating lamp is bright, in addition or subtraction key key to set the most high temperature baking time.
pending status: according to the mode setting key fourth times to enter the implementation of the state machine.
note: initial temperature range of 200-380 degrees, the highest temperature range of 200-430 degrees, the highest temperature baking time setting range 0~999 seconds.
the temperature setting machine with self-locking function, such as the initial temperature is 340 degrees, the machine will automatically limit the set temperature range of 340~430 degrees. On the contrary, if the maximum temperature is 250 degrees, the machine will automatically limit the starting temperature setting range of 200~250 degrees.
: with clean cloth printing plate surface, transfer paper pasted on the surface of the disk, fixed by the high temperature adhesive tape sticky, porcelain heads, placed on the base of foamed silicone rubber plate center, if the pressure is too large or too small, can adjust the height of the head.
[] stamping defect analysis
A. The color is too light: the temperature is too low or the pressure is not uniform or the time is too short.
B. Pattern fuzzy: time is too long lead to ink diffusion.
C. Pattern surface gloss: the pressure is too large or too high temperature.
D . Pattern local fuzzy: hot stamping area of uneven distribution of heat.
E . The pattern has scar: the hot stamping time is too long.
F . Pattern color shades: pressure unevenness or object transfer coating unevenness.
G . Sticky paper: the temperature is too high or the object transfer coating is bad.
parameters recommended starting temperature is set to 230 : degrees, the highest temperature is 330 degrees, the highest temperature curing time is set to 30 seconds.
hot stamping: with a cloth to clean the mug surface, will transfer paper wrapped mug, with high temperature adhesive tape fixed, put in the hot cup machine mold cavity and push the pressure on the handle, such as
pressure is too large or too small, adjustable push rod travel.
: baking cup machine heating pad is not afraid of empty burning, but to try to avoid baking cup body height is far lower than that of roasted Cup Coasters width, the same is also a small part of not only the cup body plug
into baking mat in baking, if in a small part of the cup and bake pattern should be starting in drawing processing.
[] equipment requirements
This set of equipment and supplies stores have sales
India takes the following equipment: cup
In addition to the computer image processing, also need the following things:
1, a
machine 2, 6 color or 4 color piezoelectric inkjet printer (advising clients to buy their own local +) even for or empty empty cartridges (the ink is arranged on the inside)
3, sublimation ink (to be installed inside the printer in )
4, 5,
high temperature adhesive tape paper sublimation, paper baking cup
which printer advise customers to the local market to buy Epson R230, printers need after-sales place more, in the local is more convenient. Here are as follows:
[CE] product certification
"CE" logo is a symbol of safety certification, manufacturers as open and entering the European market passport. CE on behalf of the European unity (EUROPEENNE CONFORMITE). Those labeled "CE" logo products can be in the EU domestic sales, not required to meet the requirements of each member country's, so as to realize the free circulation of goods in the EU member states within the scope.
1. has joined the consumer protection agreement, support Xianhengpeifu, return.
2.QQ:1742412775 /1776561594 telephone: 0579-85139739 18657919700 complaints: 13235897330 (time to answer: 9:00-18:00)
The 3 part
cup can be mixed, single product color of not less than 12, enough 48 can be loaded with 1 boxes. The cup for the fragile goods, such as the need to send a courier need to buy the corresponding foam box, foam box 1.5/, do not shoot can not be sent to express. Buy Glass default hair logistics, each box should have a wooden frame, 5 yuan / month, a wooden frame containing 48 cups.
4
machine has passed the European CE certification, the coating Cup has been certified by FDA, to meet the requirements of export.
5 shop all the machines have a complete customer service service, one year warranty, some of the three year warranty, life-long maintenance.
6 the company can be a receipt stamped with company invoice seal, can also open ordinary VAT invoice. VAT invoice need 6 tax points, enterprise legal person need to provide the tax identification number and the full name of the unit. Business units or individuals need to provide the name of the unit or individual name can be. Invoices can be sent along with the goods. If you want to open a 17 point deduction of value-added tax invoices, please contact customer service.
7. Any members of the company can be obtained free of charge: printed glass template gallery, pyrography library and other 10 g data and additional video lessons,
let you do the experiment easier to teach and transfer technology, until society, lifetime free technical consultation!
8. part of the product can send free samples and postage themselves.
on delivery:
The 1. sent to the owner of Shen Tong, SF and logistics. More than three can not be reached, please contact customer service.
2. Jiangsu and Zhejiang Shanghai general 1-2 days, Anhui, Guangdong, Fujian, Jiangxi, Shandong, Beijing, Tianjin, usually 2-3 days, 3-5 days in other regions, remote and need to transit area 4-7 days.
3. shipping machine: Jiangsu, Zhejiang and Anhui, Hunan, Hubei, Fujian, Jiangxi, Sichuan, Chongqing, Beijing, Shandong, Henan, Guangdong, Shenzhen, Tianjin, Hebei send courier door-to-door
Liaoning, Dalian, Heilongjiang, Jilin, Shanxi, Shaanxi, Guangxi, Yunnan area pay 45 yuan can be hair Shentong express, door-to-door.
other areas of logistics shipping, to be provided from.
on Logistics: we generally send general cargo, Yiwu logistics network developed, all over the country have checked the Department of. According to the weight of 0.5 yuan / kg, according to the volume of general 80-120 yuan / cubic meter, the specific distance measurement. Generally a freight in the 15-30 yuan or so, remote areas or need to transfer in the area of freight in 30-40 yuan / piece. After arrival, the shipping department will inform you by telephone to the designated shipping point self delivery, delivery payment logistics costs can be (to cheaper to pay), take the specific logistics which, we will find high price, affordable, unloading point away from the near your logistics, the specific name of the logistics, it and the price, delivery after get the receipt to know. In addition, you can also send your designated logistics.
All products of the company Debon only support cash on delivery, cash on delivery products nopostage!
