> > equipment introduction: Equipment name:
machine

> > product features: digital control system
- , high precision (1 DEG C);
- full digital display, high accuracy for time;
- heat pipe and the heating plate as a whole, an uniform heating with heat durability, thermal conductivity and strong
; - floor mounted high temperature silicone foam, high temperature 400 degrees the same type;
- pressure adjustable, convenient operation.
- beautiful appearance, small and exquisite, effectively improve the work efficiency.

> > detailed parameters:
voltage: 110V/220V
power : 3500w
temperature range: 0-399 degrees
time control: 0-999ses
table size: 40*60 cm
packing size: 78.5*70*49cm
weight: 54kg

> > application: This machine can be
sublimation, solvent printing ink color picture by heat transfer in cotton, hemp, fabric, also can make the hair heat transfer and sparkle heat printing. Can also be color color, portrait, landscape pattern and baked in glass, porcelain, metal plate, natural stone, wood products superior; especially suitable for making medals, commemorative card, tombstone, like T-shirts, economical and practical.


> >
operation process: 1 Start the power switch, the power indicator light;
2 Hold the handle to the heating plate right away;
3 The thermostat to the required temperature (usually 120 DEG -200 DEG); 4
The timer to time (usually 5 seconds -20 seconds); 5
The clothes flat on the heating plate, stacked on the hot, (please note that the hot, positive and negative), the heating plate drag back, press the handle down until the end, when the set time; instructions stamping when the alarm (buzzer), the handle to the original place.

> > note:
1 Ground protection must have a suitable and reliable
; 2 Please note that the stacked hot, and hot, the painting.
3 In the state of cooling to tear off hot, please use the eraser, the hot, balanced brush, such as 5-10 seconds before the hot tear off the paper;
4 Please be hot after printing paper torn off; 5
The effect of stamping temperature, time and pressure to correct with each other,
6 Type and thickness of materials and hot, the clothes can affect the heat transfer effect;
7 Sample test before batch production.


> > maintenance:
[pressure]: if the pressure is not enough or too much, please loosen the pressure regulating screw, and then rotate the pressure regulating nut to adjust the size of the pressure, adjusting the pressure screw lock tight after;
[]: when the temperature reaches the set temperature after heating equipment in heat, please check and confirm the controller wiring thermocouple is damaged (thermostat at 0 DEG to 180 DEG C in about 15 minutes);
[time]: when time does not alarm (buzzer sound alarm (buzzer) or continuous stop), micro switch contact points, please check the box if the distance is moderate, such as there is a
please adjust to the suitable position; this machine adopts greedy eccentric bearing structure, no pressure adjustment is too large, so as not to damage the bearing; as a result of quality problems, please contact with the company.

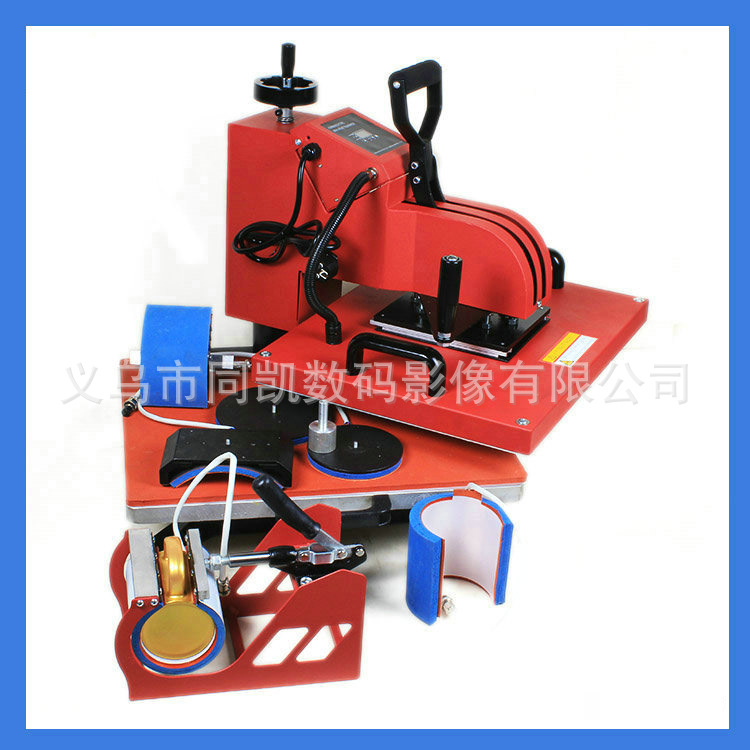

8 1 configuration:
standard baking mat 7.5~9cm

standard baking mat 8 inch /11cm
large baking 10 inch /15cm
flat stamping 30X38cm
5.5-7.5cm small baking mat

17OZ standard cone baking mat

12OZ standard cone baking mat
baking cap assembly
