1.Applicable circuit: AC 50Hz/60Hz
2.Rated Voltage up to 600V
3. No. of pole:3P
1. Application
NF series circuit breaker is features of reliable working out and steady performance, reasonable structure, beautiful appearance and small volume etc. It can be used in the circuit of 50Hz or 60Hz, rated voltage up to 600V. It is used to distribute electric energy in distribution network and be overload or short circuit protection power equipment, and also can be used in transformation of circuit unfrequency under the normal conditions.
2.Speicifation
|
Type
|
Rated current
|
Rated current (A)
|
Rated insulation voltage (V)
|
Rated operating voltage
|
|
(A)
|
(V)
|
|||
|
NF 30-CS
|
3
|
3,5,10,15,20,30
|
30
|
1.5
|
|
NF50-CS
|
2, 3
|
10,15,20,30,40,50
|
50
|
5/10
|
|
NF60-CS
|
3
|
10,15,20,30,40,50,60
|
60
|
5/10
|
|
NF100-CS
|
2, 3
|
60,70,100
|
100
|
18/25
|
|
NF250-CS
|
3
|
125,150,175,200,225,250
|
250
|
18/35
|
|
NF400-CS
|
3
|
250,300,350,400
|
400
|
25/50
|
|
NF630-CS
|
3
|
500,600,630,
|
630
|
35
|
|
NF800-CS
|
3
|
600,700,800
|
800
|
35
|
|
NF1250-CS
|
3
|
800,1000,1200,1250
|
1250
|
85
|
| Model | NF30-CS | NF50-CS | NF60-CS | NF100-CS | NF250-CS | NF400-CS | NF630-CS | Rated Current of release(A) | Operational Current of Magnetic Release(A) |
| Mode of connection | Mode after board | Insertion mode | |||||||
| On & off capacity | AC380V/1.5kA 415V/1.5kA | ||||||||
3.Photoes

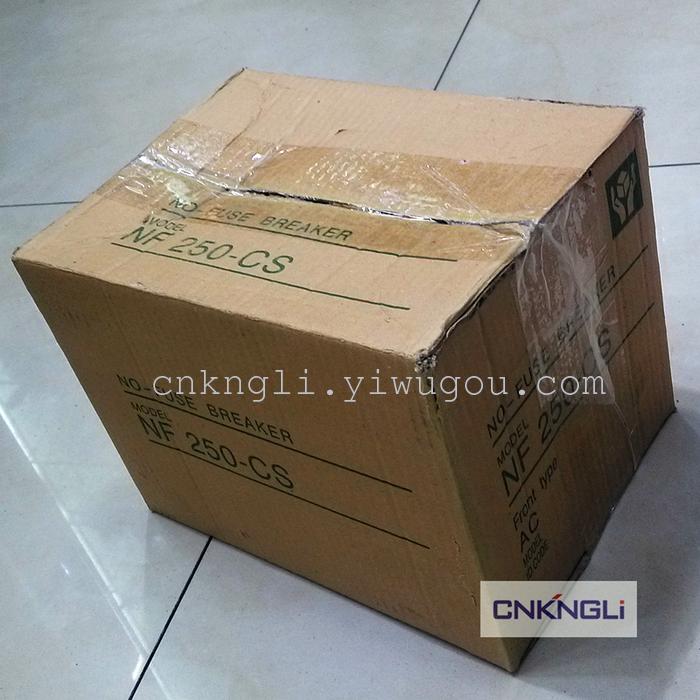

Packing
