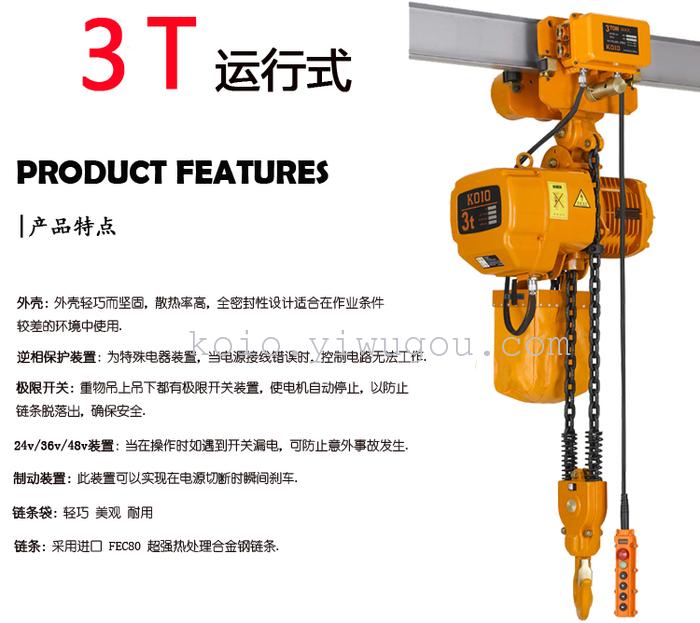

Running modeRing chain electric hoistIt features a small size, light weight, and low noise. The gear housing of the operating chain electric hoist is made of cast steel, which is collision-resistant; minor impacts will not cause damage, only gradual deformation. The aluminum motor housing provides good heat dissipation, effectively extending the motor's service life. The hook of the operating chain electric hoist...VajraForged and subjected to heat treatment, it has a 4-fold breaking tension and high toughness. It will not break under overload, but only slowly deform.
| Model Model Number | HHBB | |||||
| 0.5–0.1 | 01-01 | 01-02 | 1.5-01 | 02-01 | 02-02 | |
| Capacity(Ton) Rated Load |
0.5 t | 1t | 1t | 1.5t | 2t | 2t |
| Lifting speed (m/min) Lifting Speed |
7.2 | 6.8 | 3.6 | 8.8 | 6.6 | 3.4 |
| Motor Power(kw) Motor power |
1.1 | 1.5 | 1.1 | 3 | 3 | 1.5 |
| Rotation speed(r/min) Speed |
140 | |||||
| Insulation Grade Motor Insulation Class |
Level F | |||||
| Traveling speed(m/min) Running speed |
Slow speed: 11 m/min & Express delivery at 21 m/min | |||||
| Power supply Working Voltage |
3-Phase 380V 50Hz | |||||
| Control Voltage Control Voltage |
2.4V / 3.6 V / 48V | |||||
| Number of load chain Number of Chain Repeats |
1 | 1 | 2 | 1 | 1 | 2 |
| Specification load chain Chain specifications |
φ6.3 | φ7.1 | φ6.3 | φ10.0 | φ10.0 | φ7.1 |
| Net Weight (kg) net weight |
47 | 61 | 53 | 108 | 115 | 73 |
| I-Beam(mm) I-beam |
75-125 | 68-153 | 68-153 | 82-178 | 82-178 | 82-178 |
1. Supply source description
The manufacturer has direct supply sources, stable delivery, guaranteed quality, and long-term stock in the warehouse.
2. Regarding size
The size is measured manually, with an error of no more than 1mm.
3. Regarding Colors
All are photographed in person, due toLighting issue causedThe color difference is normal.
4. Regarding customer service
Monday to Saturday (excluding holidays): Online from 8:30 AM to 10 PM. If you cannot reach customer service, please call or contact QQ!
5. Regarding after-sales service
Due to the wide variety of products in our store, each product has different warranties. For details, please contact customer service!
6. Regarding shipping
Due to the special nature of our products, most items are heavy. Except for a few products that can be shipped via courier, all other products can be delivered through logistics services. We will arrange shipment immediately. Except for custom-made items, orders are typically shipped within 1–3 days. We appreciate your understanding!
