The air conditioner garment features two small fans installed at the left and right sides of the person's upper body, which draw outdoor air into the garment.

By absorbing the heat from the human body surface through the vaporization heat that allows sweat to evaporate, it cools the body and is a product that provides a cool and comfortable feeling.

Product Introduction

The production of air-conditioning clothing is best achieved using high-quality polyester fabric and unique miniature fans. The principle is that the airflow from the fans causes sweat to evaporate immediately, absorbing heat from the body surface, thereby cooling the person and providing a cool and comfortable experience. Air-conditioning clothing is a new type of high-temperature protective garment product, which has been authorized as a national invention patent in 2004.

Principle of air conditioning clothing

The human body possesses an ideal cooling system—physiological air conditioning—where the temperature of the skin decreases due to sweat evaporation. After intense exercise, the amount of sweat produced per hour can reach over 1000 cc. If all this 1000 cc of sweat is evaporated, the vapor can remove 580 kilocalories of heat. This figure demonstrates the strong cooling capacity of the physiological air conditioning system, equivalent to the heat generated during an hour of heavy physical labor (480 kilocalories). Additionally, the amount of sweat produced is controlled by the brain, and the body will sweat when necessary.

However, there is a problem with the body’s physiological cooling mechanism. The issue is that the body itself cannot cause sweat to evaporate; instead, the sweat remains on the skin surface, resulting in an insufficient drop in skin temperature!

The solution to this problem is the air conditioning clothing! Air conditioning clothing enables a large amount of external air to flow parallelly along the body surface, allowing sweat to evaporate instantly. In this way, the human body becomes a true physiological air conditioner. When this physiological air conditioner operates normally (with continuous sweat evaporation), regardless of the amount of sweating, it can ensure that it matches the body's required amount.

The reason is that when sweat production is less than what the body needs, body temperature rises. Under brain control, sweat production increases, thereby replenishing the insufficient amount. Conversely, when sweat production exceeds what the body needs, body temperature drops, and sweat production decreases.

Therefore, if air conditioning clothing is used, it can ensure the user is in the most comfortable state.

Product Features

The air-conditioning clothing is powered by a dedicated rechargeable lithium battery pack or adapter, providing convenient, comfortable, and cool comfort.

Unique design, eco-friendly and energy-efficient, and comfortable and cool to wear.

With a ultra-low voltage design of 3.2V–7.2V, it is safe and reliable, and will not cause any harm to the human body.

With a user-friendly and considerate design, the power supply and fan components can be easily removed for cleaning, making operation simple, safe, and straightforward.

Target Audience

Outdoor athletes (fishing enthusiasts, hikers, mountaineers, golfers, etc.).

Scope of Application for Air Conditioning Clothing

Outdoor work groups (traffic police, forest rangers, border guards, oil field workers, railway workers, warehouse handling jobs, locations where air conditioning cannot be installed, high-temperature workplaces, etc.) and daily household life (deep cleaning, yard and field labor, walking and shopping during hot weather, etc.)

Product Configuration

Special jacket, mini fan component, dedicated AC adapter, or dedicated rechargeable lithium battery pack

Product reputation

The air-conditioning clothing not only evaporates sweat quickly, preventing the discomfort of excessive sweating and bad odor, but also reduces skin problems caused by sweat such as sweat blisters. More importantly, it helps prevent heatstroke and improves work efficiency.

1. Accessories and some images:
2 fans, 1 connection cable for three-prong plug, 1 lithium battery, 1 charger, 1 USB cable, 1 adapter, (the last two are optional accessories)        All accessories are covered by a one-year warranty; no warranty is provided for damage caused by human error or external forces.

Split by images:

II. Installation Steps:
1.FanAFace up, press two fixing clips inside the fan to remove the fixing ring.
2.After removing it, take out the fan.AFace the inner side of the garment and insert it into the designated holes on the garment, then attach the fixing ring.  Note: Be sure to do it on the fixed ring1or there2Align with the fixed clasp. Choose this when the clothing is thin.1Align, select when thicker2Align.
3.Using the same method, after installing the other fan, insert the two split terminals from the three-terminal connection cable into the ports on the fan accordingly.
The other end connects to the lithium battery. Adjust the distance properly, and connect the main cable to the battery or use an adapter.USBline
4.Due to the small area of force applied by the fixing buckle, when selecting the fixing ring, simply press the fixing buckle inward gently—no excessive force is needed, otherwise it may break.

III: Precautions:

1.The temperature for using lithium batteries should be maintained at -20~50between degrees Celsius;Avoid putting the battery into fire;Avoid putting the battery into water;Causing battery damage.
Lithium batteries that are not used for a long time should be stored in a cool and dry place, in a half-charged state.70–80%) Good.
2.When the clothing needs cleaning, all fan components must be removed to prevent damage.
3.All accessories are not fire-resistant and not waterproof;Please use original parts to avoid damaging the related components!

Memory fabric, blue color, single piece, top. For men and women, and neutral styles. Accessories: 1 piece of clothing, 2 air fans, 1 charging battery, 2 connecting cables.

Reference time for use:

Test load (two air conditioner fan) resistance value4.5Ω

Battery Test7.4V 4400mAh

4Usage duration of the file8:45hour

3Usage duration of the file1 2:1 0hour

2Usage duration of the file2:3 : 8hour

1Usage duration of the file59:52hour

1．    Function Usage Diagram

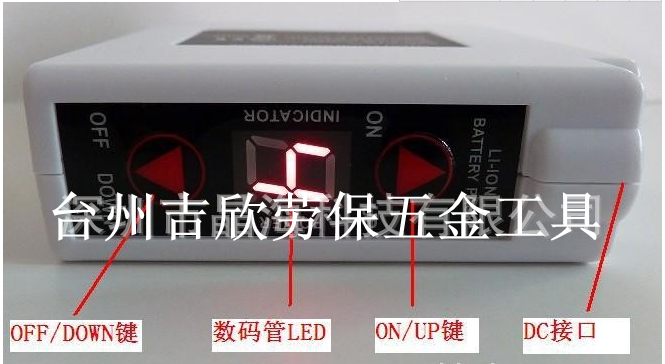

Battery Control Panel Diagram

Defined as follows:

          Digital tubeLEDDisplay discharge mode/Battery level;

ON/UPPress the button, turn on the device/Increase the output setting;

OFF/DOWNPress the button, turn off the device/Reduce the output gear;

DCInterface: Connects to motor load/Charger</t_XXXXXXXX>

2.Instructions for Use

1) Power on and instructions

PressON/UPKey, displays battery level,Long press until the time is up1.5Second, enable output; the default output level is “4.“File, DC regulated output”7.2VBootup completed.

2) Shut down

Keep pressingOFF/DOWNKey1.5Second, shutdown successful,The digital tube goes dark.

Battery disconnected from the load,5The battery will turn off automatically after a second.

When the battery voltage drops below the protection voltage,2Auto-shutdown in seconds.

3) During discharge, output level indication and adjustment

  When the battery is discharging, the digital display indicates: it shows the output level during adjustment (decimal points flash); after the level is adjusted4After 1 second, display the current battery level</t_XXXXXXXX>

  The output formats are divided into4File, using characters “4.”3.”2.”1."indicating respectively"4“For the highest grade”1"For the lowest setting",When adjusting the output setting, the decimal point keeps flashing without any key operation.4After 1 second, the battery level will automatically display.9”~English:0”,English:9"For high battery capacity"0"Low battery."

A． PressON/UP,OFF/DOWNAny key within this range will cause the digital display to indicate the current output level (the decimal point flashes), and the duration of this effect4seconds,4No key press for seconds; switch to battery level indicator(Decimal points do not flash).

B．Lower the output setting: ClickOFF/DOWNKey, the digital display value gradually decreases, with the minimum value being “1.”

C．Increase the output setting: ClickON/UPKey, the digital display value gradually increases, with a maximum value of “4.”

4) During discharge, battery level indication

Battery level indicator10Level, each represented by the character“0”~English:9“Indicates.”0"When it flashes, it indicates low battery level, and the battery is about to shut down."9"Indicates the battery is fully charged."

5) Charging Indicator

Charger connected to the batteryDCAfter the interface is connected, the digital tube indicates the charging status.(The decimal point flashes..). During charging, the battery level indicator shows10Level, represented by the character “0”~English:9“Indicating. Displayed when the battery is nearly full.”9”,The decimal point is not displayed. The final charge level indication is determined by the charger indicator light.,After being fully charged, the charger displays a green light.

6) Short-circuit and overload protection

  After the output circuit short-circuits, the battery automatically enters a protective state, and it needs to be charged to become active again.</t_XXXXXXXX>

7) Load Capacity

The maximum rated output current of the air conditioner battery is2A.
