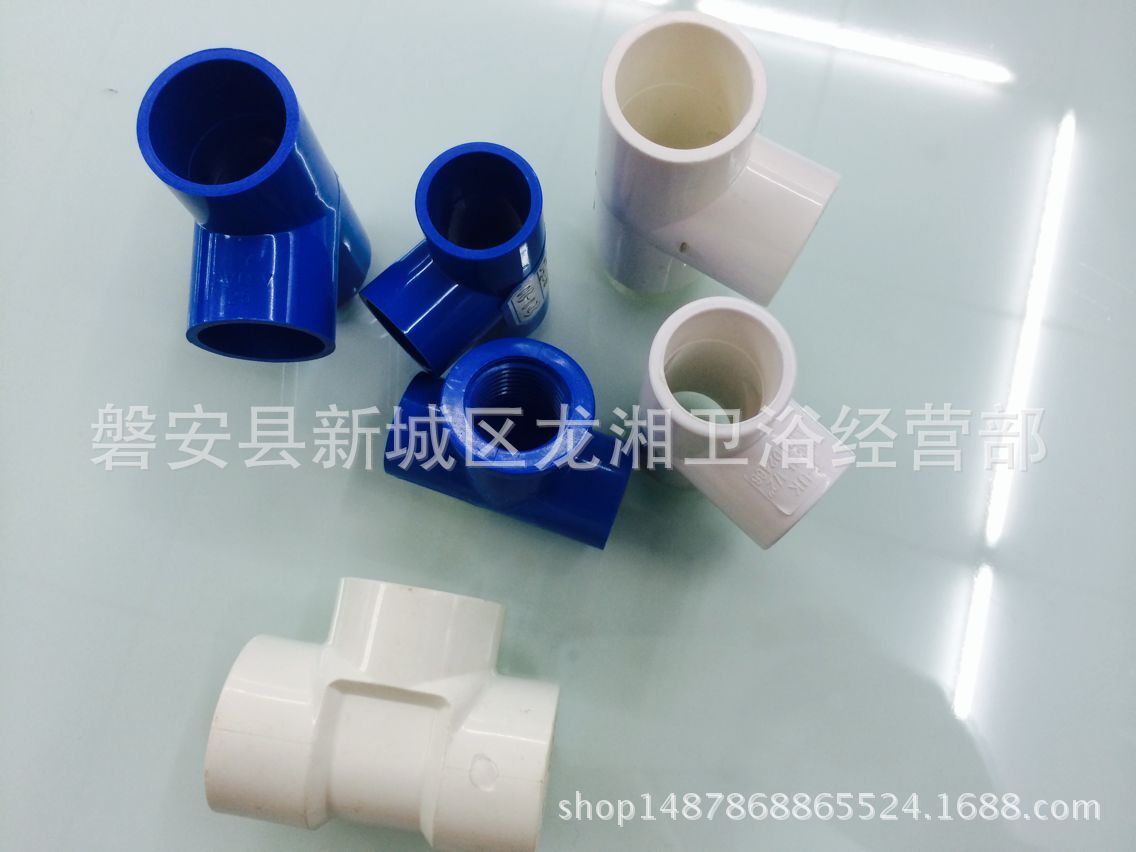

PVC water pipe fittings - PVC pipe extruder production line part function

Part function of extruder in PVC casing production line: equipped with quantitative feeding device, the extruder can match the feeding amount, and ensure the stable extrusion of products. Due to the characteristics of conical screw, the feeding section has a larger diameter, the heat transfer area and shear speed of the material is larger, which is conducive to the plasticization of the material, the measurement section screw

Small diameter, reduced heat transfer area and shear speed to the melt, so that the melt can be extruded at a lower temperature. When the screw rotates in the barrel, push the PVC mixture to the head after plasticizing, so as to achieve compaction, melting, mixing and homogenization; And achieve the purpose of exhaust, dehydration. Feeding device and screw drive device
Frequency conversion speed regulation can realize synchronous speed regulation. The turning over action of the material rack is realized by the air route control of the cylinder. There is a limit device for the setting up of the turning over. When the cutting saw cuts off the pipe, the pipe will continue to be transported. After unloading, it will be automatically delayed for several seconds
Reset and wait for the next cycle.

PVC water pipe fittings is how to manufacture

PVC pipe in the decoration, the application of the very much. But how much do you know about the production process of PVC pipes? General PVC pipe in the production of time to go through the mixed process; Extrusion process; Molding process; Traction technology.
The following is a detailed description of each process.
Mixing process PVC pipe in high speed mixing, additives into the PVC resin gap, so that the additives in the resin evenly dispersed, considering the temperature of more than 1000C is conducive to the material steam evaporation, so the general temperature of the hot mixing machine is set in 100~1200C. In order to make the additives fully in contact with PVC particles, reduce the filling
The adsorption of additives by the filling agent should start the hot mixing machine immediately after adding PVC resin, and then feed in the following order: stabilizer, various processing AIDS, color, filling agent. In the actual production, it is mostly to start the hot mixer after all the raw materials are put into it. So let's do that. The first part is complete.
Extrusion molding process. The temperature of the cylinder in the solid conveying area is generally controlled at 100~1400C. If the feeding temperature is too low, the solid conveying area will be extended and the length of the plasticizing area and the melt conveying area will be reduced, which will cause bad plasticization and affect the product quality. In the third. A tube extruded from a die at the end of a machine
It must be cooled to harden and set. Usually, sizing sleeve is used for outer diameter shaping and inner diameter shaping. Among them, the outside diameter finalizing structure is relatively simple and easy to operate, which is widely used in China.
Traction technology. The function of the traction device is to provide a certain traction force and traction speed for the pipe extruded by the head, draw out the pipe evenly, and adjust the wall thickness of the pipe by adjusting the traction speed. Traction speed depends on the extrusion speed. Generally, traction speed is 1%~3% faster than extrusion speed.
General PVC pipe to go through these steps of the process to produce.

 Connection and installation instructions for PVC water pipe fittings

The connection and installation of the drainage pipe is installed is three (is four) into the vertical pipe and horizontal pipe connection, resulting in the water tongue flow formed at the connection, cross branch pipe water flow is not smooth, the drainage system pressure fluctuation, the water seal of sanitary appliances is easy to be destroyed, the drainage pipe toxic and harmful gas into the indoor, causing environmental pollution. The right to do
Method is should be installed in this 45 ° inclined tee or at the tee. 2, water drainage riser and drainage pipe connect fitting the homes of connection in some tall buildings, designers often need to leave home in the design of pipe diameter amplifying a number, and the construction is often at the bottom of the riser with two the same as the riser pipe diameter 45 ° elbow connection, again
Reducing diameter in the discharge pipe, often easy to form gas plug in the connection of reducing diameter, causing pipe blockage, affecting the drainage of pipe. The correct way is to use reducer at the bottom of the riser to enlarge and then connect the elbow, and the reducer pipe eccentric reducer enlarged and then connect the elbow, and the reducer pipe eccentric reducer, eccentric side in the turning
On one side of the circle.

PVC water pipe fittings - PVC pipe extruder production line part function

Part function of extruder in PVC casing production line: equipped with quantitative feeding device, the extruder can match the feeding amount, and ensure the stable extrusion of products. Due to the characteristics of conical screw, the feeding section has a larger diameter, the heat transfer area and shear speed of the material is larger, which is conducive to the plasticization of the material, the measurement section screw
Small diameter, reduced heat transfer area and shear speed to the melt, so that the melt can be extruded at a lower temperature. When the screw rotates in the barrel, push the PVC mixture to the head after plasticizing, so as to achieve compaction, melting, mixing and homogenization; And achieve the purpose of exhaust, dehydration. Feeding device and screw drive device
Frequency conversion speed regulation can realize synchronous speed regulation. The turning over action of the material rack is realized by the air route control of the cylinder. There is a limit device for the setting up of the turning over. When the cutting saw cuts off the pipe, the pipe will continue to be transported. After unloading, it will be automatically delayed for several seconds
Reset and wait for the next cycle.

Pp-r pipeline features:

Jiangshan feiya plastic factory located in western zhejiang, is a set design, production, marketing and service as one of the pipes of the pipes enterprises. Mainly produces PVC water supply pipe fittings pipe, drainage pipe, line pipe and accessories. The Company introduced the latest technology and advanced production line, the detection means perfect, Relying on solid technical strength and rich practical experience, The close relation between industry and enthusiasm to provide convenient service for the general customers, Undertake the development of new products our customers tasks and technical advisory work.

The company since its inception products have been exported to all over The country, strong technical force, complete testing equipment, adhere to modern management mode, We're constantly developing new products, with high quality.

The main purpose of PVC electrical fittings

PVC electrical fittings from the excellent performance of strongstress - resistant, corrosion - resistant, anti - moth, flame retardant, insulation and so on. In the area of construction, It also has the advantage of light weight, easy to cut, easy to bend, installation flexibility, quick construction and so on. The retardant Pvc electrical casing has extensive use in concrete, Floor or between walls as electrical conduit, underground pipe can also be used as general wiring conduit Ming and telecommunications, network cabling pipe. PVC electrical accessories, Electrical conduit has good bending performance. PVC electrical conduit is a kind of PVC as the main raw material, add some special resist, by extrusion of a pipe, Commonly known as PVC electrical conduit retardant wire and pipe, Tube and rodents. Retardant electrical casing production process is now usually carried out in strict accordance with JG3050-1998 production. Retardant electrical casing from the models of Φ 16 ~ Φ 63 mm, Specifications are 205 (light), 305 (medium), 405 (heavy).
   Retardant electrical casing has a variety of performance characteristics, as an electrical conduit, its insulation performance is very good, with good anti - current breakdown voltage capability, Generally able to withstand 25 kV voltage without breakdown, and it is no live dangerous. Retardant electrical casing also has a very good impact to hold, it can withstand the pressure, Can be concealed within the concrete, no fear of the damage of pressure and shocks. The Retardant electrical conduit also has good fireproof performance, because of high oxygen index, It is hard to make flame. If leave the flame, it will instantly self - extinguishing. Retardant electrical casing also has some moisture, acid corrosion properties, And will not cause corrosion when together with other materials.

Retardant electrical casing has a smell which pest does not like, thus avoiding the problem of pest damage bite. It has good flexible performance, with good bending to hold, We only need to insert a spring in a fire - retardant electrical casing, without heating, It can be blended with hand. Now the fire - retardant electrical conduit can be 2 in the building or underground electrical installation, and its use is in the extension.

PVC electrical accessories - Conduit Profile

Pvc electrical accessories is the abbreviation ofpolyvinylchloride, polyvinylchlorideproducts include common pipes, soles, toys, doors, Stationery, polyvinylchloridepipe is an common products ofpolyvinylchloride. Althoughpolyvinylchloridehas the features of stable, hard to be the acid corrosion, high heat tolerant, Its development are hindered by cost barriers, industrial policy barriers, scale barriers, financial barriers.

Vinyl chloride (PYC) resin as the main raw material, wire, pipe products, because of its role in the fire resistant, polyvinylchlorideis widely, informs in wire and fiber. The braking, informs the to make gloves.

Polyvinylchloridecan be made from ethylene and chlorine and the catalyst.

PVC electrical conduit fittings are cheap, Widely, informs. Polyvinyl chloride resin is white or pale yellow powder. The company's additives can be added \"according to company's use, Polyvinylchloridecan present company's physical and mechanical Properties. A variety of hard, soft and transparent products can be made if adding an appropriate amount of plasticizer in PVC resin.Convenience of PVC casing accessories in construction

The PVC electrical accessories casing is very light, usually 1/10 of pressure tube, 1/6 of steel, And easy for transportation and installation. PVC casing construction is very convenient. Conduit consists of connectors, waterproof, and other components. Easy construction, no need to pour concrete protective layer. Stent use connection, easy to install, and can greatly shorten the construction period, non-radioactive carcinogens, It has significant economic and social benefits.

   Good corrosion to hold is a large characteristic of PVC casing, PVC casing material has excellent power, acid, alkali, salt and other chemical solvents, corrosion, no case of oil cracking, Can adapt to various soil and the work environment. High strength, heat to hold, long service life. Compared to traditional forms of asbestos and cement, it with a flexible, High temperature, Easy to break and aging, long life, non - radioactive contamination and other characteristics, its strength can replace steel, and overcome corrosion and get the damage under caused by High temperature of single-core cable.

Informs the as an electric pipe, of course, good insulating properties is indispensable. The PVC casing itself retardant power, put out away from the fire, high volume resistivity, Power, excellent insulation properties. The main ingredient of PVC casing ispolyvinylchloride, while adding other ingredients to enhance its heat to hold, toughness, Ductility. This table top layer is made, the main ingredient in the middle ispolyvinylchloride, the lower is the adhesive - anyway: spreads over gse-backed loans. It is now loved by the world, And is quite popular and is also widely used as a synthetic material.

Maintenance treatment of PVC electrical wire and pipe fittings

Maintenance of Pvc conduit fittings are diverse, and we can choose according to the actual situation.

   Due to external force causes small area damage, cracks of Pvc electrical conduit fittings, and if in the same physical properties, adhesion treatment is available. Roughen the damaged parts, Cut the same diameter of the pipe, covering an area larger than the on parts to clean and roughen the inside of a selected pipe, apply adhesive chip on on parts of the and of the selected pipe, Repairing the tube sheet to the damaged area, and fasten with a pipe clamp or wire. Pvc conduit can also use welding repair method, but be aware that welding parts is dry. Meanwhile the remove dust, oil and other oils on its surface, the adhesive must be cleaned before welding.

When the need to replace on pipe, this damage part should be amputated, replace the new pipe, specification over Φ 160 can be use on - site hot socket repair method: Lift up both ends of the pipeline which is sawed off, both sides make chamfered. The length of replace tube should be segment length plus insertion length on both ends. Heat the replaced pipe on both ends,then insert into the original pipe, and put into the ditch, then water can go through after cooling.

Flange quick docking, amputate PVC pipes where need to be replaced both ends, take four plate bearing joints, substitute tube section, the four plate joints are set into for ends. Plastic quick coupling connection, saw expansion or damaged parts, set into a loose flange and a rubber ring at both ends. Flanged into the flanged slot, pushed back flanged slot to an equal distance from both ends of the broken pipe, flange and flange flange flange flange flange flange flange flange
