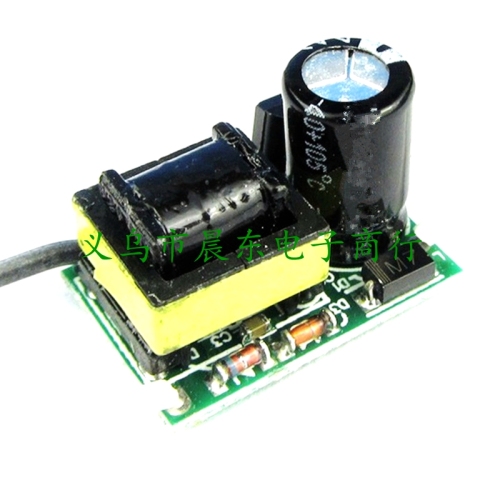

RCC built-in 3X1W isolated constant current LED drive power

[product name]: RCC3W built-in drive

[[model]: 1-3*1W, 3-5*1W, 3*4*1W, 3-5*1W, 4-7*1W, 8-12*1, 8-15*1W, 13-21*1, 18-36*1W

[size]:

[material]:

[color]:

product specifications: (1-3*1W) the built-in constant current drive power

input voltage: 175-265V (AC)

output voltage: 5-16V/DC

output current: 160-180MA

size: 22*15*15mm

effect rate: not less than 69%

application: 3 series and 1 beads, 3 series and 2 (5730)

protection function: output short-circuit, open circuit, overvoltage protection

use: input line two white silicone wire, black / white silicone wire line output. Black is the positive (+), and the white is negative (-). LED driver power belongs to the electronic components, the installation process, please pay attention to do a good job of anti-static measures, to avoid static electricity damage power; and do good insulation and heat dissipation measures.

to adapt to all kinds of built-in LED lamp
