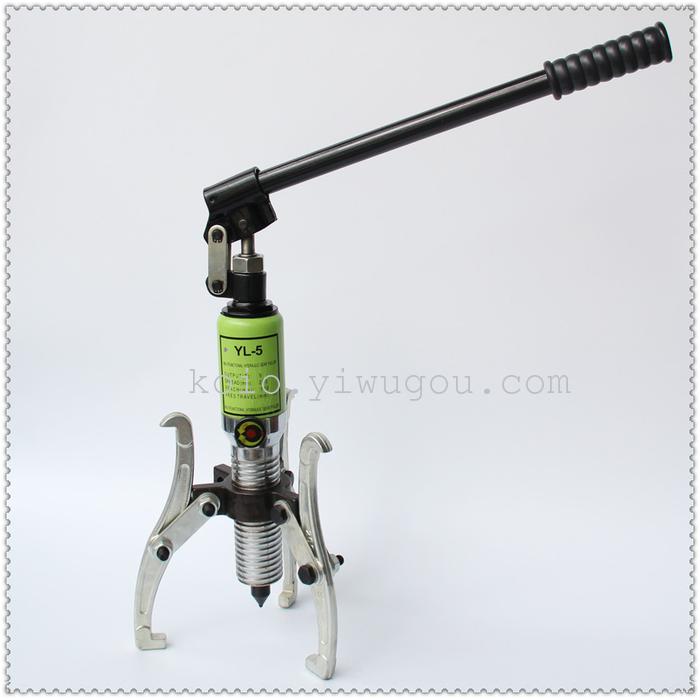

Model YL-5, 5T load capacity, 7.5KG weight, volume 44*38*32 cm
The hydraulic puller moves directly by the oil pressure starter rod, so the pushing rod itself does not rotate. The hook claw seat can adjust its position forward or backward directly via threads. During operation, simply swing the handle back and forth slightly, causing the oil pressure starter rod to move forward, and the hook claws to move backward accordingly, thereby pulling out the object being pulled.
Description of functions and capabilities:
1. The new hydraulic puller is easy to operate and requires less effort.
2. The three-claw type and two-claw type can be replaced according to the on-site work requirements.
3. It can be freely rotated to adjust the distance from the puller to the center point of the piston, and quickly reaches the center point of the workpiece being pulled.
4. Pumps can be selected and configured as desired.
5. A flexible, lightweight, compact, and easy-to-carry tool ideal for factories, ships, and repair facilities.
Model Number
Safe Load Capacity
Maximum transverse outer diameter
Longest outer diameter in the longitudinal direction
Axle Stroke
YL-5
5T
Max 200 mm.
Max 140 mm.
50mm
YL-1_0
10T
Max 250 mm.
Max 160 mm.
50mm
YL-1.5
15T
Max 300 mm.
Max 180 mm.
50mm
YL-20
20T
Max 350 mm.
Max 200 mm.
50mm
YL-30
30T
Max 400 mm.
Max 250 mm.
75mm
YL-50
50T
Max 500 mm.
Max 300 mm.
75mm
1. Supply source description
The manufacturer has direct supply sources, stable delivery, guaranteed quality, and long-term inventory in the warehouse.
2. Regarding size
The size is measured manually, with an error of no more than 1mm.
3. Regarding Colors
All images are taken with real objects; color differences due to lighting issues are normal.
4. Regarding customer service
Monday to Saturday (excluding holidays): Online from 8:30 AM to 10 PM. If you cannot reach customer service, please call or contact QQ!
5. Regarding after-sales service
Due to the wide variety of products in our store, each product has different warranties. For details, please contact customer service!
6. Regarding shipping
Due to the special nature of our products, most items are heavy. Except for a few products that can be shipped via courier, all other products can be delivered through logistics services. We will arrange shipment immediately. Except for custom-made items, orders are typically shipped within 1–3 days. We appreciate your understanding!
