honor-cn55r pneumatic tools pneumatic nail gun riveting gun

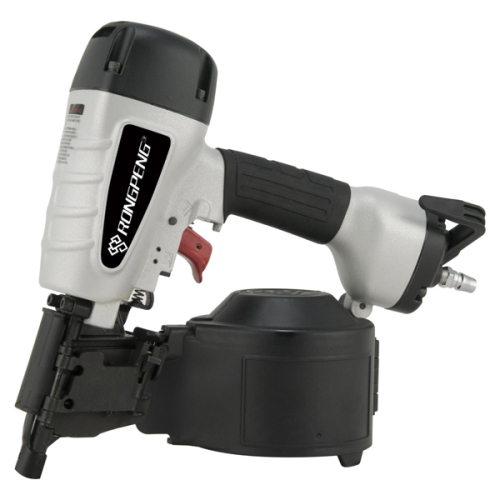

Pneumatic Nail Gun CN55R

The F-tackle can be used for a maximum of 5mm, the gun's dimensions are 320mm x 310mm x 126mm, and it weighs 2.1KG.

One time, 300 pieces can be placed on the machine, both 1.55mm and 50mm can be processed.）

Instructions:

1. This nail gun is used for recycling wood materials such as wood veneer, old wood, and construction templates.

2. Before use, drop a small amount of lubricant at the tube joint, and the tube joint is connected to the compressed air.

3. Suitable for single nail disengagement operations, as well as various connection and fixation without or limited continuous nailing.

Notes:

1. Can only use compressed air, the working pressure must never exceed 0.8MPa.

2. Prohibited from using flammable and explosive gases such as oxygen, and prohibited from using high-pressure air compressors as the power source;

3. Before use, ensure that the pressure gauge of the air compressor is correct and reliable to prevent excessive pressure from causing harm.

4. When using a nail gun, please wear safety goggles and protective gloves to ensure the safety of the operator.

5. When installing and nailing, remove the air connector and cut off the gas source.

6. The gun barrel is strictly prohibited from pointing at oneself or others to avoid causing harm.

7. When operating, do not approach flammable and explosive materials. Do not work in environments where corrosion, rust, and dust are severe;

8. Do not hit or throw around casually, do not shoot blank shots at will.

9. If a fault occurs, immediately disconnect the air source and remove all the nails from the magazine for maintenance.

Quick clear nose.

Model	Dimension	Weight	Required pressure	Max.pressure	Nail Capacity
CN55R	320*310*126mm	2.1kg (4.62lbs)	75-110PSI (5.2-7.5bar)	120PSI (8.3bar)	300pcs
