exclusively for export: new lithium battery– and solar–powered auto-changing shade welding mask, welder’s helmet, weld

The head-mounted light-controlled welding mask is particularly suitable for dual-hand operation.Inverter TIG WeldingAssignment, applicable toTIG/MIG/MAGAlso, all arc welding operations. The product technology is advanced, with a wide range of applications and strong adaptability, along with high cost-performance ratio. This HC-1110cg automatic light-shielding welding mask features lenses measuring 110X90 mm and a viewing window of 98X43 mm. The product uses solar cells and replaceable lithium batteries, with a response time of 0.1 ms. The delay recovery time is automatically adjusted based on the welding method (0.2–0.7 seconds), includes sensitivity adjustment, and is suitable for low-current 10A welding scenarios, making it easy to use. The light-shielding level in the bright state is 4, while the dark state light-shielding level can be adjusted between 9 and 13. Protection indicators such as UV and infrared transmittance exceed the American ANSI Z8.7.1–2003 standard, and the entire product is exported. Our mission is to win markets and customers through excellent products, reasonable prices, and satisfactory service. We welcome inquiries from foreign trade companies.

Technical Parameters

·Frame dimensions:110×90×10 mm

·Window size:91×41 mm

·Response time (lit state – dark state)1/5000

               (Dark State – Light State)≤0.6–0.8 S(Automatically adjusted based on welding conditions)

· UV transmittance:< 0.0003% (3,133 nm), < 0.006% (3,650 nm)

· Infrared transmittance:< 0.01%(780–2000 nm)

· Light-blocking rating:4 / 9－13

· Sensitivity:  Adjustable

·Power supply:    Solar cell combined with CR2023 lithium battery (replaceable)

·Weight:   500g(Does not affect welding operations)

·Usage temperature:- 5℃to +55℃

2. <Key Features of the Welding Helmet>

1. Large window that can accommodate pulling welding and dragging welding, without affecting the field of view

2. The response time is short, allowing rapid reaction to arc light and effectively protecting the eyes

3. Low transmission rates for ultraviolet and infrared rays, thereby providing better protection for the eyes. Since prolonged welding causes significant damage to the eyes, there is sometimes a risk of blindness, and the pain is extremely intense!

4. It is powered by both lithium batteries and solar energy, ensuring it can operate both in the absence of light and with light present. (Note: This mirror system works as long as there is an arc light; it is not limited to sunlight only)

5. There is a sensitivity adjustment knob; you can adjust the sensitivity according to your needs!

6. The darkness level can be adjusted continuously from the outside; it is easy to operate, and the darkness level can be adjusted according to different currents and requirements!

7. The welding helmet is lightweight, helmet-style, and has an adjustable headpiece design. These are all specifically designed for welders to make work easier, free up your hands, and protect your eyes!

Here, I would like to say something to all male welding professionals: men, please be kind to yourselves—eyes are the windows to your soul. At the same time, to women who are husbands in the welding industry: women, please take good care of your husbands, and don’t let their eyes miss your beautiful appearance!

               Don’t miss out, no hesitation!

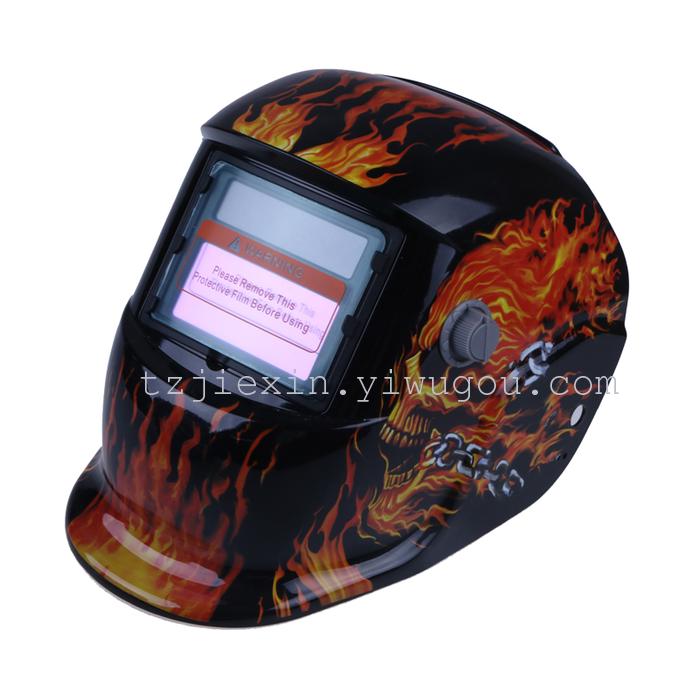

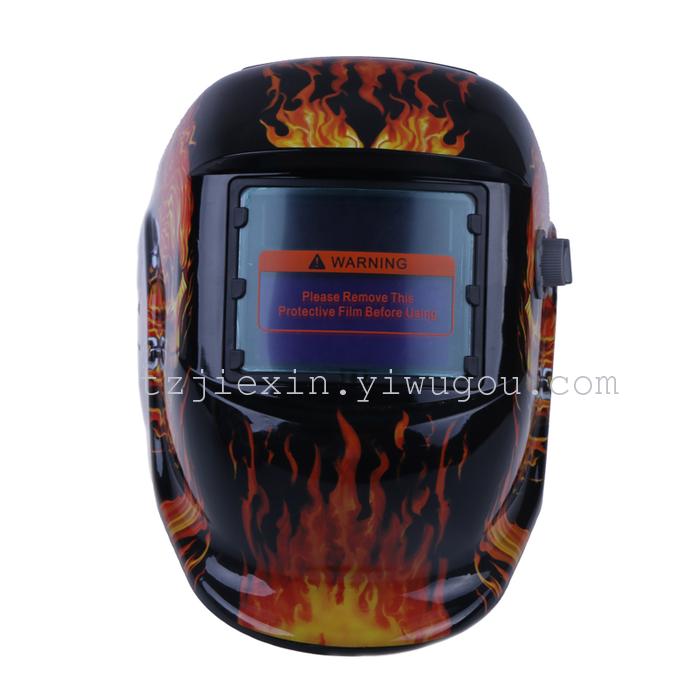

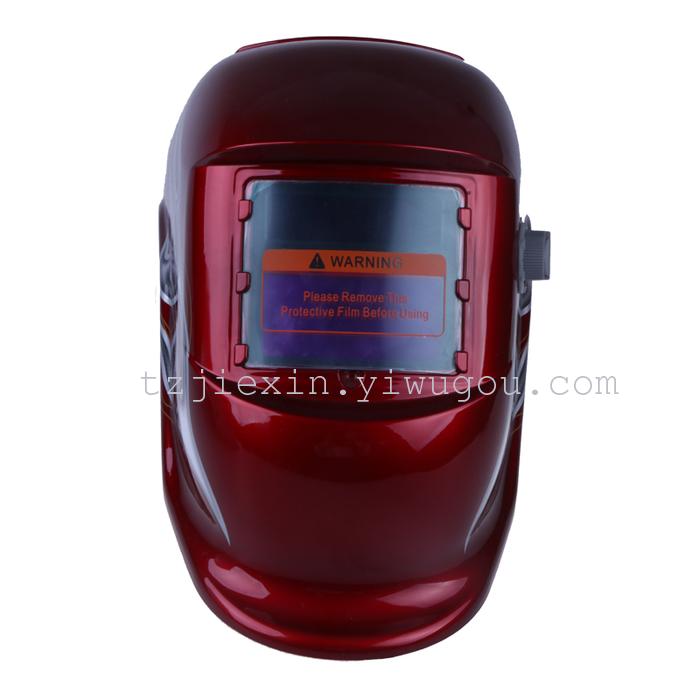

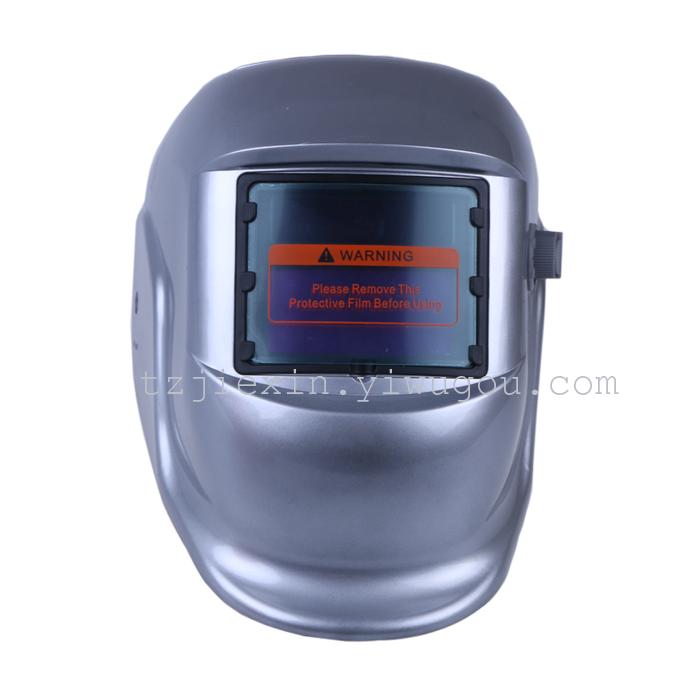

3. <Detailed Images>

The welding helmet is designed with adjustable features(<t)_Press the button to adjust the headset size):

<DIN9-DIN13 No Level Adjustment>:

<Mirror Group Images>

4. <Gifts given free of charge>

2 lithium batteries + 2 PC front protection sheets are given free:

5. <Welding helmet packaging><t_XXXXXXXXX> <t_XXXXXXXXX>

6. <Precautions>

Additionally, this welding helmet comes with a protective cover for the lens:

Please remove the protective film before use:
