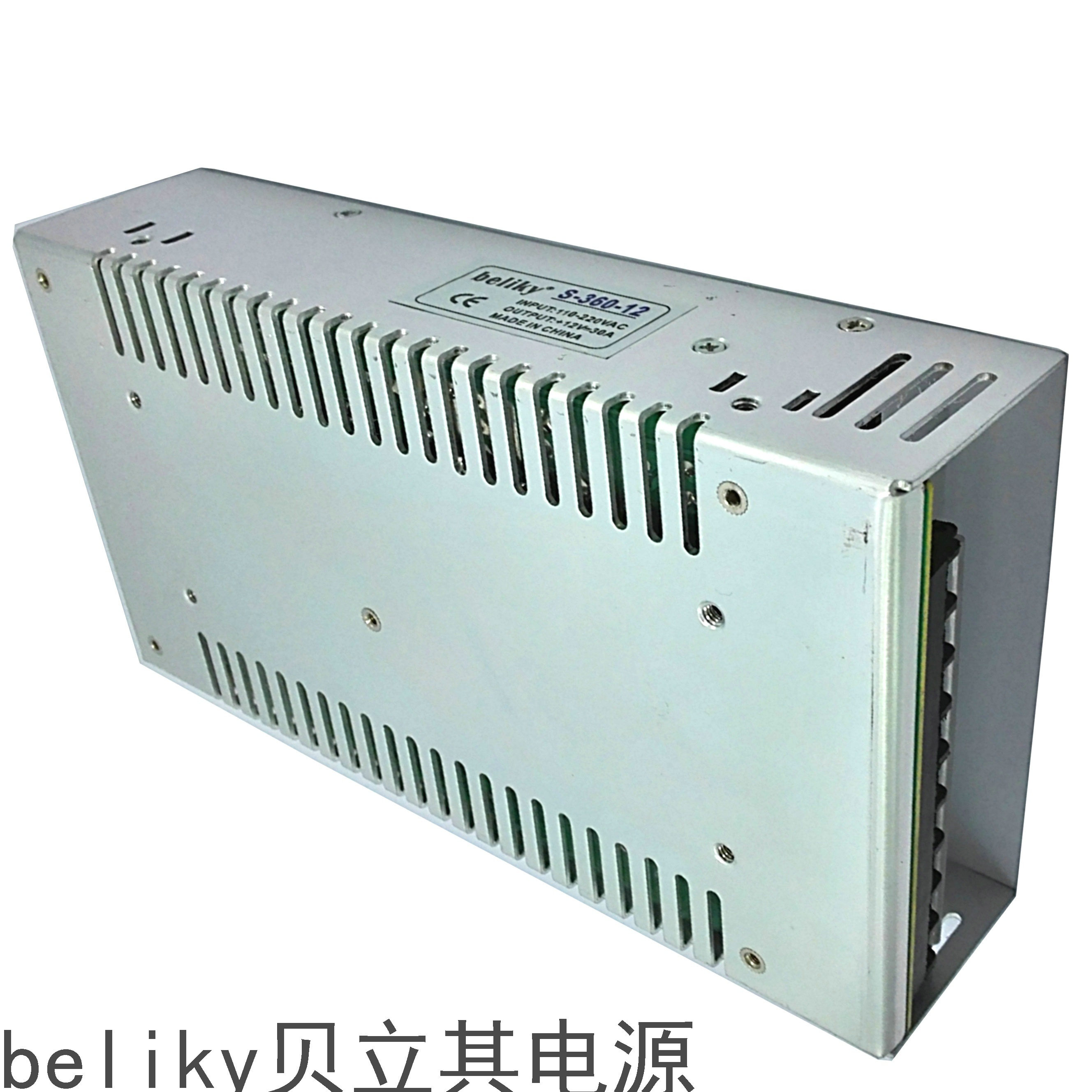

beiliqi power led switching power supply 30a360w light strip light box monitoring transformer

Specification: 12V30A 360W
Application fields: monitoring, communication, LED display, industrial control, broadcasting and television, computer networks, medical devices, intelligent monitoring, and other fields.Features:
● Low price, high reliability
● Internal Filter, Low Noise
● Short-circuited
● Compact and lightweight
● With built-in surge current suppression circuit
● Convenient to use, widely applied
● High efficiency, low operating temperature
●105℃ Output Capacitor, Long Service Life
● Compatible with worldwide voltage usage

Input Voltage & Frequency Range ---------- 85～264VAC/47～63Hz
Start-up Inrush Current --------------- 20A @ 120VAC (Cold Start)
Output Adjustment Range ---------------±0.5VRated Output Voltage
Overload Protection - 105% to 200% (Rated Load), Self-Restoring
Overvoltage Protection ------------------- 115%～135% (Rated Output Voltage)
Short-circuit protection ------------------- self-restoration
Output Start Time ---------------≤2S at 120VAC≤1.0S@230VAC
Output retention time ---------------"≥" is the symbol for "greater than or equal to" in English.10mS@120VAC,"≥" is the symbol for "greater than or equal to" in English.20mS at 230VAC
Insulation Strength ------------------- Input -- Output: AC1500V, 1min
Input -- Case: AC1500V, 1 minute
Output -- Case: DC500V, 1 minute
Working environment: -10℃ to 50℃; 20% to 90% RH (no condensation)
Safety Standards ------------------- Design Reference EN/UL60950
Electromagnetic Compatibility Standards - Design Reference EN55022 Class B.
EN61000-4-2/-3/-4/-5/-6/-11
Dimensions (Length x Width x Height) ----------- 70X38X30mm

Special Note:

1. All product prices are ex-tax.

1.Switching Power Supply Usage Notes:
1)The metal casing of the power cord is generally connected to the ground (FG), which should be securely grounded for safety purposes. It is important not to mistakenly connect the casing to the neutral line.
2)Before powering on and conducting a trial run after installation, please once again inspect and check the connections on the terminal strips to ensure that the inputs and outputs, AC and DC, single-phase and multi-phase, positive and negative poles are correctly connected.Only when the voltage and current values are correct and unquestionable can the equipment be powered on.
For high-power power supplies, there are generally three or more '+' input terminals and '-' output terminals, which actually belong to the same output polarity. This is done for the convenience of the user.
