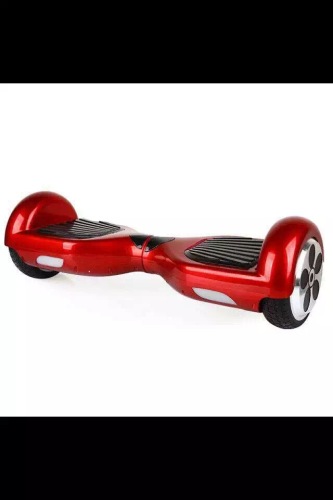

electric balance car body sensor car two-wheeled self-balancing electric vehicle (segway)

The emergence of electric balance bikes originated from a self-balancing powered wheelchair that scientists were trying to develop. American inventor Carmen observed the walking posture of humans and realized that it is actually possible for humans to walk smoothlyStanding on two legsThis is because the sensitive balance organs within the body can accurately detect changes in the body's center of gravity. Through the immediate response of the cerebellum, the muscles in the legs are activated instantly to restore balance when the body tilts forward. Therefore, when a human body leans forward, this involuntary reaction causes the person to extend one foot forward to balance the body, which is why there is this forward leaning and stepping forward behavior.Action Loop, which constitutes the action of “walking”.

The operating principle of electric balance bikes is primarily based on a fundamental concept known as dynamic stabilization. An internal precision solid-state gyroscope is used to determine the posture of the vehicle, and high-precision, high-speed operations are employedCentral microprocessorAfter calculating the appropriate commands, the motor is activated to achieve balance.

Let’s take the center of mass of the driver and the vehicle as the axis along which they stand on the car.Reference line. When this shaft tilts forward, the built-in component inside the vehicle bodyElectric motorA forward force is generated. On one hand, it balances the torque that causes the rider and the bike to tilt forward, and on the other hand, it creates the acceleration that propels the vehicle forward. Conversely, when the gyroscope detects that the rider's center of gravity is tilted backward, a backward force is also produced to achieve balance. Therefore, as long as the rider changes the angle of their body by tilting forward or backward, the electric balance bike will move forward or backward depending on the tilt direction, and its speed is proportional to the degree of body tilt.

The steering of the electric balance bike can be achieved in two different ways. One method involves the rider tilting the center of gravity of their body to the left or right while the vehicle is moving forward or backward. The weight generated perpendicular to the vehicle's longitudinal axis serves as the centripetal force during turning, enabling steering. Additionally, the rider can twist the handlebar of the electric balance bike, causing a speed difference between the left and right wheels. For example, when the handlebar is turned to the left, the right wheel will have a higher speed.RevolverQuickly achieve a left turn effect. When necessary, electric balance bikes can even perform a forward and backward cycle to mimic a turning motion in place, significantly enhancing the mobility of this mode of transportation.

Due to this high level of flexibility, coupled withGlass fiberWheels made of material, along with the pedal area, are actually not much larger than human feet. Theoretically, electric balance bikes can reach most places that humans can reach, including roadside walkways or stairs with not too large drops.

In principle, as long as the electric balance bike is properly powered on and has sufficient power to operate, the person riding it need not worry about the possibility of falling over, which is different from the usual situation where the rider has to balance the bike by themselves.SkateboardTransportation methods are very different.
