Hardwar

CPU

VT6000 MIPS (128 pin) 34Kf@600MHz Montage

Memory

DDR2 Frequency1066 32X16Mbit

Bytes Flash32M

Type Demodulator

DM6000 Chip SetS2+TUNER Montage

TS2022 Chip SetT2+TUNER Montage

MXL MaxLinear 608

Panel Front

USB 2 One Host Embedded,

LED display on front panel 4-digit

LED Standby green, LED Lock red

KEY POWER, CH+, CH-, Panel

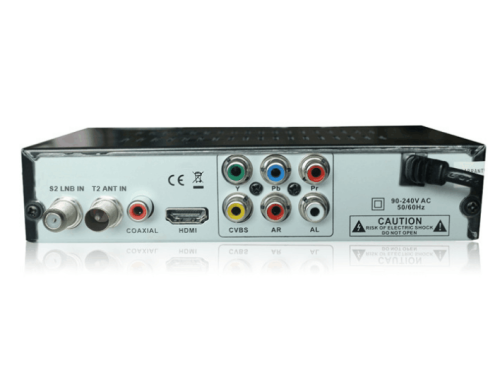

Panel Rear

LNB IN input connector S2

IEC60169-2

T2 ANT input connector

IEC-162-2 (Female IEC)

V1.3 HDMI

CVBS AL AR Connector x1 RCA

RCAx1 Ypbpr

X1 Coaxial

AC100~240V 50Hz/60Hz Power

Demodulation DVB-T2

Receiver StandardDVB-T2/T Terrisal (V1.3.1/EN EN_302755 300744)

RF Frequency 48~866MHZ Input

Bandwidth6MHz, 7MHz, 8MHz

QPSK 16-QAM 64-QAM and 256-QAM Constellation

1/2 3/5,2/3, 3/4,4/5,5/6, FEC

Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 Guard

Mode 2K/ 8K/32K FFT

Single and multiple PLPS Support

Level -83~ -5dBm Input

Channel Decoder DVB-S2

Channel Decoder DVB-S2

Range Frequency

950MHz-2150MHz

Level Sensitivity

- 81dBm - 10~

IFFT Mode

2K, 8K

Mode FEC

1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 8/9, 9/10, 5/6

Intervals Guard

1/4,1/8,1/16,1/32

Constellation

QPSK, 8PSK, 16APSK

Channels
immunity and Protection Neighboring

To ETSI TR According 101190 V1.2.1

Ant Power Active

DC 500mA @ MAX Overload, Protection 13/18V

Features Sortware

- comply with DVB-T/T2 and H.264 MPEG-4, MPEG-2, Standard Fully

- comply with DVB-S/S2 MPEG-2/4, H.264 Standard Fully

- BISS KEY Support

- single Supports / or blind search satellite search multiple

- DiSEqC 1 / 1.1 / 1.2

- maximum speed of the traffic flow of at least The 50 Mbit / sec

- 3D interface Support

- Timer Sleep

- teletext/subtitle/muti-language Support

- and highly effective 7-day EPG function Powerful

- 16:9, Pillar Box 16:9, Pan G Scan 4:3, Letter Box 4:3, Pan G Scan AUTO, Full 4:3, Wide Screen 16:9

- USB 2 PVR TIMESHIFT, software, upgrade and media files playback for

- output resolution: Video 480i/576i/480p/576p/720p/1080i/1080P

Decoder DecoderVideo

With: Compliant MPEG-4 part10/MPEG-2 ISO / IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3 (10 Mbps)
MPEG-2 main Profile# main level (15Mbps) H.264
MP#L3 (10 Mbps) HP L4.1.H.264 25mbps)

Decoder Audio

MPEG-1, MPEG-2 (I/II Layer), MP3, AC-3 (Digital Dolby), AAC-LC, E-AC-3 WMA
(Digital Plus Dolby) HE-AAC decoding 5.1 decoding multi-chhannel

Multimedia Features Powerful

MediaCodec

Mpg.Dat, avi.,.Vob,.Div,.Mov,.Mkv,.Jpeg, etc.Ts

Box gift

Cable optional AV

Cable optional HDMI

Remote control IR

Manual User

Loading

Size machine

168*95*37mmmm

Size Packaged

Weight machine

Weight Packaged

For 40GP Loading

For 20HQ Loading
