| specifications | |
| print mode | Thermal & heat transfer type |
| resolution (resolution) | 203dpi |
| print speed | The fastest (4 inches per second) |
| print length | A maximum of 100 inches (254 cm), a minimum of 0.2 inches (0.5 cm) |
| print width | 4.1 inches |
| memory |
8MB DRAM (5MB user can use 4MB Flash (ROM) 2MB users) |
| CPU | 32 bits |

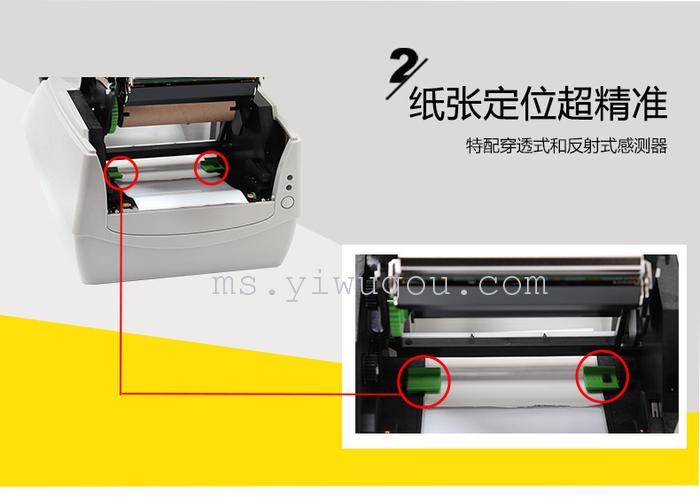

| label sensor | Mobile reflective x1, a penetrating x1, printing head sensor, exhausted ribbon sensor |
| interface | The LED indicator X2, X1 button |
| communication interface |
P-2140: parallel port (parallel), serial port (RS-232, USB (2.0) CP-2140E: serial port (RS-232, USB (2.0), built in Ethernet (Ethernet) |
| character font | 5 international standard font (1.25 mm ~ 6 mm), the maximum amount of 24x24, four direction of rotation 0 degrees ~270 degrees, can be downloaded from the software True Type Windows |
| barcode |
PPLA: Code 39 (checksum digit Postnet), Code 93 2of Interleaved 5 (checksum digit/with human readable check digit standard/with), EAN-8, EAN-13, UPC-A, UPC-E, Codabar, A/B/C, Code, UCC/EAN-128, UCC/EAN-128, K-MART, UCC/EAN-128, Random, Weight, HBIC, FIM, UPC2, UPC5, Data Bar PPLB: GS1 Code 39 (checksum digit standard/with), Code 93 Interleaved 2 of 5 (checksum digit/with human readable check digit standard/with), EAN-8 (digit add-on/5 digit add-on standard/2), EAN-13 (digit add-on/5 digit add-on standard/2), UPC-A (digit add-on/5digit add-on standard/2), UPC-E (digit add-on/5 digit add-on standard/2), Postnet, Codabar, Code 128 A/B/C Code, Auto 128 UCC (Container Code Shipping), Code 2 German, Postcode, Matrix 5, UCC/EAN 128, Interleaved UPC 2 of 5, Data Bar GS1 |
| two-dimensional bar code | PPLA/PPLB: MaxiCode, PDF417, Matrix Data (only ECC200), code Composite, codes QR |
| graphics |
PPLA: PCX, BMP, and HEX format files PPLB: IMG And Binary raster BMP, and GDI PCX |
| instruction set | PPLB, PPLA |
| software | Windows driver (WIN2000 / XP / Vista / Windows 7); tag editor software - bartender / printer utility / font utility |
| printed material specification |
Maximum width: 10.8 cm have a minimum width: 2.54 cm the thickness of the paper: millimeter 0.0635~0.254 maximal diameter: 12.7 cm / diameter width: 2.5 cm or maximum diameter: 11.4 cm (optional) / internal diameter of 1.3 cm (optional) types of paper, roll paper, label type (continuous paper, spacing of paper, folded paper, bills, tag, wrist strap. Etc.) |
| ribbon |
Width: 2.54~10.16 cm maximum outer diameter of: 6.7 cm maximum length: 300 meters diameter width: 2.54 cm for category: wax, wax resin semi, Quan Shuzhi (ribbon), |

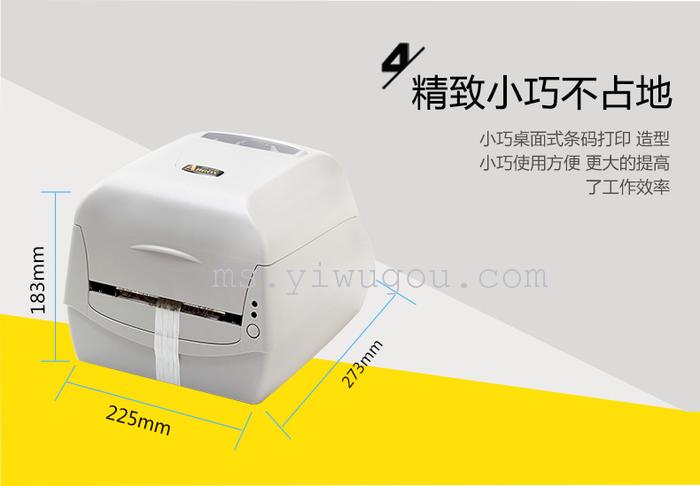

| size | 273 mm (long) X225 mm (wide) x186 mm (high) |
| weight | 2.1 kg |
| power | Switch mode power supply, input: 100V~240V, 1.8A, 50~60Hz, output: Max. 24V, 2.4A 60W |
| working environment |
Operating environment: 4 DEG C~38 DEG C (relative humidity 10% ~ 90%) storage environment: -20 ~ C~50 ~ C |
| Accessories2 | Paper machine, plug-in paper, RTC card, ArgoKee external keyboard |
| product certification | CE, FCC, cTUVus, RoHS, CCC |
| applicable industry | A commercial product label / postal out tickets, inspection label / production automation management label / transportation, logistics and distribution label / clothing label, garment washing label / inventory management |
