Yiwu Jintao Electronic appliances firm 14yr.
Contacts:Chen Maiolin Chat
Mobile:86-13506897056
E-mail:ywmiaolin@163.com
| Model | ||||
| Hardware | ||||
| CPU | MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | ISDB SOC Chip Set | |||
| TUNER | Rafael R836 | |||

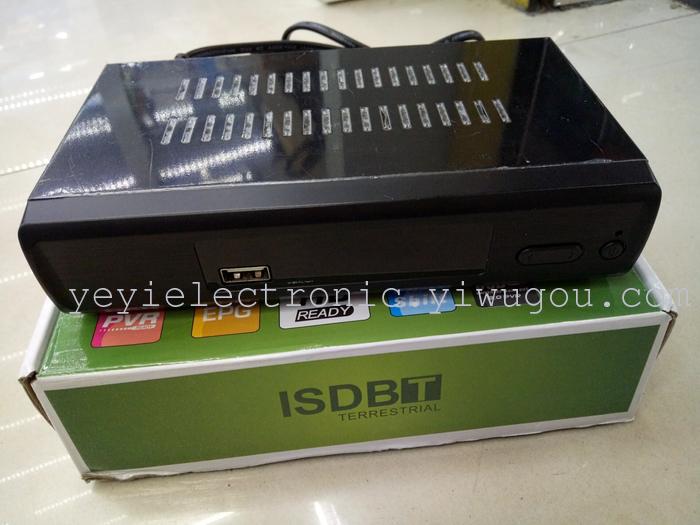

| Front Panel | USB 2.0 Embedded One Host | |||
| 4-digit LED display on front panel | ||||
| red LED Standby, green LED Lock | ||||
| "Panel KEY, POWER, CH+ ,CH- | ||||

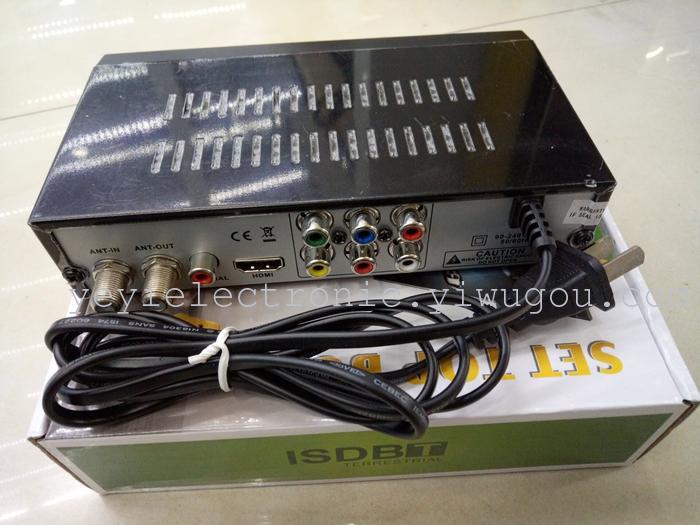

| Rear Panel | Tuner RF input connector | EC-type IEC169-2 Female | ||
| Tuner RF Loop-through Connector | IEC-type IEC169-24 Male | |||
| HDMI V1.3/V1.4 | ||||
| RCA Composite Video, Audio, and Luminance (Y/C) Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard | ISDB-T broadcast (1, 3, 13 segment) | |||
| Input RF Frequency | VHF: 177.143~213.143 MHz: UHF 473.143~803.143 MHz. |
|||
| Bandwidth | 6MHz | |||
| Demodulation | QPSK / 16QAM / 64QAM/QPSK or DQPSK | |||
| Federal Election Commission | 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic | |||
| Guard Interval | 1/4，1/8，1/16，1/32 | |||
| FFT Mode | 2K/ 8K/32K" 可以翻译为 "2K/ 8K/32K | |||
| Input level | -83 - -5dBm | |||
| Sortware Features | ||||
| ISDB-T is used in countries such as Brazil, Peru, Argentina, Chile, Venezuela, the Philippines, and Ecuador. | ||||
| Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX compliant. | ||||
| Support 3D interface | ||||
| Teletext/Subtitle/Multi-language Support |
||||
| Supported 7-Day EPG function, VBI Teletext |
||||
| ?AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| USB 2.0 for PVR, TIMESHIFT, software upgrade, and media files playback | ||||
| Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Decoder | ||||
| Video Decoder |
Compliant with: MPEG-4 part 10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile # Main Level (15Mbps) H.264 MP@L3 (10Mbps). H.264 HP@L4.1 (25Mbps) |
|||
| Audio Decoder |
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding and HE-AAC 5.1 multi-channel decoding |
|||
| 强大的多媒体功能 |
||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA, MP3, AAC (.wma, .mp3, .m4a) |
|||
| Photo Codec | JPEG, BMP, PNG |
|||
| License | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable is optional | ||||
| IR remote control | ||||
| User Manual | ||||
| Loading | ||||
| Loading | machine size | Packaged size | ||
| machine weight | Packaged weight | |||
| Loading for 40-foot standard container (40GP) | Loading for 20HQ | |||
