Nikula Monocular Telescope High Power Telescope Night Vision Zoom Monocular

  • EXW Price: Min. order:
    CN¥ 73.0
    ≥ 48 piece
    CN¥ 70.0
    ≥ 240 piece
    CN¥ 65.0
    ≥ 480 piece
  • 48 piece
  • Weight 0.5 kg/piece
  • color
  • Specifications
    black CN¥ 0.0
Send Inquiry Chat with supplier

Yiwu Yingrui Optical 14yr.

Contacts Chen Jia Jia Chat

Mobile 86-13906893397

E-mail sky@yinyuan-optics.com

15507049392

WhatsApp +86 13484095116

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description
item no.: 10-30x 25
item no.: 10-30x 25

Product Description



multiple 10-30 times
Objective lens diameter 12mm
Objective aperture 25mm
Anti-skid technology Support
Folding technology Support
Material Import aluminum alloy
Tri-pod socket Support
Regulation Mode Stretching and rotating for focus adjustment
film layer Multi-layer wideband green film
Net weight Approximately 113g
Material Metal body
Prism K9





【Product Advantages】
1. Ultra-short close-focus. General 7x telescopes have a close-focus distance of about 5m, which cannot be imaged within 5m. This model's close-focus distance can reach 0.5m, making it not only suitable for observing "far" but also very advantageous for close-up viewing.
2、Compact and Lightweight. The entire volume is approximately 12x3x3cm, with a net weight of 120g, making it very convenient to carry.
3. Dual Focus Design for Easier Use. Most standard variable magnification telescopes use rotational or stretching focus adjustment, but this model offers two focus adjustment methods, making it suitable for a wider range of situations.undefined

undefined

undefined

undefined

undefined

10-30*25"。 "调节方法:" 翻译成英文是 "Adjustment Method:
1. A total of three places can be adjusted, respectively: the magnification ring, the low magnification focusing ring (rotate), and the high magnification focusing ring (which can rotate and pull up).

2. How to adjust? There are 2 situations.

 The first one: low magnification, this one is 10 times. As the name suggests, you just need to adjust the low magnification focusing ring, which is not difficult. However, it is important to note that when using the 10x magnification, the high magnification focusing ring should be fully retracted, not pulled out.

The second type: high magnificationThis is 10-30 times, similarly, you just need to adjust the high magnification focusing ring. Note! It's just that! At this time, the low magnification focusing ring does not need to be adjusted.

3. Attention Points:

 1) Start with low magnification and then move to high magnification. It is easier to adjust at low magnification, but when using high magnification, it is necessary to breathe and shake the hand, which increases the difficulty of adjustment.

 2) In both the 10x or (10-30x) cases, you only need to adjust one zoom ring at a time. You don't need to adjust both rings back and forth at the same time. In simple terms, when you're at 10x, you just need to adjust the low magnification zoom ring, and when you're at high magnification, you just need to adjust the high magnification zoom ring. Moreover, when you're at 10x, the high magnification zoom ring needs to be in the contracted position.

 3) When first using the observation object, the distance should not be too close or too far, about 50 meters away, and the most convenient adjustment distance is 200-500 meters.



Product Description

This single-lens variable magnification telescope is an export product of a Taiwan-based company in China. It is very finely crafted with excellent optical performance. It is delicately small and has a good variable magnification capability, especially with a close-focusing distance of 0.5M, which ranks among the leading products in the domestic industry. The new broadband green film version has multi-layer broadband coating on both the eyepiece and objective lens, which provides higher brightness.

Focusing Method: Stretching or Rotating Focusing (Two Ways)
Close-up Focusing Distance: 0.5M
The body of the mirror is made of metal, and some accessories are made of elastic rubber.
Coating: Comprehensive Multi-Layer Wideband Green Coating

Brand: Nikula (Lidaka Nikula)
Origin: Taiwan Head Office (Guangdong Nanhai Branch)

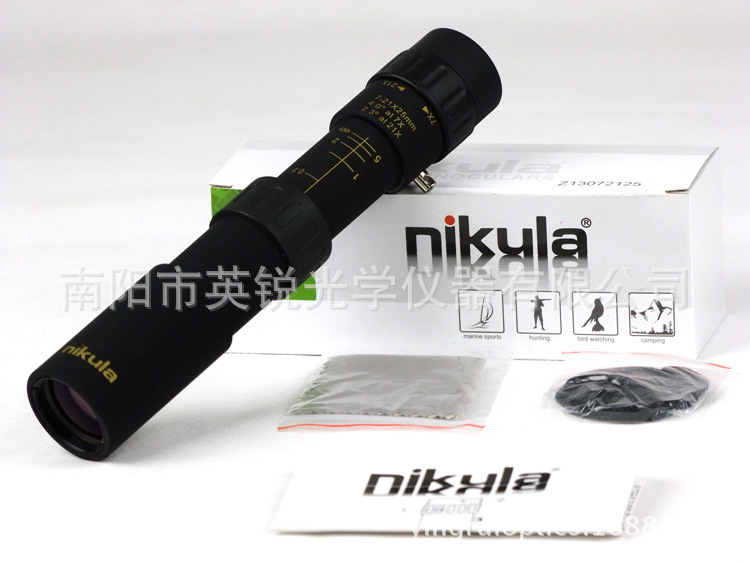

Attachments: Soft case, shoulder strap, lens cleaning cloth, English instruction manual, desiccant, packaging box, quality certificate, warranty card.

Technical parameters
Specification: Z13103025
Magnification: 10 times - 30 times, the magnification can be adjusted freely between 10 times and 30 times as needed.
Objective aperture: 12mm
Objective aperture: 25mm
Prism Material: K9
Net weight: About 113G
Field of view: 10x: 3.5° 30x: 2.0°

Function Parameters:
Anti-skid technology: Supported
Waterproof technology: Not supported.
Folding technology: Supported
Zoom function: Supports
Material: Imported Aluminum Alloy
Color: Black
Tri-pod socket: Supports
Coating: Multi-layer broadband coating. The purpose of lens coating is to increase transmittance. Commonly used coatings for telescopes include single-layer, multi-layer, and multi-layer broadband coatings, with the multi-layer broadband coating being the best. The identification method: single-layer coating is blue, multi-layer coating is purple, and multi-layer broadband coating appears green when viewed directly and tinges purple when viewed from the side. (Please note the difference: green coating is the best type of coating, not the ordinary blue coating. Also, the lens body has a security label).
Focusing Method: Stretching or Rotating Focusing (Two Ways)

【Product Advantages】
1. Ultra-short close-focus. General 7x telescopes have a close-focus distance of about 5m, which cannot be imaged within 5m. This model's close-focus distance can reach 0.5m, making it not only suitable for observing "far" but also very advantageous for close-up viewing.
2、Compact and Lightweight. The entire volume is approximately 12x3x3cm, with a net weight of 120g, making it very convenient to carry.
3. Dual Focus Design for Easier Use. Most standard variable magnification telescopes use rotational or stretching focus adjustment, but this model offers two focus adjustment methods, making it suitable for a wider range of situations.

10-30*25"。 "调节方法:" 翻译成英文是 "Adjustment Method:
1. A total of three places can be adjusted, respectively: the magnification ring, the low magnification focusing ring (rotate), and the high magnification focusing ring (which can rotate and pull up).

2. How to adjust? There are 2 situations.

The first type: low magnification, this one is 10 times. As the name suggests, you just need to adjust the low magnification focusing ring, which is not difficult. However, it is important to note that when using the 10x magnification, the high magnification focusing ring should be fully retracted, not pulled out.

The second type: high magnificationThis is 10-30 times, similarly, you just need to adjust the high magnification focusing ring. Note! It's just that! At this time, the low magnification focusing ring does not need to be adjusted.


3. Attention Points: 1)Start with low magnification and then move to high magnification. It is easier to adjust at low magnification, and when using high magnification, it is necessary to breathe and shake the hand, which increases the difficulty of adjustment.

2) In both the 10x or (10-30x) cases, you only need to adjust one zoom ring at a time. You don't need to adjust both rings back and forth simultaneously. In simple terms, when you're at 10x, you just need to adjust the low magnification zoom ring, and when you're at high magnification, you just need to adjust the high magnification zoom ring. Moreover, when you're at 10x, the high magnification zoom ring needs to be in the contracted position.

3) When first using the observation object, the distance should not be too close or too far, about 50 meters away, with 200-500 meters being the most convenient.Adjust the distance.
