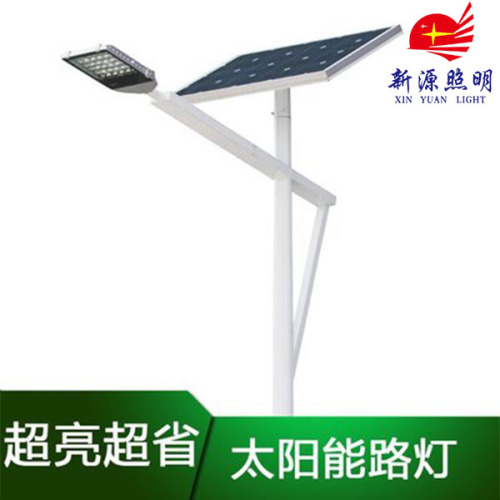

Brand: XIN YUAN LIGHT
Model: XY-Z2502
Light source type: LED
Rated power: 42 (W)
Voltage: 12 (V)
Sunshine time: 6~12 (H)
Outline dimensions: according to custom
Lifetime: 100000 (H)
Main scope of application: Street, park, community, scenic spots and other public places

[work principle]
Solar LED street lamps will use solar energy during the day and use the battery to store electric energy, microcomputer program controller control over charge, over discharge and automatic lights, solar street lighting system is a set of independent decentralized supply system, without geographical restrictions, and is not affected by the installation position of the power of influence, also do not need to dig the road to make wiring buried pipe construction, site construction and installation are very convenient, with no need for power transmission system, power consumption, both environmental protection and energy saving, good economic benefit, especially on roads have been built added solar street lamp is very convenient. Especially in the road from the grid lamp, outdoor billboards, bus station on the application, its economic benefit is more obvious.
[product advantages]
1 energy saving, environmental protection, maintenance free
2 the installation is simple and convenient, and the service life is long.
3 low voltage, safe to use
4 wide range of application
[technical parameters]
1 suitable light source: LED lamp, life: 50000~100000 hours.
2 solar panels: single / polysilicon high conversion efficiency of the solar cell board, life is more than 25 years.
3 battery: valve control sealed maintenance free lead-acid battery, colloid, solar energy, service life of 3~7 years.
4 controller: microcomputer intelligent controller, anti overcharge, overdischarge, light and time control on / off, life is more than 5 years.
5 battery box: die pressed, fully sealed waterproof, have better heat insulation function, life is more than 20 years.
6 protection level IP65.
7 work time: 6~12 hours a day lighting, Sustainable Lighting for 3~7 days, can also according to customer's request.
8 suitable for installation and use: Road, yard, park, square.
[working hours]
10 hours / day, 6 hours full power mode +4 hours of energy-saving mode, to ensure continuous 3~5 days and rainy days to use
