set-top box digital set-top box atsc-t south america mexico

Product Information

• Product Name: High-Definition Ground Digital Set-Top Box
• Product Size: 220*150*40mm
• 商品品牌：OEM
• 商品货号：8528718000
• Product Color: Black
• Material composition: Metal case

1、Hardware

CPU: MSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz

Memory: 32MB, DDR2, Frequency 1066

Flash: 32M bytes

Demodulator Type: MSB1237 Chip Set

TUNER: Rafael R836

USB 2.0: Embedded One Host

Front Panel: 4-digit LED display on front panel

Red LED Standby, green LED Lock

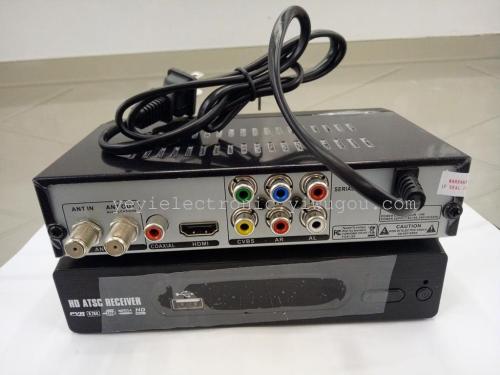

Rear Panel: Tuner RF input connector Standard ISO/IEC 13818-1; ARIB STB-B10

Tuner RF Loop through connector loop through function

HDMI V1.3

1 x AV RCA

Ypbpr RCAx1

Coaxial x1

Power: AC100~240V, 50Hz/60Hz

Demodulation: Standard ISO/IEC 13818-1; ARIB STB-B10

Input maximum bit stream rate: 36Mbps (serial) / 9Mbps (parallel)

ATSC, NTIA, and 8VSB Standard

QPSK, 64QAM, 256QAM

FEC: 1/2, 2/3, 3/4, 4/5, 5/6,

Guard Interval: 1/4, 1/8, 1/16, 1/32, 1/128

FFT Mode: 2K, 8K, 32K

RF input frequency: 54-803MHz

Bandwidth: 6MHz

Input level: -83 - -5 dBm

2、Sortware Features

USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver

Converts digital broadcast to your analog TV

By remote control to choose the RF 3/4 ch output

Sleep Timer

Teletext/Subtitle/Multi-language Support

Powerful and highly effective 7-day EPG function

? AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen? USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback

Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

3、Decoder

Video Decoder：

Compliant with: MPEG-4 part 10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile # Main Level (15Mbps)

H.264 MP@L3 (10Mbps). H.264 HP@L4.1 (25Mbps)

Audio Decoder：

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding and HE-AAC 5.1 multi-channel decoding

4、强大的多媒体功能

Media Codec: AVI, MPG, DAT, VOB, DIV, MOV, MKV, JPEG, TS, etc.

Audio Codec: WMA, MP3, AAC (.wma, .mp3, .m4a)

Photo Codec: JPEG, BMP, PNG

5、Multimedia License

Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.

6、配件

gift box

AV cable optional

HDMI cable optional

IR remote control

用户手册
