Supply 360 degree for small crane multi-functional crane civil crane

Introduction of outdoor crane

Outdoor crane is also known as small crane, portable crane, mini crane, electric crane and so on

Structural features of outdoor crane

This product is small in size, light in weight and compact in operation. It adopts 380V voltage, which is suitable for decoration, crane operation, installation equipment, moving company, factory, workshop, light industry, heavy industry, maintenance, warehouse and logistics. This crane is composed of power device and support.

1. The power device is composed of motor, reducer, clutch, brake, rope barrel and steel wire rope. The motor is a mono-phase capacitor motor, designed with the mechanism of braking when power is off. The motor is also equipped with a heat sensitive switch. The reducer is a two-step gear reducer, which is connected to the motor. The brake and the fly drum are integrated together to achieve rapid descent.

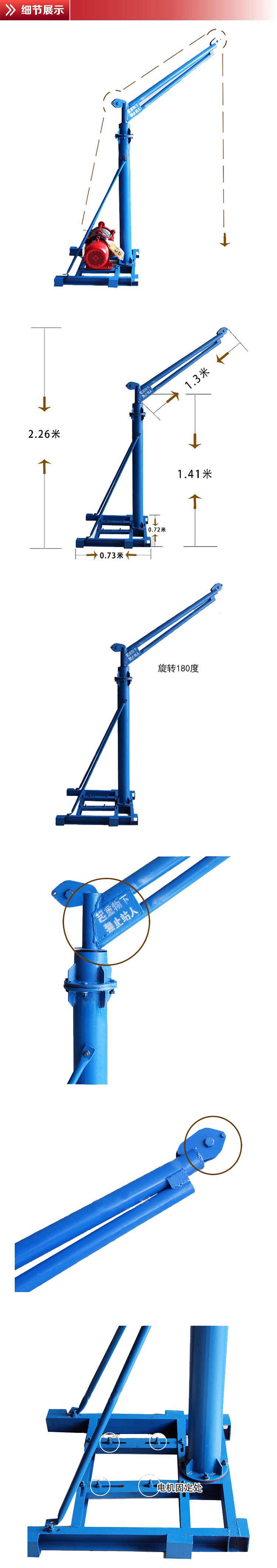

2. The support part is composed of the main strut and the cantilever boom. The rotating arm can rotate 360 degrees on the main bar, and the stroke switch is provided at the arm end to prevent the over-positioning accident caused by operation error or button failure.

The operation button starter realizes the forward and reverse rotation of the motor, which can wind and release the wire rope, and lift the rope through the pulley part and lower the objects to complete the lifting operation.
