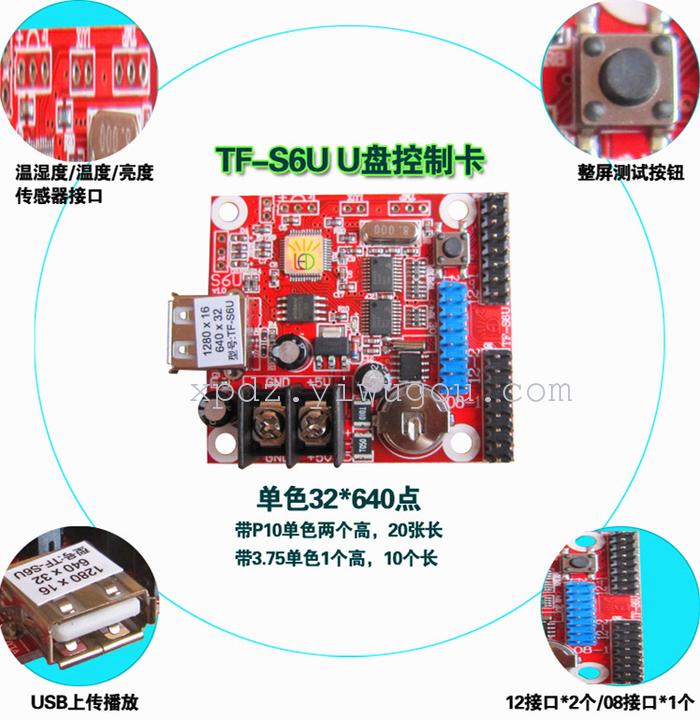

| Product name | TF-S6U/TF-S5U |
| current state | TF-S5U is about to stop production, the new replacement model for TF-S6U |
| Function introduction | Multi area arbitrary partition, colorful frame, U disk, update time arbitrary font size, cross screen display, LED asynchronous control card |
| U disk function | Support U disk update program, U disk brightness adjustment, U disk design parameters. The use of file storage, does not affect the original U disk file. Using the card reader can be compatible with SD card, miniSD card |
| Control range |
Monochrome 1280 x 16 x 32; 640; two color 640 * 320 * 32 16; |
| Board interface | 08 2 interface; 12 1 interface no need to transfer board can support all kinds of common P10, 3.75, 5 module |
| Scanning mode | 1/16, 1/8, 1/4, 1/2 and static scan of single color, double color module |
| storage capacity | 2M byte |
| Number of programs | Up to 200 programs, each program supports 16 regions at the same time. Each text up to 200 pieces of information to support the information. (quantity is not filled with storage space) |
| Display effect | Rain, fountain, scroll, and other 45 animation effects. |
| Colorful border | Support a variety of colorful pictures, support custom border border effect. |
| Information type | Super text, pictures, animation, countdown, timing, temperature, humidity, clock |
| Play mode | Show support in turn to play, the timing of long play, support by date, time, and the timing of the week |
| Time display | Dial clock, text clock, time with seconds, adjustable font size, can be set time zone, support multi time zone control display. |
| Communication mode | U disk update program |
| Brightness adjustment | 16 levels of brightness, support for manual adjustment, the 6 time period to support the timing of brightness adjustment, according to the ambient light automatic. |
| Screen switch | Hand switch screen, support 4 time period of time switch screen |
| Test button | Board test button, can switch test mode, test color |
| Extended function | Temperature and humidity sensitive ( humidity sensitive module wiring diagram ) |
| Electrical parameters | +5V DC (4.5V ~ 6V), the normal operating power consumption is less than 0.5W, read U disk power consumption is less than 2W |
| Working temperature | -30 C ~ 70 C |
| The equalizer gain (each) +/-15dB | 60x50mm |
