Product Weight: 6000.0kg/piece

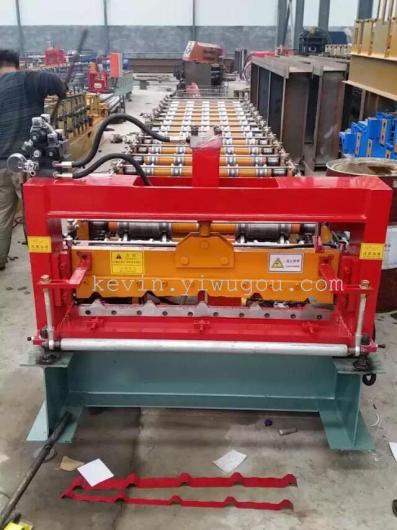

roof plate forming machine roll forming pressure plate, the equipment is solemn and elegant, beautiful and novel, and smooth appearance, uniform ripples, high utilization rate, high intensity, high degree of production automation, low cost, durable
main technical parameters
1. Installation size: 7000mm × 1200mm × 1000mm
2. Number of molding channels: 15
3. Roller material: 45# steel
4. Roller plating thickness: 0.05mm
5. Cutter material: Cr12
6. Molding speed: 9-10m/min.
7. Electronic control system: Industrial Computer PLC control
8. Frequency converter: accurate counting anti-knife function (optional)
9. Host power: 3kw
10. Hydraulic station power: 3kw
11. Plate thickness: 0.2-0.7mm
12. Plate spread width: 1000mm

the products are used in all kinds of industrial plants, warehouses and other roof production, which has the advantages of High Peak and high strength, safe and reliable lap installation, strong waterproof and anti-riot performance, etc, the pressure plate produced by this machine solves the roof leakage problem of conventional series of pressure plates, and with arch raising machine, a beam-free arched roof can be made.
