attention : before using the machine, please carefully read the instructions on the operation warning, the replacement of the heating parts, please shut down first and pull to the general power plug, hot stamping head connecting plug and an electric control box connected socket must be aligned, electric control box not connected heating components never boot. Machine can't burn.

[usage]

this machine can be any color color, portrait, landscape pattern printed on the cup , is particularly suitable to be used in advertising, gifts, promotional activities, and at the same time also can be as a personalized gift sent to friends and family and art appreciation and practicality in one.

[features]

1. The new machine appearance design, exquisite production process luxury;

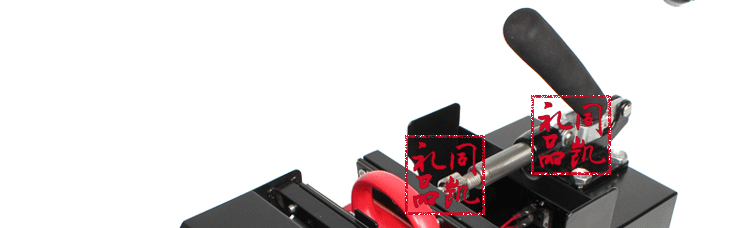

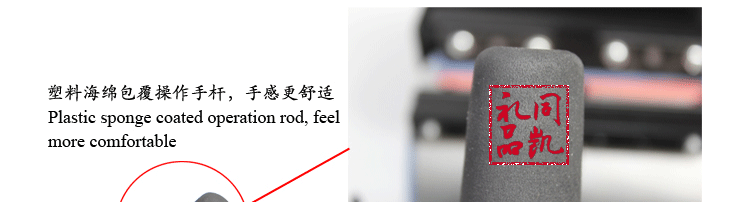

2. The EVI material covers the handle, lever operation more comfortable;

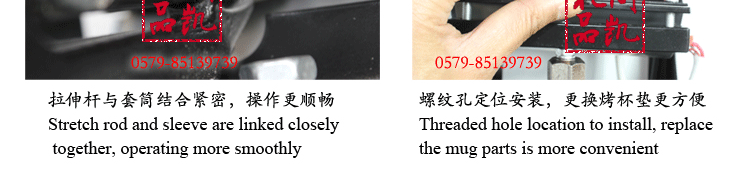

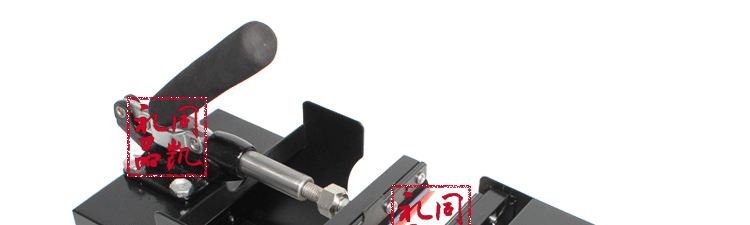

Rod and the sleeve tightly 3. pressure regulator, replacing baking mat with screw hole positioning, easy operation;

technical parameters

- electric sub digital pressure control, convenient adjustment, reliable performance

- voltage: 220V frequency: 50HZ / 110V / 60 HZ

- power: 350W

- packing size: 540mm x 170mm x 170mm

and conventional heating mat size: 11oz, size: 105X235 heating (expansion ) /350W

(suitable for diameter of about 8.1CM, about 9.5CM high heat transfer mug)

- weight: 3.6 Kg

- maximum temperature: 399 degrees Fahrenheit

- time control range: 0-600 seconds

- real-time temperature display status: automatic alarm

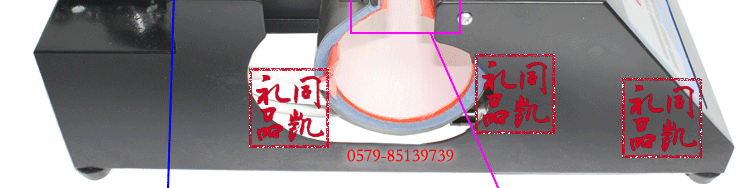

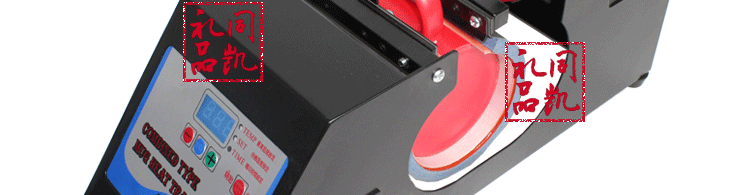

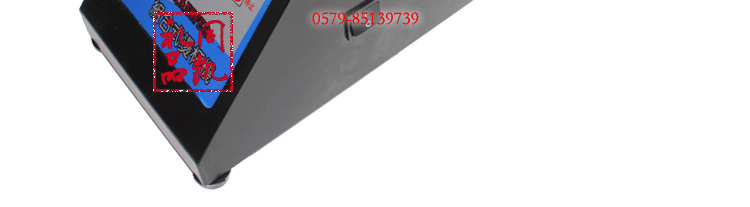

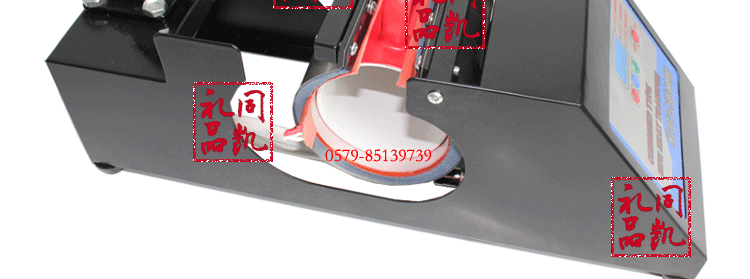

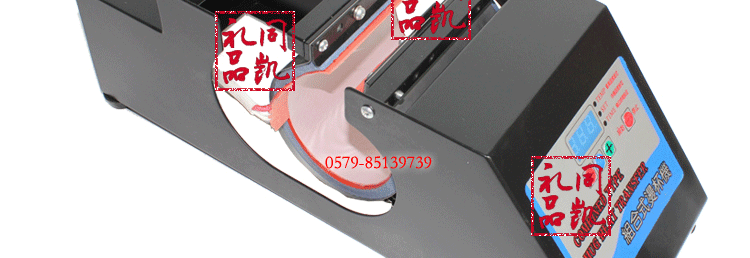

[show]

[]


detail

[gift] printing process

1. will design a good image filled with thermal transfer ink printer to inkjet paper (general use back yellow color ink-jet printing paper effect is best, white is a printing surface, abaxially yellow).
2. need to mirror printing or sublimation paper (smooth, the end of the print must dry to transfer) on, and then the pattern is cut, wrapped in the glass surface (image in the face of the cup), uses the high temperature adhesive tape fixed.
3. Turn on the power heat transfer equipment, according to the different transfer printed products suitable temperature and time. (various products need to print approval sample, before mass production. )
4. according to the printed products, adjust the appropriate pressure.
5. this machine automatically enter heating transfer state, until the temperature rises to the set temperature , began to countdown, the timing for "0" machine issued long drop to drop to "beep, switch off the power supply, take out the goods in the printed and tear drawing a DIY gifts and making complete.

[parameters] reference

	P1 initial temperature	The working temperature ofP2	P3 set the countdown	heating time
baking cup(ceramic)	93 C	180 C	30 seconds	3
pan (Tao Ci)	93 C	180 C	30 seconds	3
baked cap	93 C	180 C	15 ~ 20seconds	15 ~ 30seconds
India Tshirt	180 C	180 C	15 ~ 20seconds	15 ~ 30seconds
sheet metal press
tile
puzzle
other

note: 1. the pyrography time and temperature parameter settings are for reference only, the specific settings should be according to the printed products of different materials, heat transfer effect of the actual operation.

2. so the product transfer (heat transfer) must first go through the sample, can be mass production.

[] stamping defect analysis

A. The color is too light: the temperature is too low or the pressure is not uniform or the time is too short.

B. Pattern fuzzy: time is too long lead to ink diffusion.

C. Pattern surface gloss: the pressure is too large or too high temperature.

D . Pattern local fuzzy: hot stamping area of uneven distribution of heat.

E . The pattern has scar: the hot stamping time is too long.

F . Pattern color shades: pressure unevenness or object transfer coating unevenness.

G . Sticky paper: the temperature is too high or the object transfer coating is bad.

Parameters of recommended : onset temperature setting is 230 degrees Fahrenheit degrees, the maximum temperature setting 330degree, the high temperature baking time set s, for 30.

Hot stamping and : with a cloth to clean the mug surface, will transfer paper wrapped mug, with high temperature adhesive tape fixed, put in the hot cup machine mold cavity and push the pressure on the handle, such as

pressure is too large or too small, adjustable push rod travel.

: baking cup machine heating pad is not afraid of empty burning, but to try to avoid baking cup body height is far lower than that of roasted Cup Coasters width, the same is also a small part of not only the cup body plug

into baking mat in baking, if in a small part of the cup and bake pattern should be starting in drawing processing.

[] reminder

printed character of DIY products, you need to prepare the following equipment and materials:

1 , thermal transfer equipment;

2 , inkjet printer + ( will be empty even for thermal transfer ink into the tx800fw);

3 , sublimation ink (to be installed inside the printer in )

4 , high temperature adhesive tape;

5 , sublimation paper;

6 , paper cutting knife;
which printer advise customers to the local market to buy Epson R230, printers need after-sales place more, in the local is more convenient. The following :
