construction site sand screening welded wire mesh small hole barbed wire square wire mesh 工地筛沙用电焊网 小孔铁丝网 方眼网

Sand screening at the construction site uses welding mesh; small-hole wire mesh is used for wall reinforcement at the site.

1. Introduction to the Welding Mesh

Material: Low-carbon steel wire, stainless steel wire
Network holes: 1/2" 3/4" 1" 1/4" 1/3" 1.5" 2" 3" 4"
Thread diameter: 0.35mm–2.5mm
Width: 0.5m - 2m
Length: 5m - 30m

2. Surface treatment of welding mesh

Surface treatment: wire drawing modification, hot-plating, PVC, electroplating

3. Welding mesh specifications

Net hole (inches)   Net hole (millimeters)   Filament diameter (BWG)
1/4" x 1/4"         6.4 x 6.4         22,23,24
3/8" x 3/8"       10.6 x 10.6       19,20,21,22
1/2" x 1/2"       1.27 x 1.27       16.17, 18.8, 19.9, 20.0, 21.0, 22.0, 23.0
5/8" x 5/8"       16 x 16             18, 19, 20, 21
3/4" x 3/4"       1.91 x 1.91        1.617, 1.8, 1.9, 2.0
1" x 1/2"          25.4 x 12.7        16,17,18,19,20
1-1/2" x 1-1/2"    3.8 x 3.8          1.4, 1.5, 1.6, 1.7, 1.8, 1.9
1" x 2"             2.54 x 5.08        14.15,16
2" x 2"             5.0 cm x 5.0 cm        1,2,1,3,1,4,1,5,1,6

4. Welding mesh packaging

Single-layer paper wrapping / blister packaging

Double-layer wrapping paper + blister packaging

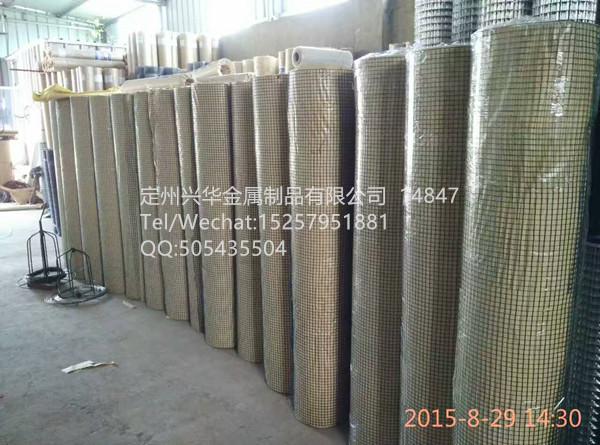

5. Welding mesh production workshop

We can produce according to customer requirements. If you need anything, please contact me.
