ZIYOUHU outdoor optical ( company ZIYOUHU) since 2004 in January, in the past ten years. Has been committed to the research and development of equipment and manufacturing and for the United States and Europe, the major civil surveying and mapping instrument brands to provide professional OEM (original equipment manufacturing) services. 2005 8 ZIYOUHU outdoor optical company launched its own brand of products, officially launched its own ZIYOUHUTM series of laser rangefinder products, the products are through the international standard certification center of the CE, C-TICK, -}FDA, FCC, ROSH {certification; certification licensing covers Europe, America, Asia and Australia in major countries and regions. Most of the products have been sold in these countries and regions, and have been recognized by many international organizations. 2008 will also launch high-end laser rangefinder products for the civilian market. ZIYOUHU outdoor optics will continue to explore new generations of technology, strive to provide a more innovative design and cost-effective high reliability products for the global civil mapping, optical and outdoor optical market. ZIYOUHU official website

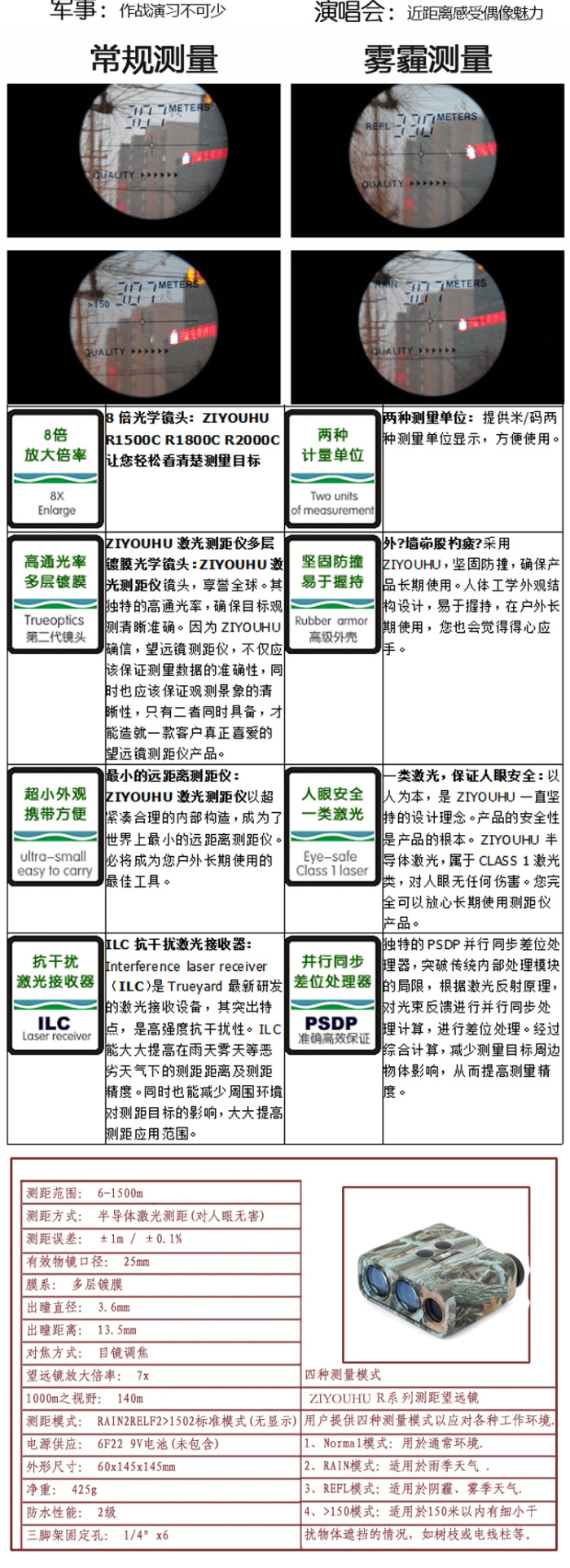

The line of sight of the display area; distance; units; the measurement model; the ability level of the laser display; display; the battery

Product use:

power measurement the telecommunications sector, construction survey and design, construction of wire rod spacing measurement, fire control system, golf course, outdoor survey design, survey, survey and other animal uses ranging

product parameters:

Range: 18-1500m

range: semiconductor laser ranging ( harmless to the human eye)

ranging error: + 1m + 0.1%

ranging display: LCD display view

effective lens diameter: 25mm

Multilayer coating

exitpupil: 3.6mm

exit pupil distance: 13.5mm

Focus: focusing eyepiece

telescope magnification: 7x

In 1000m vision: 140m ( field 8 ~ )

ranging mode: RAIN; RELF; > 150; standard mode

power: 6F22 (9V)

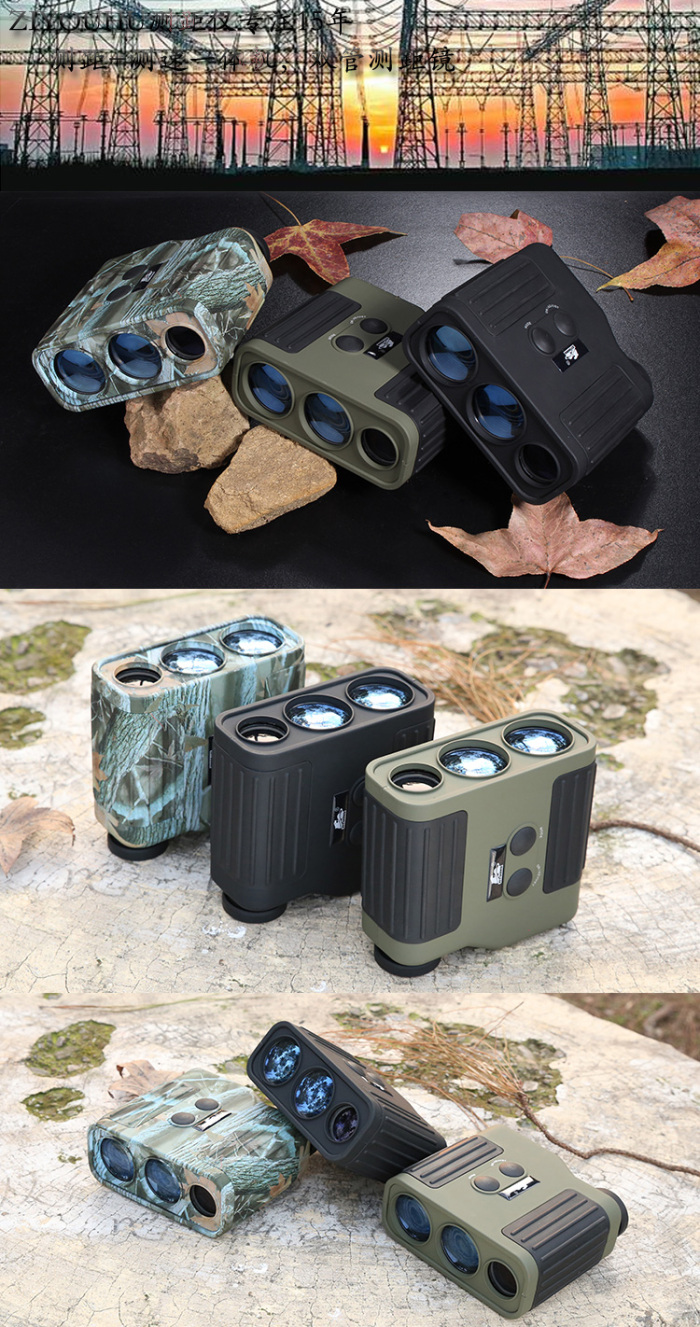

Product appearance: Black

size: 60x145x145mm

net weight: 425g

three tripod thread: 1/4 "* 6

Demonstration and use:

RAIN mode: used to measure more than 60 meters away from the target in rainy conditions

REFL mode: can improve the measurement efficiency ~~ in case of fog fog can be measured 1000 meters above

> 150 mode: the measured target distance is greater than the 150 meter, the obstacles can be reduced 150 meters (lines and branches) for measuring the shielding effect

Note

1, do not open the rangefinder, so as not to cause harm to you or cause damage to the instrument.

2, do not wipe the surface of the glass by hand, please wipe with a special cloth. The outer surface is made of soft.

3, do not flip battery.

4, long time when not using the battery should be removed.

5, when not in use should be placed in a dry place.

6, should be in the temperature range of -20 DEG C to +40 C.

accessories: host x1 Taiwan, Chinese manual x1, professional telescope lens cloth x1 block x1 strap telescope protective sleeve x1 warranty card x1
