Basic information

• size: 22.8 x 17.4 x 10.6 cm
• commodity weight: 1.6 Kg
• shipping weight: 1.6 Kg
• ASIN: B00IJN0TNS
• model: 95

Product description
China 95 military telescope is China's latest military equipment telescope, its various technical indicators than the previous products have been greatly improved, in 1997 the Hongkong military equipment is the telescope.

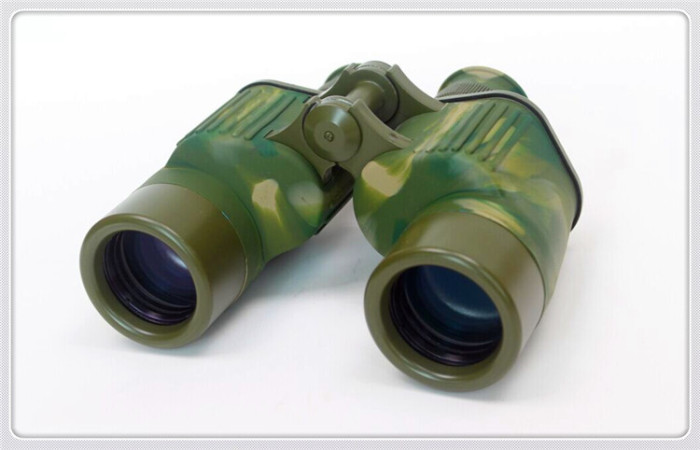

95 military telescope before styling, 7 x 40 (magnification of 7 times, the lens diameter is 40mm) and 7 * 50 two models for the military, the military finally selected 7 * 40. It is a high sealing binocular telescope with reticle, with field clear, high brightness, good image quality, image color fidelity, adapt to a wide range of characteristics such as. Mainly used for reconnaissance, terrain, search target, observation shooting effect and battlefield conditions, and can use the mirror partition roughly measure target angle, azimuth angle and distance. The main technical indicators have reached or exceeded similar foreign products, can be used in a variety of harsh environmental conditions, therefore, is widely used in the fields of military affairs, public security, traffic, transportation,
forestry, aviation, electric power, exploration etc.. This

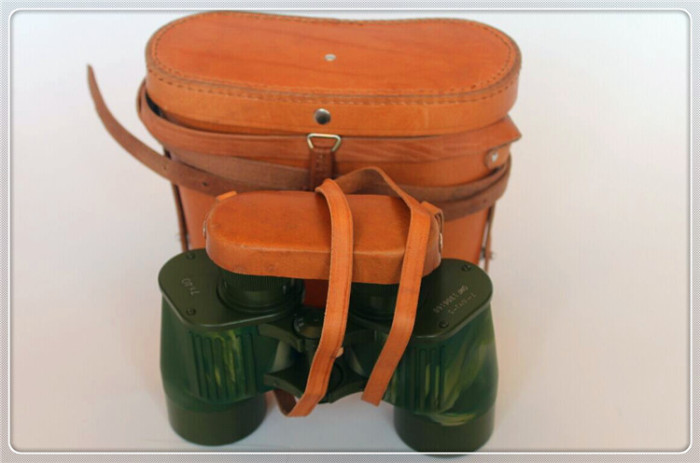

telescope follows the traditional metal shell, the shell is heavy which is very helpful for the observed image to obtain stable play, with
also make it a good shockproof, anti impact performance. The two branches of optical system about independent, need to be adjusted respectively depending on the degree of division (rotation handwheel eyepiece), to clearly see the distant target. A reticle in the right branch of the optical system, the reticle in addition to the traditional cross mil, increase the use of new horizon curve distance function, can quickly read out about 2m of the height of the object and the observer distance. On the battlefield, this is very important for the reaction time. The light blue lens, the eyepiece shows its excellent quality. The biggest advantage of the military telescope, at the beginning of the design, aimed at the time of the highest level in the world mirror technology, using high-tech lens coating technology - MC coating. MC coated lenses allow the user to observe a much clearer target than the naked eye can be seen in a variety of light, while reducing harmful ultraviolet light, so that the eyes feel cool and comfortable.
product parameters: 7

multiple diameter diameter: 40
field: 8 degrees
exit pupil diameter: 5.8 mm
exit pupil distance: 22.2 mm
diopter adjustment: + 5 diopter
eye distance adjustment range: 56~72 mm
resolution: less than 7 "
direction Division: around the 0-50
level division: + 0-50 (value 0-05)
horizon Division Range: 400~2000 m
size: 189 x 69 x 140 (mm)
telescope weight: not more than 1 kg
full weight: not more than 1.5 kg
vibration: impact of 5~55~5Hz
: 20 g
: 1.5m, 1H, anti flooding water temperature: +55 degrees

temperature: -43 degrees
