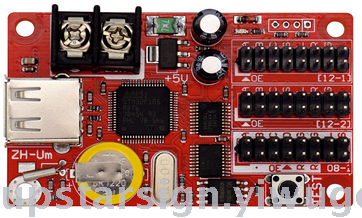

Led control card

hardware

 model

 Useful - Um

 The processor

 ARM7

 LedOSsystem

 built-inLedOS V3.35The operating system

 Storage capacity

 8 m -

communication

 rs232

 Does not support

 RS485

 Need to customize

 distance

 RS485The effective communication distance is:1200m(Need to customize)

 Baud rate

 Can support9600~115200

 Display adapter card

 The onboard2groupT12Display interface1,group08interface

 Unit board test

 It can quickly detect whether there are blind spots, dark spots and red spots in the panel

 Working voltage

 5 v(range3.2~5.5 V)

 power

 Or less0.5 W.

 The environment temperature

 - 30℃ ~70℃ '

 software

 The operating system

 supportWindows,nt,xp,vistaandWindows 7

 Form a complete set of software

 LedControlGraphic and text management systemV3

 Function display

 multiprogramming

 Add the most32A program,Multi - program fixed - length playback can be set,Timing play,time-lapse,Lock single program playback

 Multiple partition

 Each program can be added at most at the same time4subdivision(It is not a pseudo-partition in the traditional sense), any size, location, independent operation

 Program type

 Picture text, subtitles, digital time, analog dial, animation

 Timing switch

 Support software forced switch machine and timing switch machine

 Time to show

 Supports digital time and analog dial

 Action way

 60and42There are two kinds of exit methods: randomly match more than 2000 kinds of random combinations for perfect match

 Running water

 More than ten running edge modes support single partition running edge mode

 Brightness control

 support0-15Level manual brightness adjustment

 Product specification

 Scope of application

 supportA quarter,1/8,1/16Scan single and double color, full color panel

 Maximum control point

16384

 The control points

512 * 32

 The control points

1024 * 16

 oe

 Set positive and negative by software

 da

 Set positive and negative by software
