Product Description:

Product Name: Car LED Underbody Light Underbody Ambient Light
Working Voltage: DC 10V-15V
Product power: 12W

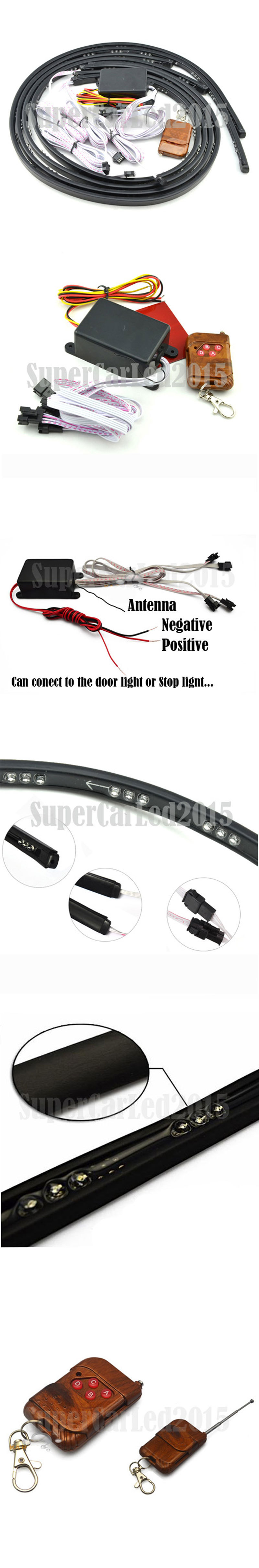

The product includes:
1. 60CM light strip: 2 pieces (the back does not have adhesive, it can be fixed with 3M tape or glass glue for installation).
2. 120CM light strip: 2 pieces (the back does not have adhesive, it can be fixed with 3M tape or glass glue for installation).
3. Controller: 1 piece
Remote control: 1 piece
C key -- control power switch;
B Key -- Color Changing Flash Mode;
D key -- 7 colors of lighting plus 6 patterns of flashing can be selected at will, directly selecting the rainbow-like change.
A key -- alternating red, green, and blue lights;

Luminescent bead quantity: 120CM light strip (72 LEDs/strip); 90CM light strip (54 LEDs/strip);
Waterproof Rating: IP68 (Indoor and Outdoor Use).
Product features: Made of PVC material, bendable, resistant to high and low temperatures, water-resistant, earthquake-resistant, low energy consumption, high brightness.
Installation Location: The installation position can be on the bumper, the air intake grille, the cabin, the rear, and the vehicle bottom.
Product life: About 50000 hours
Product Weight:
Packing Specifications:
Installation Method:
1. Fix the light strip to the appropriate positions on the front, back, left, and right of the vehicle's undercarriage (or inside the vehicle if necessary). Then, connect each lead wire to the main control box separately using standard connectors.
2, connect the main switch box red and black wires to the positive and negative terminals of the car battery (the power supply for the turn signal can also be used), and connect the single red wire to the brake power supply or the door switch power supply.
3, try switching on and off the power and flashing mode using the remote control. If pressing the remote control does not work and the indicator light is on, please check if the main control box's receiving antenna is suspended or turn on the main control box's power again.
