Specifications and Parameters】

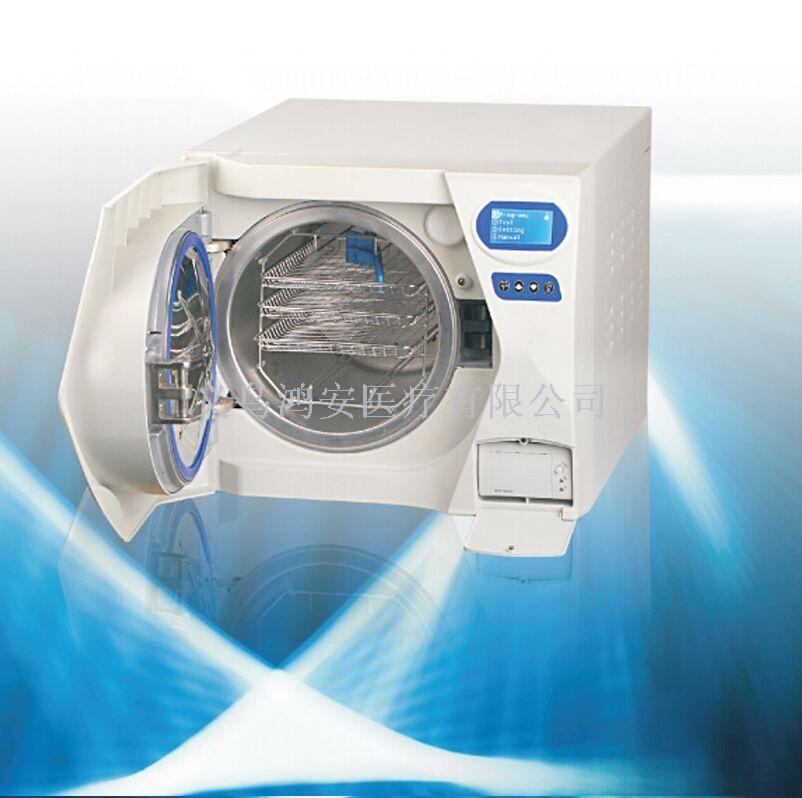

【Product Name】Moist Heat Rapid Sterilizer

【Product Model】SQ-Z23

【Product Form】Desktop

【Heating Method】Electric Heating

【Efficiency】1.7KW

【Power Source】AC 220V, 50Hz

【Physical Dimensions] (Length × Width × Height): 700×450×400mm

【Inner container dimensions] (diameter × depth): 240×370 mm

[Effective Volume] 23L

【Weight】41 kg

【Sterilization Room Material】The sterilization room is made of 304 anti-corrosion stainless steel, with a thickness of ≥3mm; the safety door has a thickness of ≥15mm, and the water pressure test meets ≥0.8mpa, exceeding the national standards specified in YY0646—2008;

【Outer Box Material】Carbon steel (1.5mm thick) baked plastic powder

【Work Environment】0-50℃

【Work Pressure】-80kpa～200kpa

【Moisture during sterilization】≥80%

【Maximum Stress Resistance Value】-120kpa to 260kpa

【Temperature During Sterilization】Adjustable between 111℃ and 135℃

【Temperature Display】LED Digital

【Microcomputer Control Technology】 This sterilizer is controlled intelligently by a microprocessor, featuring a user-friendly interface, easy operation, and high safety and reliability. All parameters and status during operation are dynamically displayed on a digital screen. Vacuum, water injection, heating, sterilization, pressure release, exhaust, drying, and power off operations are carried out automatically; any abnormal equipment operation is automatically detected and alerted; faults are automatically diagnosed, with over-temperature and over-pressure protection in place to ensure the reliability of sterilization. After sterilization is completed, a buzzer alerts automatically, and the ED display indicates completion.

[t_Lock Mechanism] Before the sterilization cycle starts, if the interlock mechanism is not locked after the door is closed, the door can be closed and opened again. The sterilizer can only start operating once the door is properly closed; during operation, the door of the sterilizer must remain closed. After the cycle begins, if a fault or fault indicator occurs and the interlock mechanism locks up before the chamber is fully released, the door of the sterilizer must remain closed.

【Pulsation Mode】Microcomputer control automatically selects the pulsation frequency based on site conditions, ensuring optimal coordination between temperature and pressure.

【Vacuum Method】Three-stage pre-vacuum ensures faster heating and more thorough sterilization.

【Safety Valve】When the pressure in the sterilizer reaches 240 kPa ± 5 kPa, the safety valve opens automatically to release pressure.

【Overpressure Protection Program】When the pressure in the sterilization chamber reaches 220±5kPakPa, a warning sound is issued and the pressure is automatically relieved.

【Air Leakage】When the sterilizer is tested at various stages, the pressure increase rate should not exceed 0.13kPa/min.

[t_Dynamic Pressure in Sterilization Chamber] The pressure variation within any 2-second interval during the sterilizer cycle should not exceed 1000 kPa/min.

【Vacuum Pump】Utilizes a double-head oil-free vacuum pump with rubber cups. It is simple and convenient, offers rapid vacuum rate, and has a long service life. Ensures that the vacuum level can reach -80 kpa;

【Pressure Sensor】A built-in pressure sensor automatically detects the pressure within the chamber to ensure accurate and effective pressure measurement.

【Temperature Sensor】A built-in temperature sensor automatically detects the temperature within the chamber, ensuring that it remains within an accurate range of ±3℃ from the operating temperature.

【Sterilization Mode】Includes bare instruments, cotton yarn, wrapped instruments, and plastic and rubber instrument products. The default operating temperature is 135°C.

【Automatic Drying】High-performance vacuum drying suitable for various drying requirements; remaining humidity of the equipment is <0.2%.

【Internal Steam Discharge】Equipped with a built-in condensate collector; waste steam is condensed by the condenser and discharged internally, preventing external emission of waste steam, making it safer and cleaner.

【Sealing Structure】The sealing ring is made of silicone, designed to last for 2 years (1200 uses) without aging or deformation.

【Replaceable Parts】Sealing Ring

【Cleaning】Can automatically clean the internal pipelines and steam generator;

【Alarm System】There is a high and low temperature alarm system

【Category] Class II Medical Device
