vehicle inverter power adapter

150WCar-mounted lighter socket power converter

DC 12V to AC 220V
Power: 150W
Input Voltage: 12V
Output Voltage: 220V
Output waveform: Square wave

Usage Method

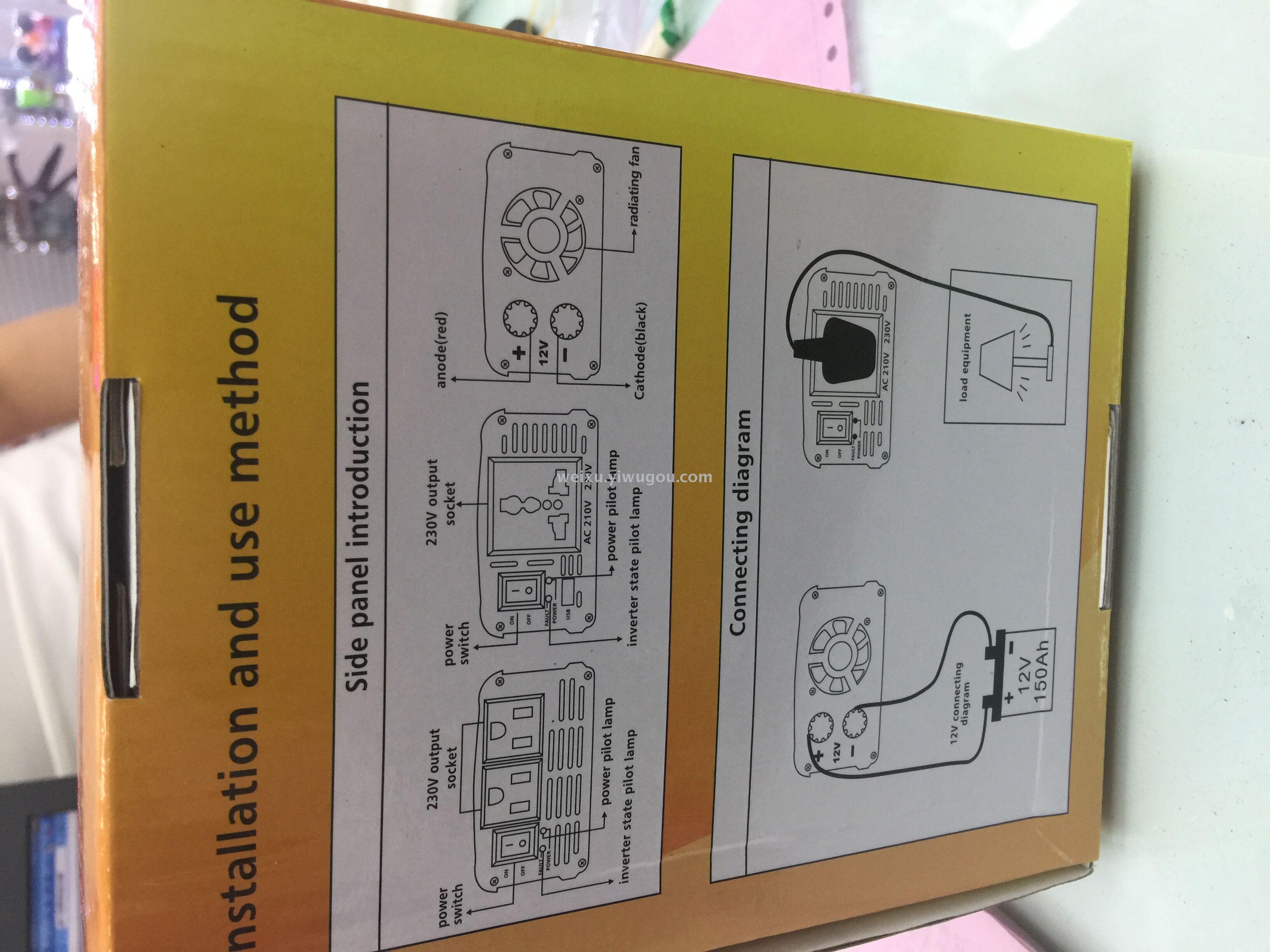

1. Set the converter switch to the OFF (0FF) position, and then connect the wire to the battery properly. The red clamp is for the positive, and the black clamp is for the negative.

2. Confirm that all electrical appliances can operate at a power level no more than 80% of the nominal power. Connect the 220V plug of the appliance directly into the 220V socket at one end of the converter, and ensure that the total power of the electrical appliances connected to the two sockets does not exceed the nominal power.

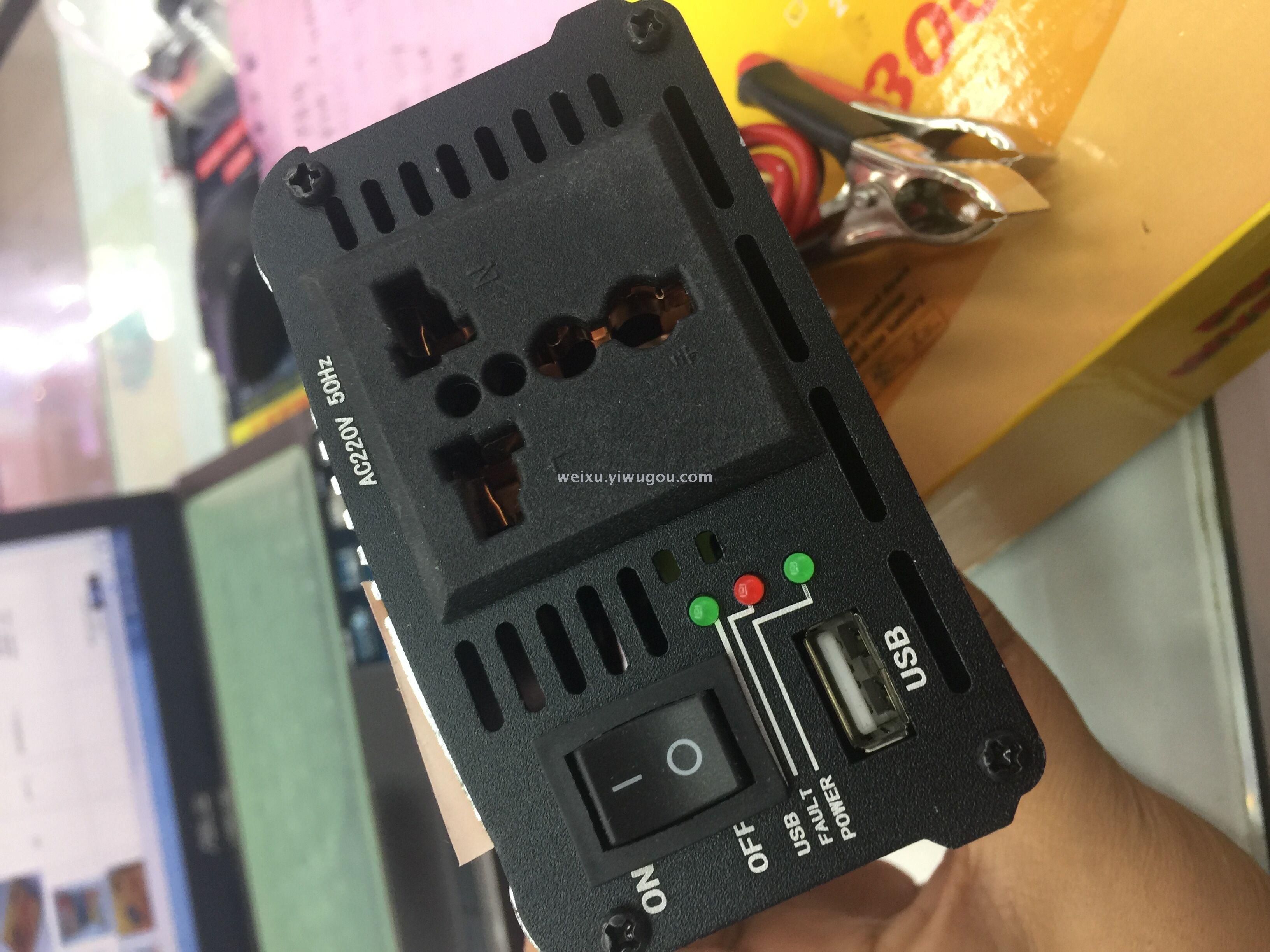

3. Turn on the converter switch. The green indicator light is on, indicating normal operation.

4. The red indicator light indicates that the converter has been turned off due to overvoltage/undervoltage/overload/overtemperature.

In many cases, if the converter alarms or shuts down when it is normally used, it can be restored to normal by charging the battery in time.
