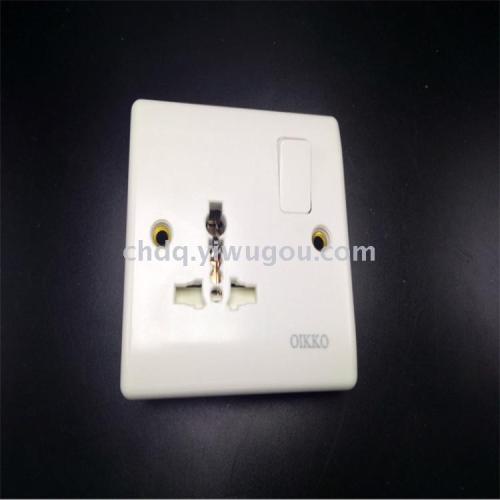

The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
|
Outline size: |
86x86mm |
| Installation size: | 60 |
| Material: | Bakelite |
| Copper: | QSn5.6-0.1 H62 Hpb59 |
Switch Specification
| Lifetime | ≥40000 |
| Heat-resistant | 100 • C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision |
≤0.05M Ω |
Socket Specification
| Lifetime | ≥5000 |
| Heat-resistant | 100 • C / 1h |
| Insulation Resistance | ≥5M Ω |
| Damp Resistance | 48h > 5M Ω |
| Temperature Raise | ≤ 45K |
| Earthing Provision | ≤0.05M Ω |
| Electric Strength | 2000 V ~1 min |
