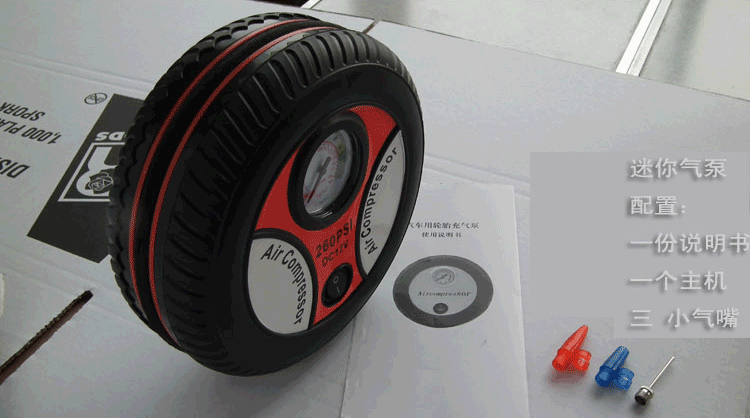

Product Name: car tire pump

Product material: Plastic metal

Product Size: 17.5*17.5 * 6.5CM

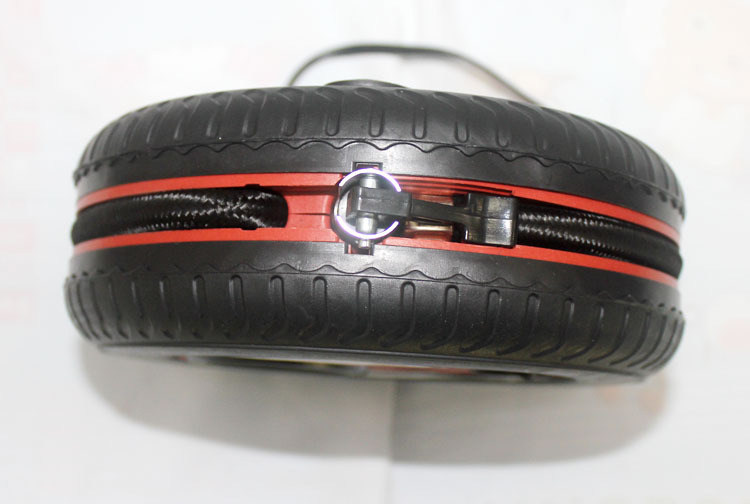

Inflatable tube length: 20CM

Power cord length: 240CM

Product Weight: 500g

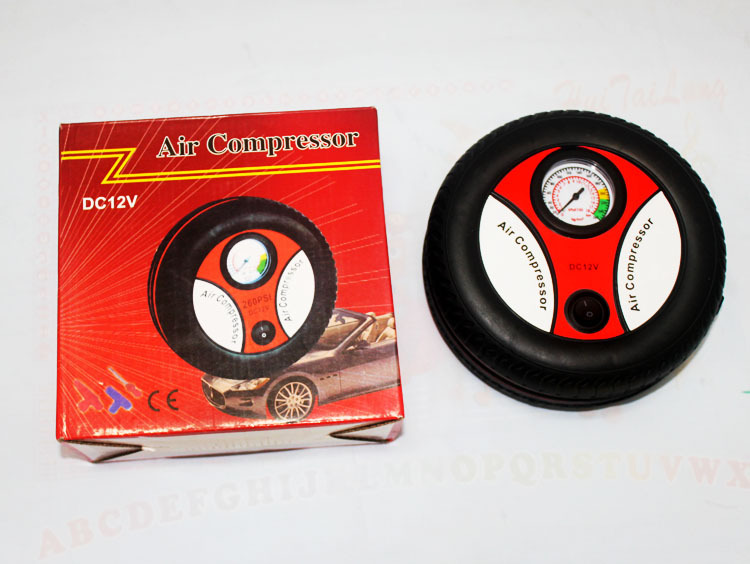

Product Packaging: Color box

Color box size: 18*18 * 8CM

Carton size: 51*39 * 39CM

Packing quantity: 24 PCs/carton

Applicable model: household light-duty vehicle

540 large electric motor 380 small motor

[Advantages of this model]]

1. Small size and beautiful appearance.

2. The inflation speed is fast, and a completely lifeless tire can be filled in 5-7 minutes.

3. Bicycles, motorcycles, ball games, airbed can also cheer up.

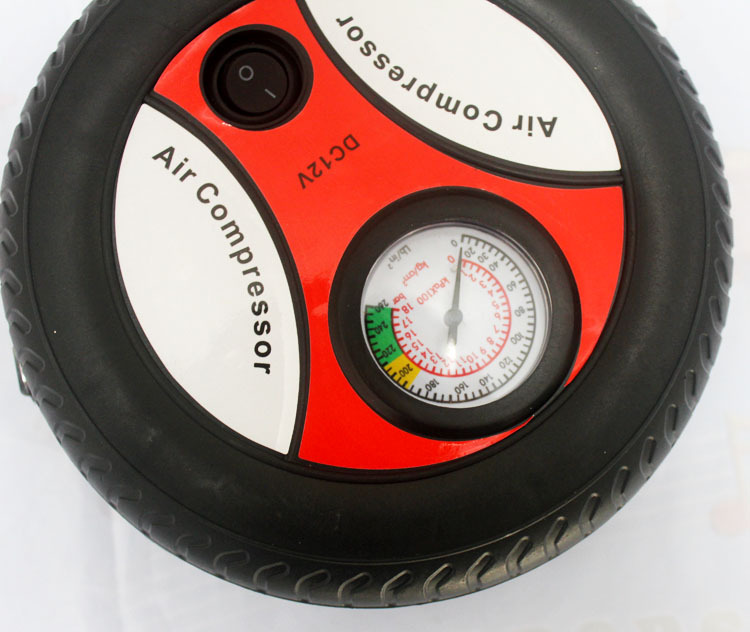

Barometer: 260PSI

Main part material: Plastic

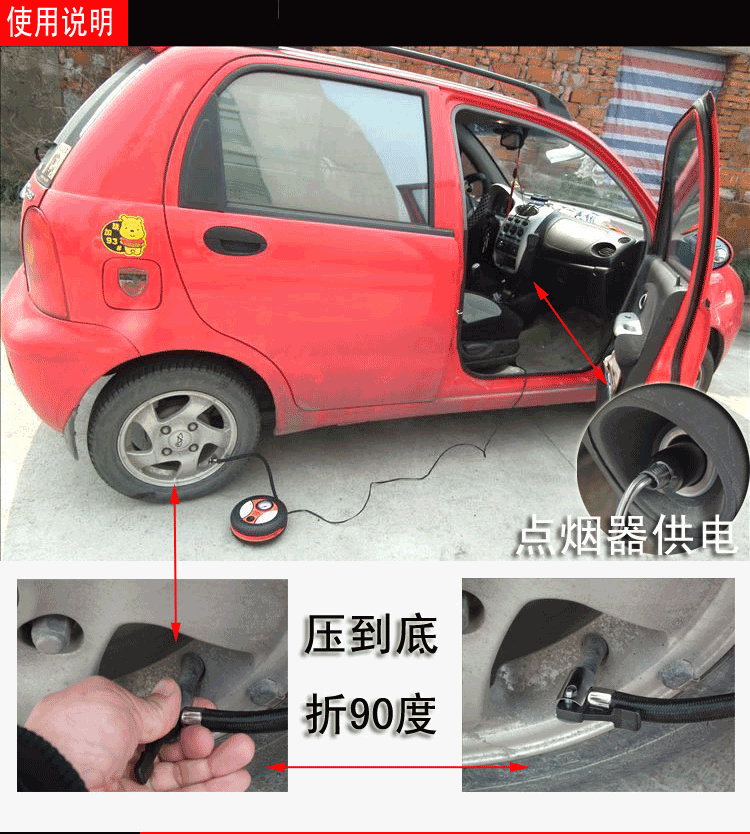

[Usage]] take out the cigarette lighter plug, plug it directly into the car cigarette lighter, turn on the air pump switch, after the air pump is started, plug the air nozzle at the top of the inflatable hose directly into the tire valve, and hear the sound of air leaking from the tire, it indicates that the air has been circulated, and the air nozzle can be tightened to inflate. At this time, the air will no longer leak out.

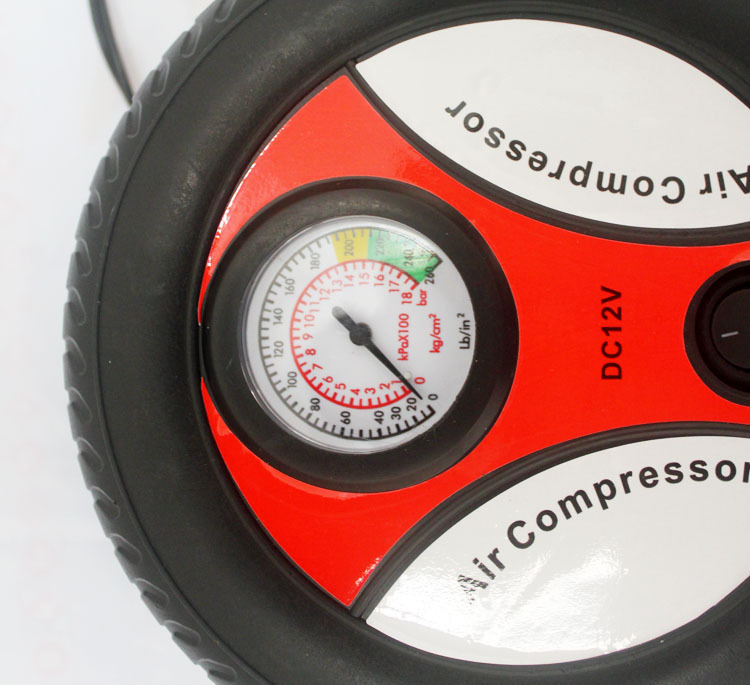

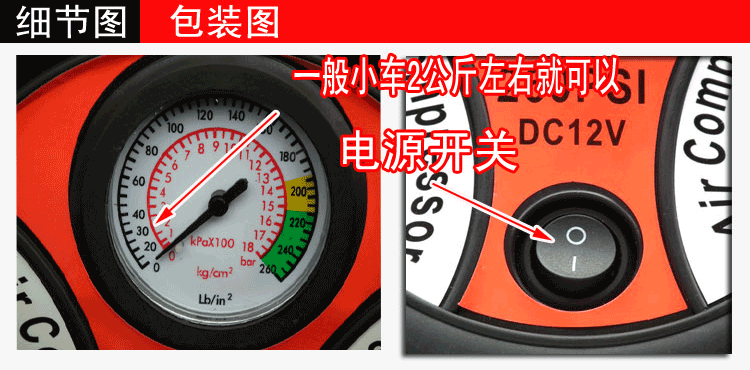

When inflating, the pointer of the instrument increases with the saturation degree of the tire. When the pointer reaches the appropriate tire pressure (generally, the tire pressure of the car tire is 223kpa = 35PSI), take out the plug and air nozzle to complete the work.
Please use the professional ball needle and nozzle provided by this machine to connect with the air nozzle to inflate the ball and other required air equipment.

[Precautions]]1. When using, please start the car engine first to enhance the power, without consuming the power of the car battery.

2. This machine is limited to DC (DC12V12A) power supply, and household high-voltage power supply is not allowed.

3. When inflating, please work continuously for 10 minutes for cooling rest, which can prolong the service life of the motor. When rubber raft is inflated, it can work continuously for 30 minutes.

4. Generally, when the tire is inflated, it can reach 220KPA normal tire pressure in about 3-6 minutes. Big tires will take a little longer. For example, when inflation starts, the pointer of the instrument rises rapidly, which means that the air is not filled into the tire and must stop working and operate again. Otherwise, the instrument and motor will be damaged.

5. When using, people should not leave the body, pay attention to tire pressure at any time, and should not be too saturated.

6. If the car cigarette lighter is not clean and conductive, or fuse blown, the machine cannot operate normally, please make sure that the cigarette lighter is conductive well.

7. This machine should avoid moisture, heavy fall and sand intrusion, and avoid children playing with it to avoid damage.

8. If there is a shutdown phenomenon when using it, this is because the cigarette lighter power supply current is insufficient. Our delivery detection current is above 12A.

This machine is suitable for car and bicycle tires, Ball, rubber raft and other inflatable, and has a wide range of application.
In the expressway, the wild, or anywhere, the car tire suddenly leaks, which can give full play to its emergency function.
Prepare one at any time and put it in the trunk of a car, which does not occupy space and has endless wonderful use.
Car tires keep correct tire pressure at any time, which can save gasoline, protect tires and ensure driving safety.

Unit conversion: 1kg/c? O = 0.98ba (bar) r = 14.2psi (1bf/in2)= 98.0665kpa

1 Atmospheric pressure = 1.03327kg/c? O

Note: Some air pumps are barometer nominal 300PSI, just to attract attention. Actually, it is impossible to reach such a high pressure (20 atmospheres). Generally, the tire pressure is about 2.3 pressures, about 35PSI, generally, the maximum air pressure that the air pump can reach is 7-10, that is, about 100PSI. Because it is a foreign trade product, the product is neutral English packaging.
