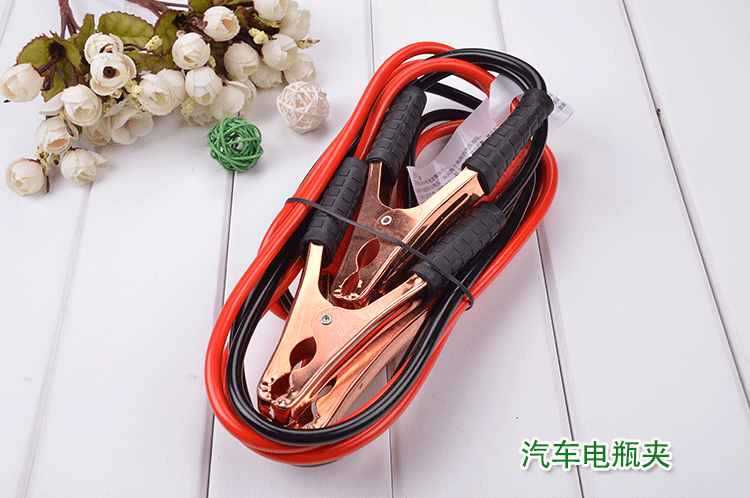

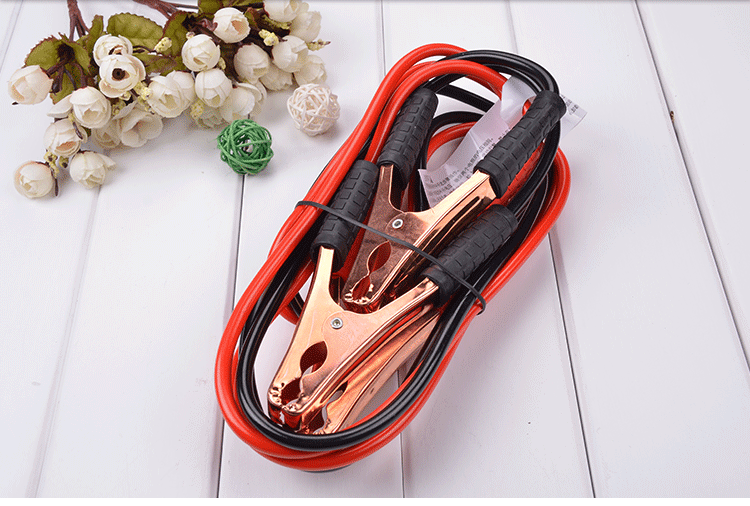

Car Fire Line Crossing Jianglong Car Battery Fire Line Emergency Ignition Wire 500A

[Product name]]:500A set battery cable

[Product description]]:

When your car is out of power, don't worry, take a taxi from the side of the road and get it easily done with two clips. Cars rarely run out of electricity, but occasionally there is no electricity, really anxious. Not afraid of 10,000, just in case, it will be better to wear a battery clip. No worries.

[Product specifications]]:100A,200A,300A,400A,500A,600A,1000A etc.

[Product material]]: PP

[Product piece weight]]:0.6KG

[Product packaging]]: export Packaging

[Instructions]]:

I. The connection procedure is as follows:
(1) first, put the red wire clamp of the starting line in" rescued car" above the positive electrode of the Red battery.

(2) then put the red wire clamp on the other end" rescue Vehicle" above the positive electrode of the Red battery.

(3) put the black wire clamp in" rescued car' on the black negative battery.

(4) then put the black wire clamp in" rescue Vehicle" on the black negative battery.

(5) start first" rescue Vehicle" engine, and then start" rescued car" the engine. If the rescued car still fails to start,

Please check whether the metal contact part has poor contact.

Note: After starting the engine, you still need to remove the starting fire line in sequence, otherwise it may cause short circuit.

II. The procedure for removing wires is as follows:

(1) first" rescued car" remove the black wire.

(2) then" rescue Vehicle" remove the black wire.

(3) and then" rescue Vehicle" remove the red wire.

(4) finally" rescued car" remove the red wire.

This style500A battery cable is foreign trade export packaging.

[Precautions]]:

1. When the car cannot be started without electricity, it can be started through the battery of another vehicle. Bold battery start line,

The maximum passing current is500AMP, generally suitable for displacement2500cc less than gasoline engine or displacement2000cc within

Use between diesel engine batteries.

2, the two cars cannot have any contact, and the electronic system of the two cars must have the same voltage. If the battery is frozen, please do not

Use this boot line.

3. Before connecting, the engine, stereo and air conditioner of the two cars need to be turned off.
