passive linear array speaker speaker fls-212 fls-118sw fls-212h fls-118swh

    Price Negotiable

  • Item No. : FLS-212 FLS-118SW F
Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Yifa Electrical Appliances Firm 14yr.

Contacts:wangChat

Mobile:86-15057912434

E-mail:1665558977@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description

Product Features

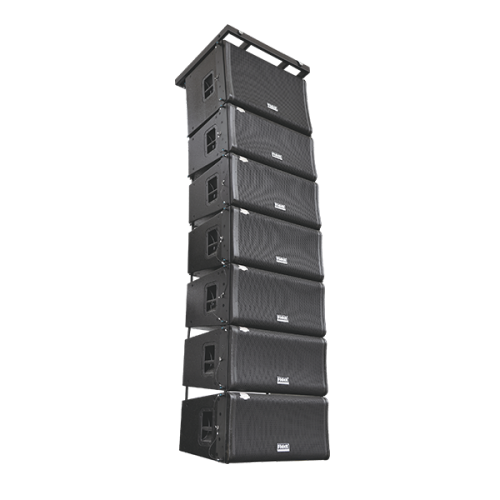

The FLS-212 series is a set of passive line array loudspeaker systems designed for mid-to-long range and high precision. It aggregates years of professional research and production experience in loudspeakers. Through countless strict professional design and experiments, the loudspeaker groups ensure that each frequency range does not interfere with each other, ensuring that the frequency response and sound pressure are uniform within its coverage range, achieving a very clear and consistent sound effect.


The box structure is compact; provides a 100° wide horizontal directivity; uses a combination of imported materials and export units to achieve an ideal sound field effect; uses Russian wood veneer; the box surface is sprayed with wear-resistant water-resistant paint, greatly improving its water resistance; uses imported Japanese material for the high-tone diaphragm; uses world-renowned imported paper cone; uses 2 x 3' voice coils specially made 12' bass and 3 x 1.75" high-tone units; uses an internal precise filtering network; has a unique and efficient high-tone overloading protection circuit; low frequency is powerful and elastic, with clear sound and strong penetration; the iron mesh is processed with multiple coating to prevent rust; the surface screws on the box body are made of stainless steel to prevent rain and rust; the patent aluminum alloy hanger combination; the simple and convenient hanging method makes installation faster.

Suitable for multi-function halls, theaters, stadiums, outdoor performances, etc.

Compatible with the FMA series amplifier, the FLS-118SW has a third-party test report.


Product Parameters

Technical parameters
Model: FLS-212/FLS-212H
Type: Binary Frequency Division
Subwoofer configuration: 12" x 2
High-pitched configuration: 1.75" × 3"
Frequency Response: 40Hz-20kHz
Rated Impedance: 8Ω
Rated power: 700W
Maximum Power: 1400W
Sensitivity: 100dB
Maximum Sound Pressure Level: 133dB
Directionality: Horizontal 100° Vertical 10°
Hanging angle: 0°~10°
Size: 829×616×400
Net weight: 57Kg


Model: FLS-118SW / FLS-118SWH
Type: Low-Frequency Speaker
Bass configuration: 18" x 1
High-pitched configuration:
Frequency Response: 30Hz-1500Hz
Rated Impedance: 8Ω
Rated Power: 800W
Maximum Power: 1600W
Sensitivity: 101dB
Maximum Sound Pressure Level: 135dB
指向性:
Hanging Angle:
Size: 829×666×550mm
Net Weight: 60Kg
