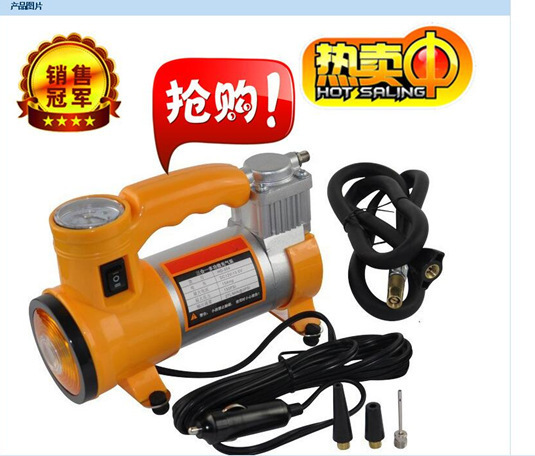

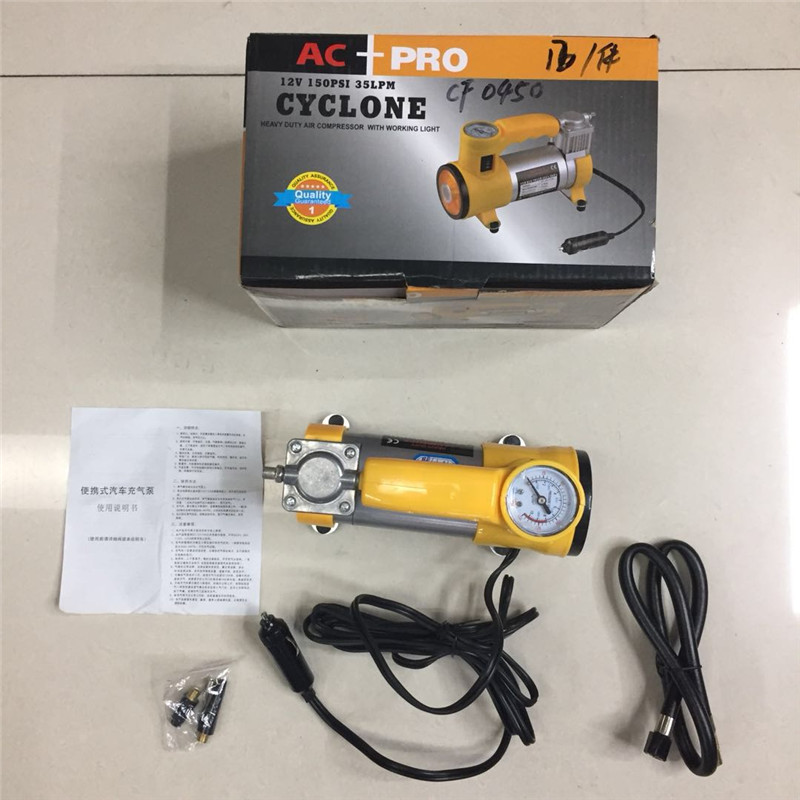

Product features:

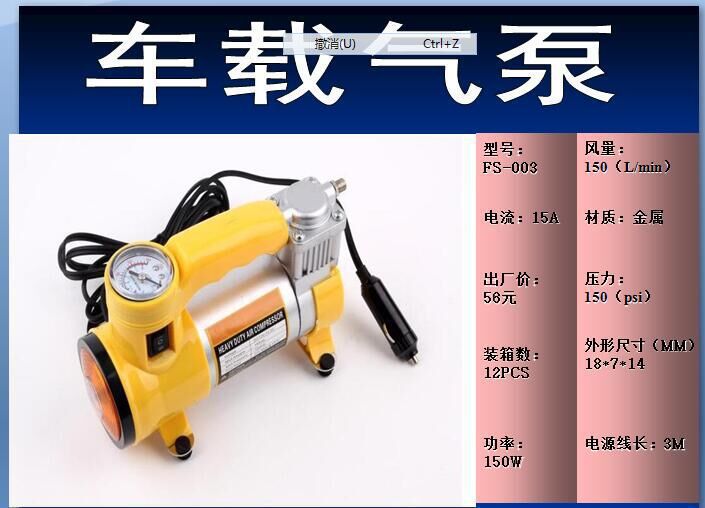

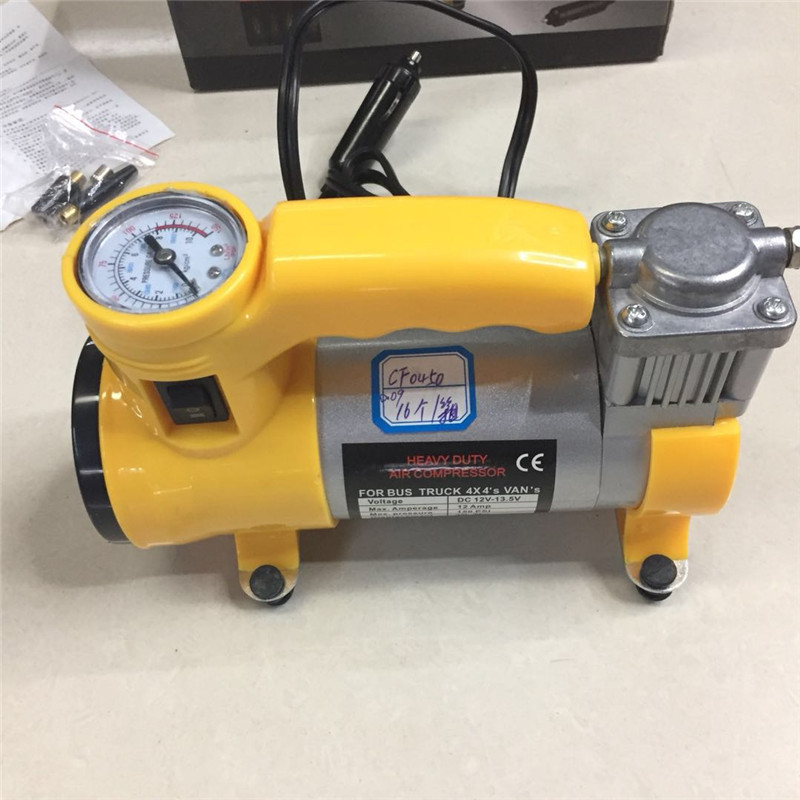

1. DC12V,150PSI high-power metal air pump, can quickly fill the car tire to 35PSI.

2. The power cord has a cigarette holder

3. 1 meter long high pressure rubber hose

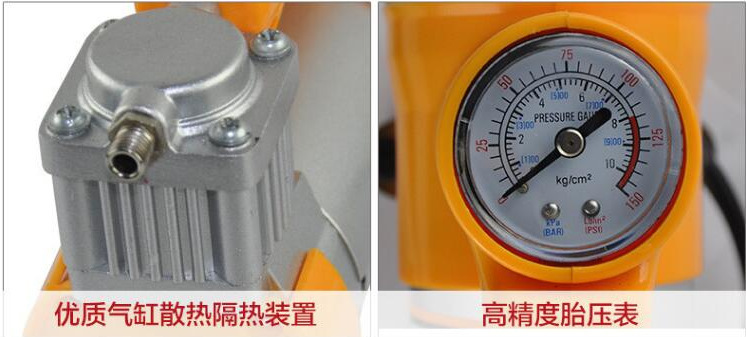

4. 150PSI metal barometer

5. Measure the tire pressure and inflate it all together

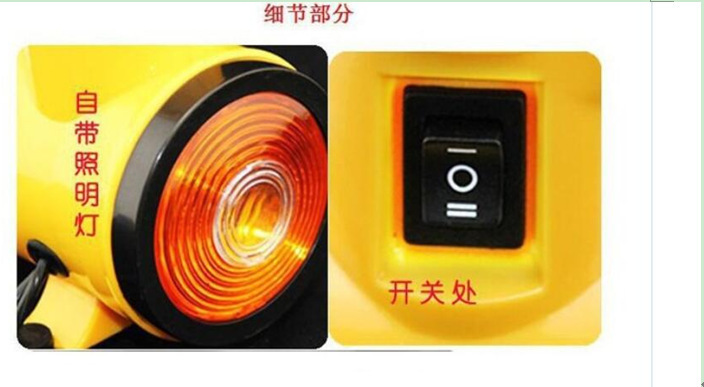

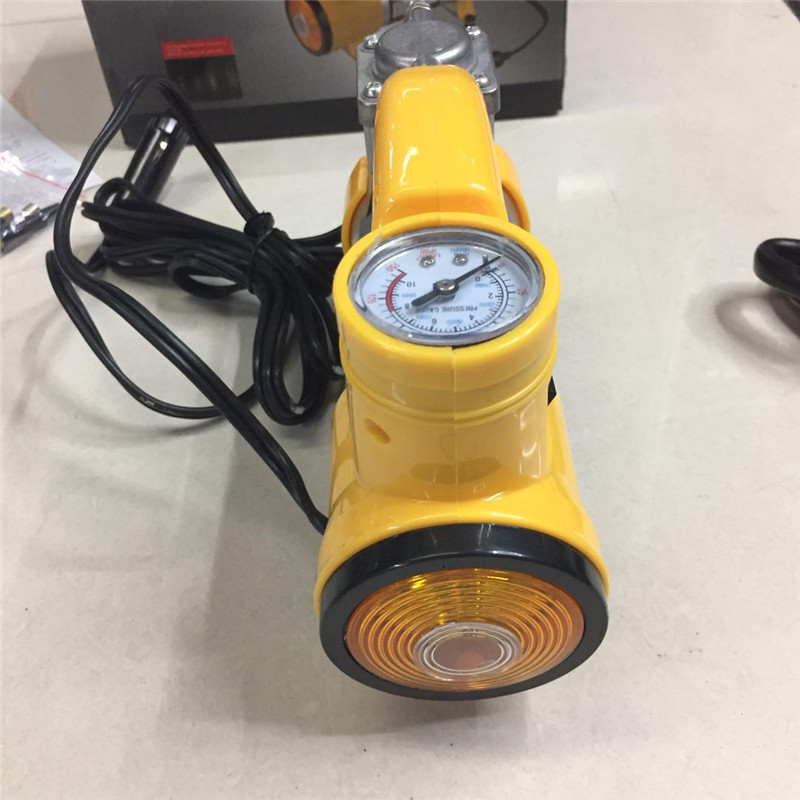

Bring a light!

7. Weight; About 1575 g

Method of use: 1, take out the cigarette plug, plug directly into the car cigarette lighter, the car should be, and then open the air pump switch, after waiting for air pump start-up, the breath of air hose at the top of the mouth plug directly into the tire valve, hear the sound of the air emission by tyres, said air has circulation, can tighten gas mouth, can be inflated, no longer leaking air at this time. 2. When charging, the meter pointer increases with the saturation degree of the tire. When the pointer reaches the appropriate tire pressure (the tire pressure of general car is 2.0kg/cm-2.6kg /CM), the plug and air nozzle are taken out and the work is completed.

Please use the professional ball needle and receiver equipped with this machine to connect with the air nozzle (tighten) and inflate the ball ball and other inflating equipment.

If the goods want to test, you can first put off half of the air pressure of the tire, or start the air pump, and then slowly take the tire to the air nozzle!

Notes and usage:
1. When you use it, please start the car engine first to enhance the power without consuming the battery power of the car.
2. The machine is limited to dc (DC12V 20A) power supply. It is not allowed to use household high voltage power supply.
3. When inflating, please keep working for 10 minutes for cooling rest, which can extend the service life of the motor. A rubber boat can work for 30 minutes while inflating
4. The normal tire pressure of 220KPA can be reached in about 3 minutes when the tire is inflated. Big tires take a little longer. For example, when starting to inflate, the meter pointer rises rapidly, indicating that the air has not been filled into the tire, it must stop working and operate again, otherwise, the meter and motor will be damaged.
6. When using, people should not leave the body and pay attention to the tire pressure at any time.
7. If the car cigarette lighter is not clean and does not conduct electricity, or if the fuse is blown out, the machine cannot operate normally, please ensure that the cigarette lighter conducts electricity well.
8. The machine shall avoid dampness, heavy falls and sand and mud invasion, and avoid children playing with it to avoid damage.
9. The starting current of the machine is very large. Please do not turn on the power switch when the tire is attached. Otherwise, it may burn the fuse of the car due to excessive starting current. The correct operation is to turn on the power first, after the pump starts to work normally, then connect the tire inflation. If you need to restart the machine after power off during operation, you should also unscrew the air nozzle before starting up, otherwise you may burn the fuse of the car.
Note: some pump barometer nominal 300 psi, just in order to guide the eye, actually impossible to such a high pressure (atmospheric pressure) 20, general tire pressure is controlled in 2.3 pressure, about 35 psi, general pump can achieve the most atmospheric pressure in 7 to 10, 100 psi
Usage:

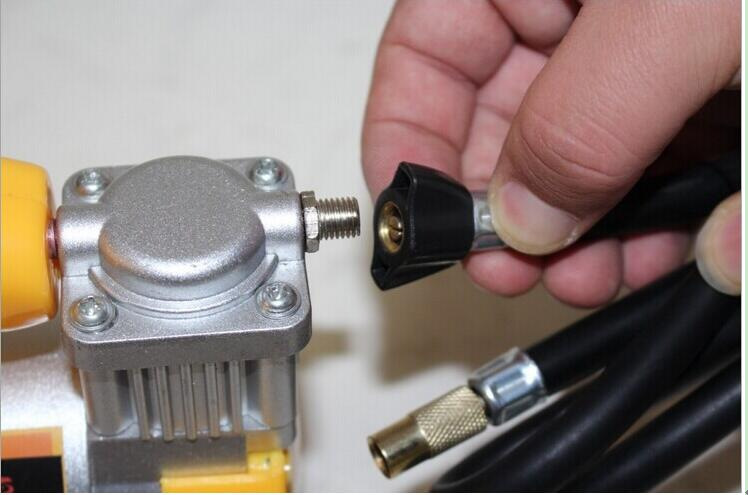

1. Insert the valve nozzle at the top of the rubber hose directly into the tire valve. When hearing the tire's deflating sound, the air has already circulated. Tighten the steam charging knob.
2. Take out the power clamp, red clamp the positive electrode of the battery, black clamp the negative electrode of the battery, or directly insert the cigarette lighter to power up;
3. Turn on the motor and start to inflate;
4. When inflating, the meter pointer starts to rise with the air pressure, and when the large pointer reaches the appropriate tire pressure of the car (generally the tire pressure of the car is 30-40psi), turn off the charger switch, and take out the plug and air nozzle.
5. Please connect the professional ball needle and receiver equipped with the machine with the air nozzle to inflate the ball ball and other air equipment.
