1. Product Introduction

TK102Is installationGPSandGSM/GPRSPersonal Remote Location System for Modules. It is a compact, portable device with accurate remote tracking capabilities. It can be used during mobility to track via GPSGlobal positioning communication satellites accurately obtain position information. Then, the longitude and latitude information of the location are simultaneously sent to your mobile phone. You can use these features to search for and protect lost children, mentally disabled elderly, and fleet management. Moreover, you can also use them to protect and track the transport of valuable goods in the escort vehicle, as well as family pets.

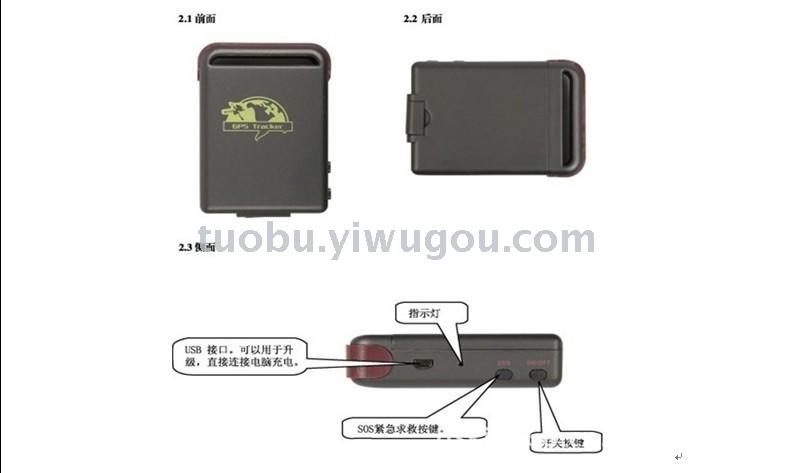

Two, Structural Description

Specification Description

Fourthly, the change of the charging indicator light:

When the host is charging, the light of the charger alternates between red and yellow; when it is fully charged, the light will turn yellow.

Steps for Operation

5.1,SIMCard and Battery Device:

Like a mobile phoneInstall the SIM card and battery as shown, and then close the back cover to complete the installation.

5.2,On/Off：

In the power-off state, Press and hold the power button until the indicator light turns on, then release your finger. Wait for the indicator light to blink a few times before it turns off, which indicates that the device has entered the power-on state. In the power-on state, press the power button until the indicator light turns on, then release your finger. When the indicator light turns off, the device has entered the power-off state.

5.3Power on/off test:

Press the power button lightly, and if the indicator light blinks, it means the device is in an on state; if it doesn't blink, it's in an off state.

5.4,TK102There are two methods of position service, as follows:

5.41Location-based Service Method TwoAttentionTK102Must work outdoors.Please provide the Chinese text you want to translate, and I will translate it into English for you.place    The front should face the sky.）

Open the service platform websiteHello, how can I assist you today?Enter your username and password to operate on the service platform.

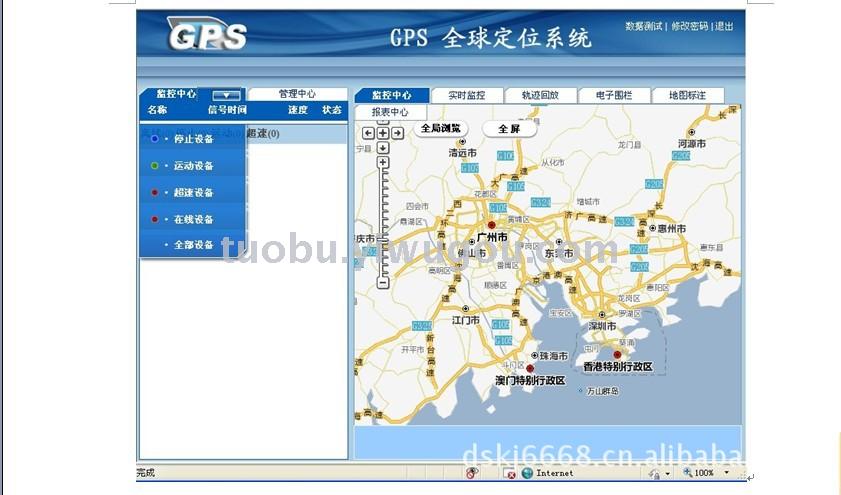

The platform interface is as follows:

5.42Location-based Service Method Three(AttentionTK102Must work outdoors.Please provide the Chinese text you want to translate, and I will translate it into English for you.When placed, the front should face the sky.）

Dial a number using a mobile phoneTK102in theSIMCard number, hear the bell ring10Hang up the phone in about a second, and wait.35In a second, TK102Will return by text message.GPSLocation information, which can quickly determine the physical location of the device with precision within5Minye.

5.43Data format:

Latitude= 22.325926

Longitude= 114.048646

If the content of the data is:

The GPS has no signal and is not receiving.

The GPS signal is too weak to operate.

5.5《5.43Display on the map

5.51DownloadGoogle EarthSoftwarehttp://earth.google.com/Start usingGoogle EarthSoftware(More aboutGoogle EarthSoftwarePlease provide the Chinese text you want to translate, and I will translate it into English for you.请参阅http://earth.google.com/As shown in the figure:

5.52Enter the location data into the search bar as shown in the figure, with a space between the numbers: 5.53Click the magnifying glass button to display the current information.TK102Location. (As shown in the figure)

5.6SOSFunction

5.61SOSDistress Signal Setting:

Use a mobile phone to make a callTK102in theSIMNumber, hear the surrounding sounds3Second, set success when hung up.

5.62send outSOSHelp!

This feature is very practical in emergency situations. PressSOSPress for three seconds,TK102Will send an emergency alert to the predefined mobile phone number.

Six, Attention

Please always follow the instructions:

6.1Please do not subject the device to violent shaking while in use.

6.2Please do not place it in a very hot or cold place.

6.3Please do not paint the equipment, as this may cause internal circuit failures.

6.4Please clean with a dry cloth, do not use chemicals or cleaners.

6.6Use the device in a dry environment, as a humid environment can easily damage the internal circuits.

6.5The device is not supported.3GCard andCDMAThe card used for this device must have the following features:GPRSFunction

6.7Use the battery and charger provided by the manufacturer. Using other batteries and chargers may cause some problems.
