1. Installation Method
1. Motorcycle: Open the battery box and connect the red wire to the positive pole (DC+) of the battery, and the black wire to the negative pole (GND) of the battery. Just fasten the battery box and you're good to go.
2. Electric vehicles: Electric vehicles generally have a voltage of 48-60V. The battery contains four sets, each with 12V. To open the battery box, simply connect the positive pole (DC+) of one set of 12V voltage batteries to red, and the negative pole (GND) to black (only connect one set of 12V batteries).
2. Function
1. Bind mobile phone number:
Bind the master's number, send a text message #711# number#0000#1## (the number is the master's mobile phone number), each device can set a maximum of 9 numbers, set the mobile phone binding number in the order of 1-9
2. Set the alarm method:
A、Send a text message to the device's mobile phone number for dialing the alarm
B. Send a text message to the device's mobile phone number for text message alarm
C、Send a text message to the device's mobile number with the code
3、Query:
Send a text message 6660000 to the mobile phone number on the device, and reply with the current vehicle location.
Send a text message 8880000 to the mobile phone number in the device, and reply with a map link to see the current location; Call the mobile phone number in the device, ring twice and hang up, and the device can automatically return the address information
4、Anti-tamper alarm:
When the main power supply is removed, an alarm message will be automatically sent to the bound mobile phone number.
Note: After connecting the equipment to the main power, the device will be in a normal working state within 3 minutes.
5. Online Inquiry:
Log in to the platform at m.gps588.com (the username is the last 8 digits of the IMEI number, and the initial password is 123456).
Notes:
1. Battery-powered electric vehicles typically operate at 48V, and during high-speed driving with a large amount of power, they can reach about 80V. This can easily damage the equipment, so it is essential to install one to two batteries, positive and negative, when installing. Safe use. Because each battery is 12V, two batteries in series are 24V. Therefore, the controllable voltage of our products cannot exceed 30V.
2. If the installation is not performed correctly, any damage caused to the equipment will be at your own risk.
I:

This product is a trade product, and its domestic positioning is not very accurate. Please note that this product is a base station positioning, not satellite positioning. Please consider the purchase carefully, thank you.

Features:

• 100% Brand new and high quality.

• Quantity: 1

• GSM Quad-band frequency (global use)

• Wide input voltage range: DC9-24V

• 内置振动传感器，智能防盗。

• 内置备用电池（可选），支持非法主电源切断警报。

• SMS and Web portal tracking available.

• 移动警报和监控

• Material: High quality hard plastic

Specification:

• GMS Frequency: 900/1800MHz or 850/1900MHz

• GPRS: Class 12, TCP/IP

• Voltage range: DC 9-38V

• Standby Current: ≈ 0.2mA

• LBS Accuracy: 10m (2D RM)

• Working Temperature: -2°C to +70°C

• Working Humidity: 20-80%RH

Installation:

• Check the product, open the package, and check product model and accessories. If there is something wrong or missing, please contact the distributor.

• For SIM card selection, the terminal needs to insert a GSM SIM card. Please refer to the dealer's opinion for SIM card selection.

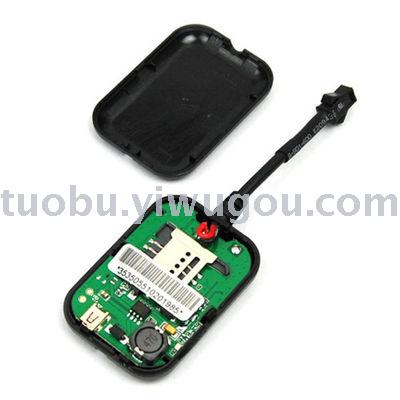

• Install SIM card, use a hand to remove the terminal cover, remove the SIM card slot cover, place the SIM card metal face down into the SIM card slot, then fasten the card slot cover, and finally put on the back shell.

Package Include:

• 1 x GSM/GPRS Tracker (without retail package)
• 1 x Power 3P Line
• 1 x English User Manual
