I. product introduction

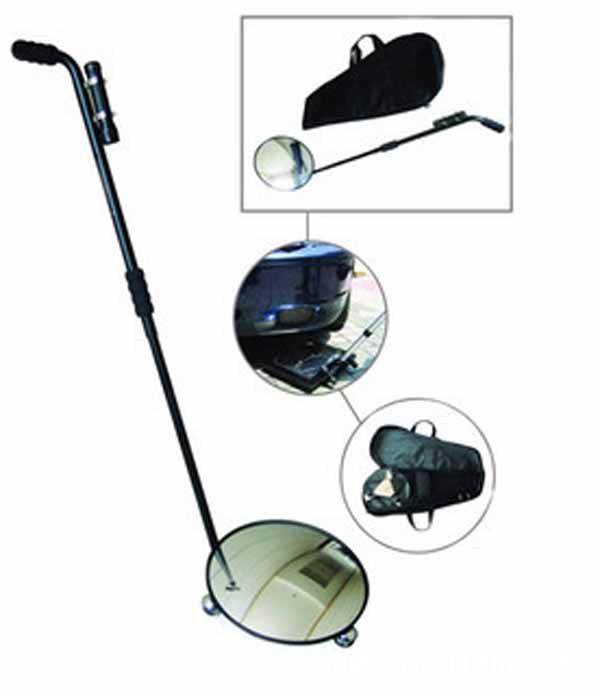

V3 the bottom inspection mirror is applicable to family, garage, school, checkpoint, customs frontier, etc. V3 is economical and portable, simple and clear, with three movable wheels for food support, and can be used to check whether there are any abnormal security tools at the bottom of the car, table, stool, etc. The following is the product introduction of V3 bottom inspection mirror:

2. Product description

1.Mirror:Convex mirror with a diameter of 30CM, with a convex twice magnification effect, has strong toughness, is not easy to break, and is safe and durable. The bottom is surrounded by hard glue, which can effectively prevent the damage to the mirror caused by collision.

2. Minimum detectable height :10cm

3. Grip rod: retractable pull rod, which can reach to the bottom of the vehicle and articles under detection to the maximum extent, with double bead shrapnel and plastic ring double safety positioning, adopts high-quality aluminum structure, light weight, strong and beautiful. The surface is treated with baking outdoor paint in dust-free workshop, with no fading color and odor. Equipped with black foam handle, good grip.

4. Light source: fluorescent lamp and led light source are optional. Fluorescent lamp with natural light source, soft features; Led lamp features long life, high brightness, waterproof, removable as working lamp, etc. Customers can choose the appropriate light source according to their own usage characteristics.

5. Power supply: built-in lithium battery, 1-2 hours charge, can work for 5 to 6 hours.

6. Easy to carry: our product can fold the pull rod, which can be lifted by one person after it is fixed. Can be equipped with easy to carry bags, when not in use can be dismantled and collected.

7. Environmentally friendly and harmless: all materials meet ROHS inspection standards and are suitable for export to other countries.

Technical parameters

1. Pull rod length: 90-140cm

2. Supplementary light source: 9 LED flashlight

3. Net weight: 1.6kg gross weight: 1.9kg

4. Package size: 86*25*32cm(4 pieces/carton, 9kg)

4. Scope of application

V3 the bottom inspection mirror is economical and portable, simple and clear, with three supporting movable wheels, which can be used to check whether there is any abnormality in the bottom of the car, table, stool, etc., and security tools.
