Satlink ws-6906 3.5\" Satellite Finder WS 6906 Finder

Contacts 朱旭兵 Chat

Mobile 86-18906896689

18906896689

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

- Color TFT LCD display with 3.5 \"/ 8.9 inch

- Built - in speaker

- Display the signal strength in percent and as a bar

- Display of signal quality as a percentage and as a bar

- Acoustic signal when a transponder is locked

- Automatic Channel Search TV + Radio

- Reception and playback of dvb-s Free to Air TV programs

- Reception and playback of dvb-s Free to Air Radio Programs

- Using an adapter cable can be connected to the device to the TV set and satellite receiver are used as normal

- Firmware update via RS232 interface

- 7 Menu Languages: English, French, Russian, Arabic, Farsi, Portuguese, Turkish

- Built-in 8.4V / 3000mA/h li-ion battery for up to 6 hours operating time

- Charging time of 4 hours

The System \"capabilities	Fully DVB compliant	yes
LNB/Tuner input	The connector	F type, male
	Frequency range	950 MHZ to 2150 MHZ
	Signal lever	- 65 DBM ~ 25 DBM
	LNB supply	13/18 v, max400mA
	LNB switch control	22 KHZ
	DiSEqC	Ver 1.0
demodulator	The front end	QPSK
	Symbol rate	2 MBPS to 45 MBPS
	SCPC and MCPC Capable	yes
	Spectral inversion	Auto conversion
The System resource	processor	32 bit processor (200 MHZ)
	sdram	16 mbyte
	flash	2 mbyte
	eeprom	8 kbyte
Video decoder	The MPEG 2	The Main Proflie @ the Main Level
	The data rate	Up to 15 m bits/s
	resolution	720 * 576720 * 480
	Video format	PAL/NTSC/SECAM
The MPEG Audio	The MPEG 1 layer 1 & amp; 2
	The type	mono
	From rates	32,44.1 and 48 KHZ
Serial data interface	The connector	The USB type
The power supply	Li - oN '	3000 mA
	Supply voltage	12.6 Volt
	charger	90-240 - v
The Panel connectors	Digital tuner input	F type, male
Physical Specification	The size	9.5 x15.5 x4.5 (cm)
Physical Specification	Weight (Net)	0.5 Kg

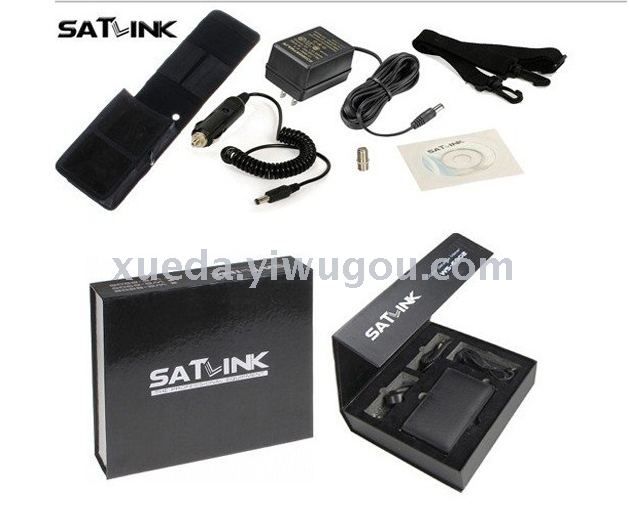

- 1 x WS - 6906 Satellite Finder

- 1 x Black Protective Bag

- 1 x The Upgrade USB Cable

- 1 x strap

- 1 x The car charger

- 1 x The power adapter

- 1 x AV Cable

- 1 x English User Manual

Update time：20180731121127
