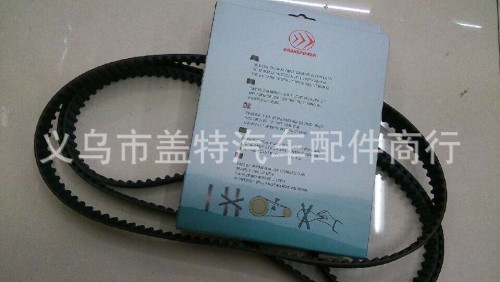

car timing belt \ribbed belt \pk band \v band \bp01-12-205b 107*22 kia pride

Yiwu Grand Auto Parts Co.,Ltd. 15yr.

Contacts HuangJianPing Chat

Mobile 86-008657981069313

E-mail info@chngrand.com

13586963969

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

material: rubber

<t_XXXXXXXX align="center" bgcolor="#8fd2e9" border="0" cellpadding="0" cellspacing="1" style="list-style-type: none;font-family: helvetica;text-decoration: none;" width="100%">

Number

Name

Function

Materials

Top adhesive

Protect the inner anti-body

CR HNBR

Tensile Body

Core materials for transmission force

Fiberglass

Tooth glue

Protect the tensile element and maintain the tape shape

CR HNBR

Tezbu

Maintain the shape of the tape and the teeth

Stretch fabric

Gate Synchronous Belt Features:

It can address issues such as reduced transmission efficiency at high speeds when using chains, and the need for lubricating oil injection, as well as distance restrictions between the driving and driven parts when using gears.
Glass fiber is used as the tensile element; elongation without tape
Excellent heat resistance, oil resistance, and wear resistance
Under conditions of high operating speed and significant temperature changes, it still maintains high transmission efficiency.
During high-speed rotation, it can still maintain stable and safe performance.

Automobile synchronous belt cross-section dimensions:

Model Number	Pitch (mm)	Tooth height (mm)	Height with padding (mm)
ZA	9.525	1.91	4.10
ZB	9.525	2.92	4.50
ZH	9.525	3.50	5.50
YH	8.00	3.04	5.20
ZR	9.525	3.20	5.70
YS	8.00	2.00	5.10
ZS	9.525	3.53	5.70
YA	8.00	2.95	5.20
ZAS	9.525	2.32	4.62
ZBS	9.525	2.76	5.6
S8M(YU)	8.00	3.5	5.30
FS	9.525	3.5	5.35
MY	8.00	3.6	5.20
MR	9.525	3.54	5.69
RU	9.525	3.41	5.40
ZLB	9.525	2.70	5.5
