model

R003

The operating system

Compression technology

New optimized h.264 BaselineProfile compression algorithm

video

A sensor

1.3 million CMOS sensors

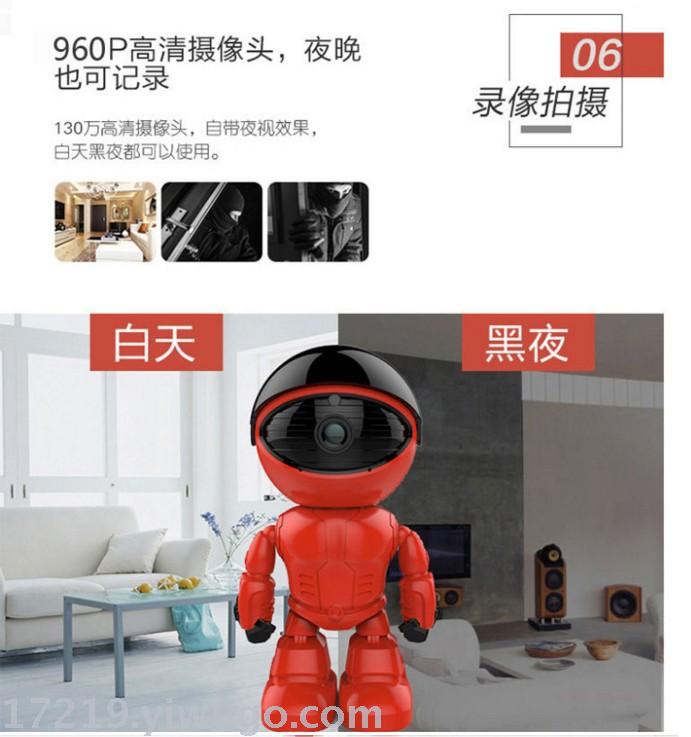

The resolution of the

1280 * 960

Frame rate

1-15 FPS

Minimum illumination

Daytime mode 0.1LUX, night vision mode 0.01LUX

Signal to noise ratio

P 38 db

CMOS performance

Support automatic white balance, automatic gain control, automatic backlight compensation

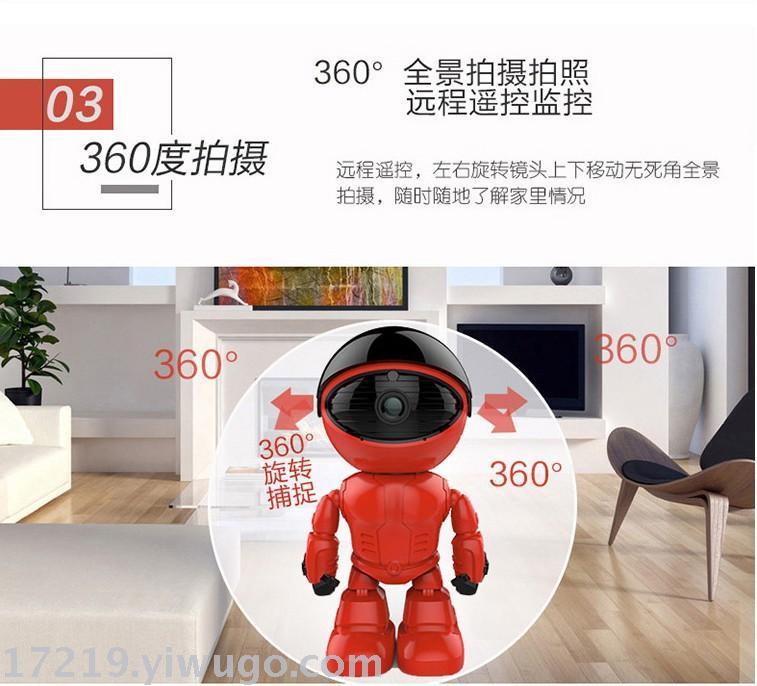

Lens/visual Angle

1.8mm megapixel @f2.0/74 '

audio

Coding standards

amr

Audio input

Supports -38db microphones

Tf card

TF card storage

There is a TF card slot with a maximum capacity of 128G memory card

The video management

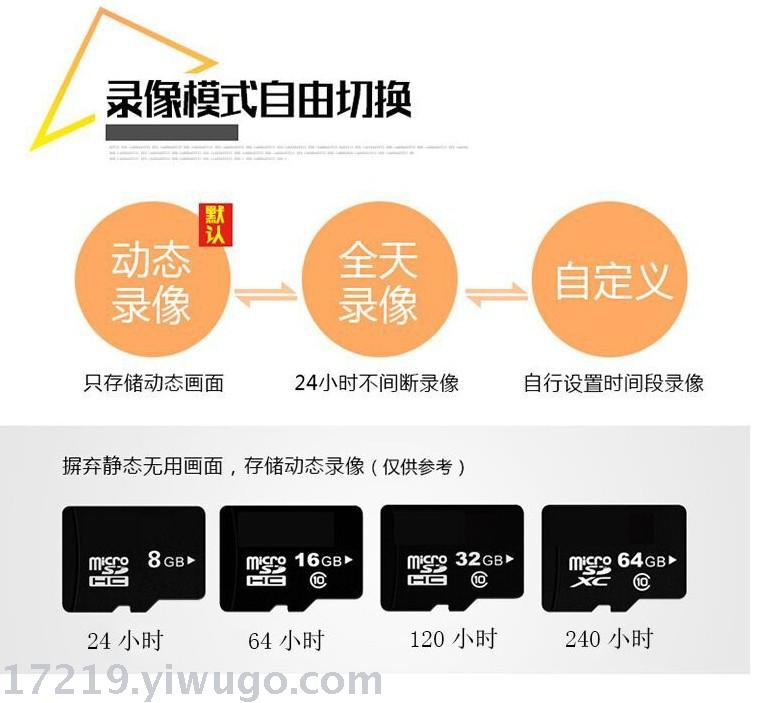

Video mode

Manual recording, timing recording, alarm recording

network

Network protocol

TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P, etc

wireless

Wifi802.11b /g/n wireless network

Call the police

Motion detecting

support

The app

Yoosee

other

The power supply specifications

5 v2a

Working temperature

- 10 ℃ to + 50 ℃

Working humidity

80% RH or less

packaging

Weight per package (g)

430 g

Single package size (mm)

250 * 90 * 170

Packing weight (kg) /22PCS in FCL

14.2 kg

FCL package size (mm) /22PCS

540 * 480 * 420
