pvc wiring duct blue gray plastic pvc line wiring duct flame retardant trunking distribution cabinet trunking wholesale

【Specification】: Customized

【Material】：Hard PVC from South Asia

Injection Molding

【Applicability】: Electrical for industry and agriculture

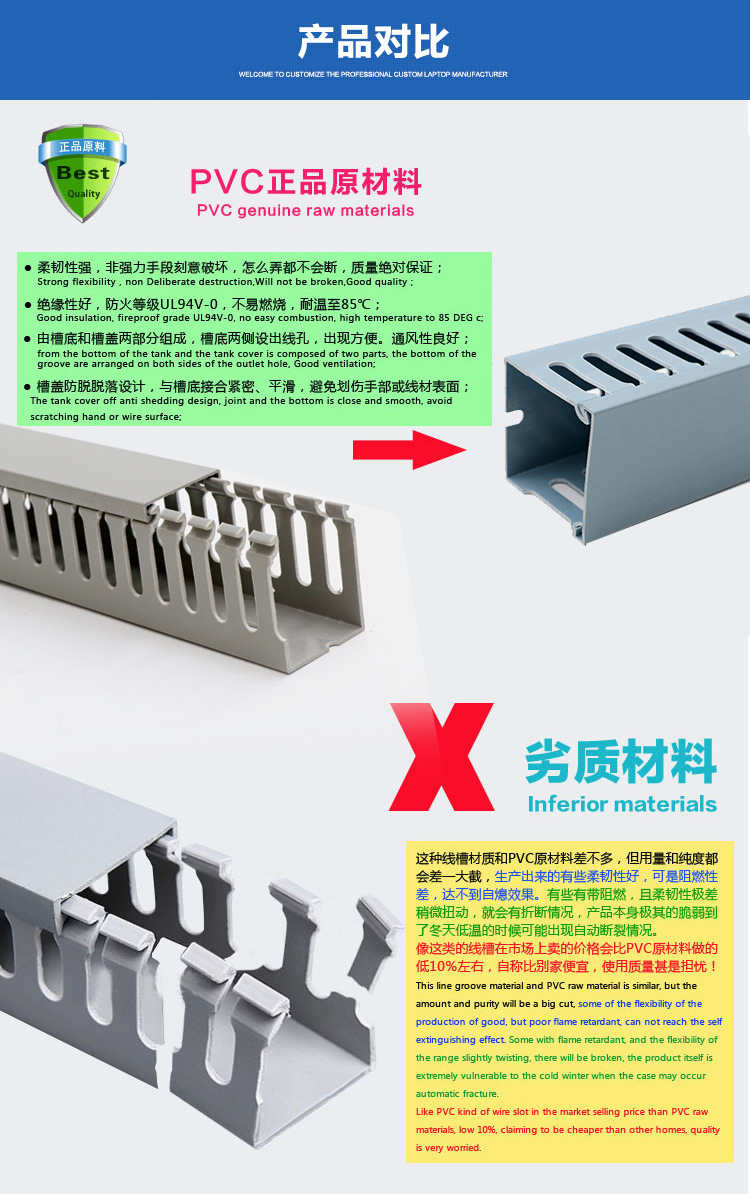

Material: Hard PVC from South Asia, good insulation, non-combustible, temperature resistance up to 85 degrees.

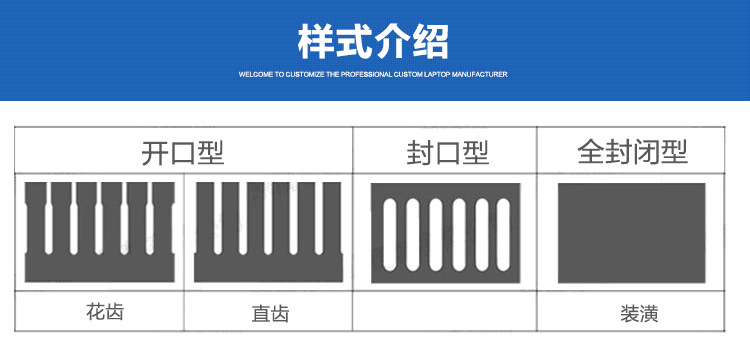

Construction: Composed of a trough bottom and a trough cover, with outlet holes on both sides of the bottom trough. The teeth are resilient and not easily broken.

Model Specifications: 30x15, 30x20, 30x25, 30x30, 30x35, 40x40, 50x20, 50x25, 50x30, 50x35, 50x40, 50x45, 50x50, 50x55, 50x80, 80x50, 80x80, 80x100. Standard length: 2 meters. Customized other specifications and lengths based on quantity.

Wire trays are commonly known as line trays, wire trays, square wire trays, plastic wire trays, open wire trays, pressure wire trays, wire trays, busbar trays, decoration wire trays, and electrical wiring trays. They are mainly used for internal wiring of electrical equipment (such as wiring in distribution cabinets and boxes), and this product provides mechanical protection and electrical protection for the conductors within it at a voltage of 1200V and below. After using this product, wiring is convenient, the layout is neat and beautiful, installation is reliable, and it is easy to find, maintain, and replace lines.
Made of PVC material, the wire channel teeth have good anti-bending properties, smooth joint surfaces, and the 90-degree wire channel is less likely to break. The oxygen index is greater than 40, which can prevent the spread of fire and extend the protection time of the circuit. The working temperature can be maintained at -25 degrees to 75 degrees. It has features such as insulation, anti-arc, etc., making you feel at ease when using it.

Product specifications include: Note that the height * width is 20*15, 20*20, 20*25, 20*30, 25*25, 30*15, 30*20, 30*25, 30*30, 30*35, 30*40, 30*45, 30*50, 35*25, 35*30, 35*35, 40*25, 40*30, 40*35, 40*40, 40*45, 40*50, 40*60, 45*25, 45*45, 50*20, 50*25, 50*30, 50*35, 50*40, 50*45, 50*50, 50*55, 50*60, 50*80, 50*100, 60*25, 60*30, 60*35, 60*40, 60*45, 60*50, 60*55, 60*60, 60*80, 60*100, 65*25, 65*45, 65*65, 75*75, 80*25, 80*35, 80*45, 80*40, 80*50, 80*55, 80*60, 80*80, 80*100, 100*50, 100*100.
