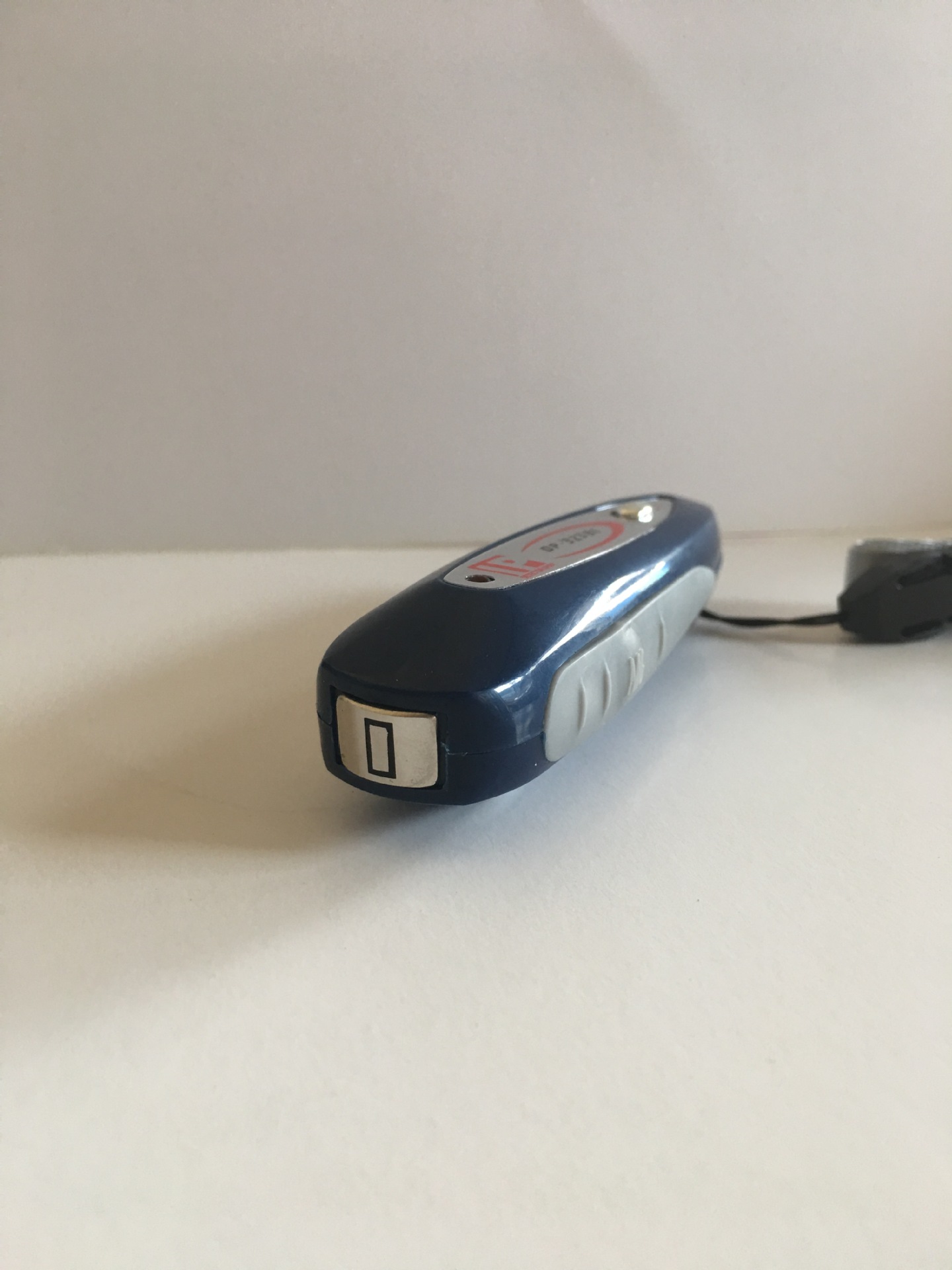

large magnetic head voice 2 in 1dp-323 violet money checking light pen portable money detector

Technical parameters:

Power Source: 4 AG13 button cell batteries (randomly assembled)

Dimensions: 88*22*22MM

Packing Method: Absorbent Plastic Cardboard

Packing Quantity: 200 pieces per box (containing 4 medium boxes)

Packing Size: 440*310*405MM

Gross Weight: 12KG

Function: The large magnet mini currency detector has UV detection, magnetic and security line detection, and is powered by 4 AG13 batteries. It is suitable for detecting counterfeit currency in countries around the world.

Instructions:

1. Remove the battery insulation sheet (the machine is already equipped with a battery).

2. Press the UV key (UV), and direct the ultraviolet lamp at a distance of about 10 centimeters towards the position of the "People's Bank of China" bank name directly below the front side of the currency. You can see the golden fluorescent denomination number pattern on the currency;

3. Press the magnetic switch (MG, located on the side). The red indicator light on the front will turn on. You can place the end of the magnetic head against the magnetic area of the coin and rub it back and forth quickly in a circular motion. If the machine has a magnetic field, it will emit a sound.Magnetism detection is normalThe sound of "tap". (The magnetic area of the RMB is distributed on the security line and the black ink of the serial number)

4. Replacement of Batteries: When the instrument's tone becomes softer or the UV light becomes dimmer, replace the batteries immediately; the steps are as follows:

First, unscrew the screw on the battery cover to remove the used battery, then insert the new batteries (4 pieces of AG13 button batteries), and finally close the battery cover and tighten the screw.
