Product details

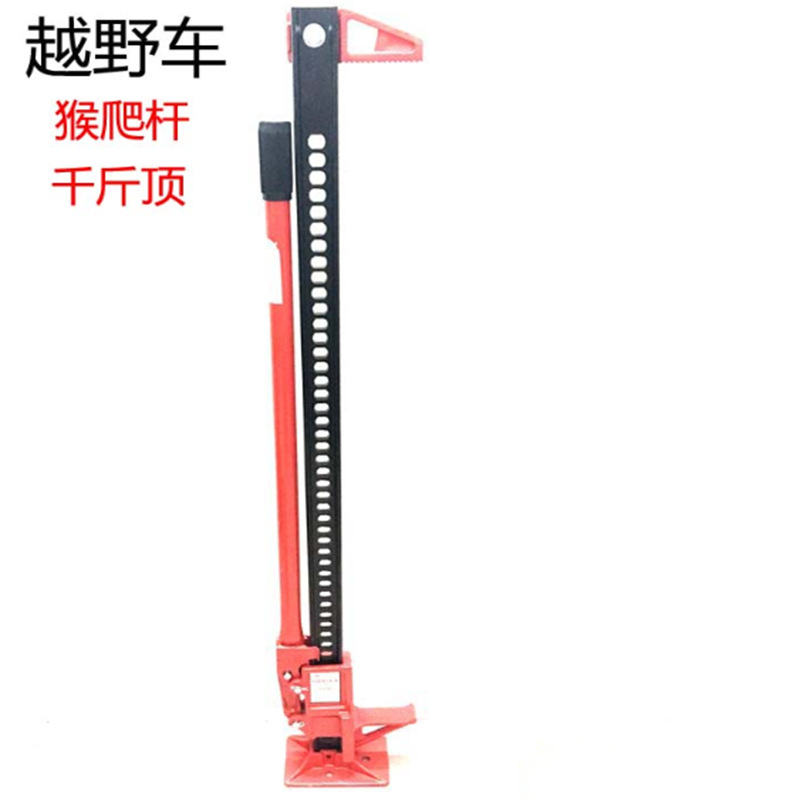

Name:48 \"/60\" farmer's jack

Material: steel

Size and specification:
Height: 122cm (about 48 inches) Net weight: 14 kg  Gross weight: 15.5 kg

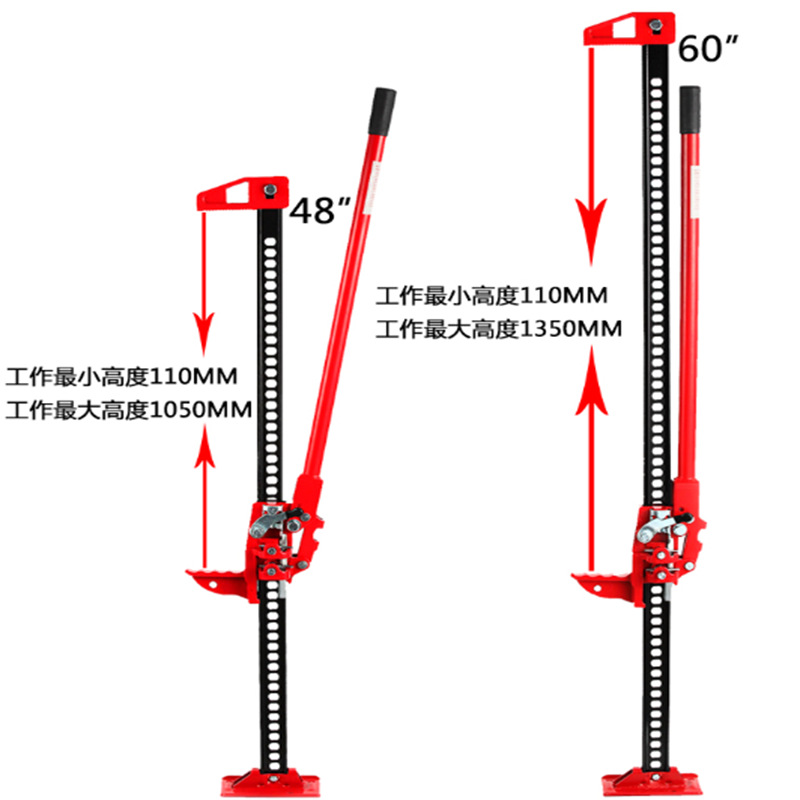

48 \": maximum load: 3 tons (7000lbs) lifting range: 11cm to 105cm

Height: 152cm (about 60 inches) 16 kg net weight:  Gross weight: 17.5 kg

Maximum load: 3.5 tons (7700lbs) lifting range: 11cm to 135cm

Base size:18 cm * 12 cm

Lifting position size:10 cm * 4 cm

Arm length:86 cm

Carton packing size:125/153 * 25 * 15 cm

Operation steps:

Before use: check your off-road jack first, including if the pin is broken, if the keyhole in the support rod is blocked, and make sure people around the car are in a safe position before starting to shake the handle.

Jacking:

Pull up the handbrake to stop your four-wheel-drive, preferably wedged under the wheels with a log or rock so the car doesn't slide on the road.

2. Keep the crank upright when setting up the jack.

3. Place the jack on a firm, flat floor. If the ground is soft or sandy, you need to find a way to add something like a base, like a concrete block or a brick.

4. Move the reversing lock to the position of \"UP\".

5. Grasp the crank and lift it up until the jack nose just reaches the supporting point. Be careful not to use the hollow tube as a support point when it is fragile or easy to slip off due to insufficient contact.

6. Hold the crank with both hands and shake it up and down carefully. When shaking the crank downward, the vehicle will be jacked up. Watch the vehicle at the same time for any slippage and other movement. If you find instability, stop immediately. Also, do not use extension bars on the crank, as other mechanisms are not designed to handle these loads.

7. Do not lift the raider buggy to an unnecessary height. The higher you go, the more unstable the operation will be. In general, do not lift the tire 5CM above the ground.

8. When you lift the car up, remember to hold the crank in an upright position with a grip.

If you want to change a tire, don't just rely on off-road jacks. Make sure the tire is wedged in, then put rocks or logs on the bottom of the car, then slowly place the car on these cushion inserts, and finally change the tire.

Lowered:

1. When you lower your cross-country jack, have at least 150 pounds of pressure on it or it will slide off the support bar.

2. First, push the crank to the upright position.

3. Then, unplug the reversing lock to the \"DOWN\" position.

4. Start shaking the handle up and down. Never lean your body or face against the top of the handle.

Maintenance of off-road jack:

Although the cross-country jack is an all-metal tool, you still need to take care of its maintenance. Clean up after use to prevent pin hole blockage and apply a layerWd-40 universal anti-rust lubricant, or lanolin, is actually a good choice for white lithium. If you are careful, you can put it in a coat.
