SYP-I and SYP-IIK: the difference between the two is on the oil pump:
SYP-I is sealed welding oil pump: the vehicle has compact design, simple and convenient operation, high-strength and high-quality steel plate, stable lifting, full load drop without impact force, three-section handle, high cost performance.

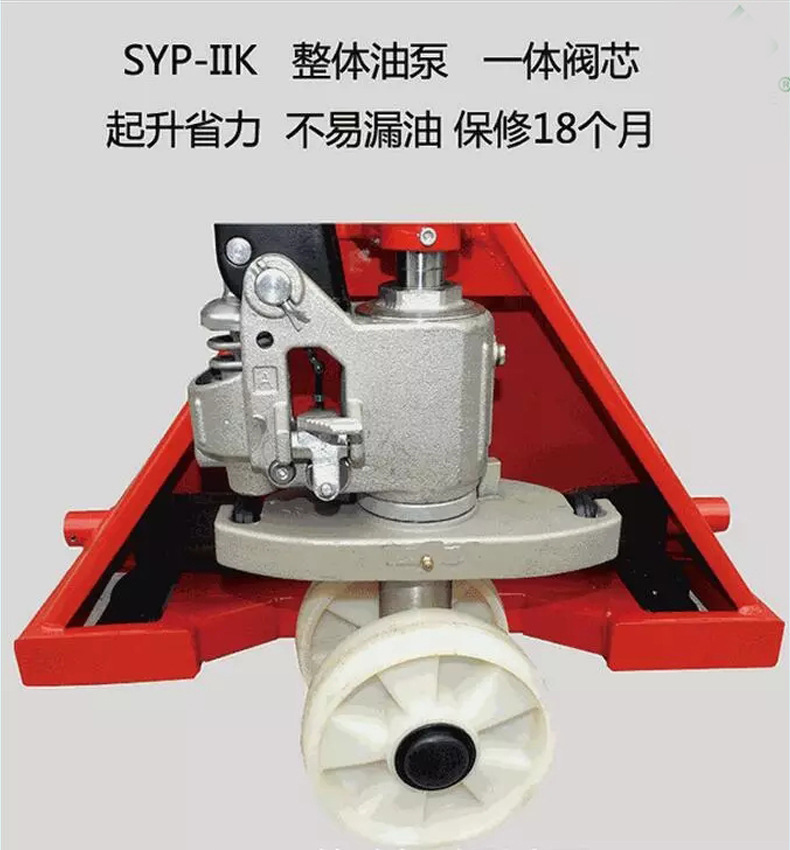

SYP-IIK is an integrated oil pump: imported high-quality steel is adopted, the vehicle design is light, the operation is simple and convenient, three-section plastic-coated handle, lifting, median, descending, nylon wheel, polyurethane, rubber wheel, single wheel or double wheel can be selected.
|
Project/Item |
Unit/Unit |
SYP-IIK 20 |
SYP-IIK 25 |
SYP-IIK 30 |
|
|||
|
Rated load |
kg |
2000 |
2500 |
3000 |
|
|||
|
Fork lower height |
MM |
75 |
85 |
75 |
85 |
75 |
85 |
|
|
Fork height |
MM |
190 |
200 |
190 |
200 |
190 |
200 |
|
|
Up to lifting height |
MM |
≥ 110 |
|
|||||
|
Fork outer width |
MM |
520/540/685 |
||||||
|
Fork length |
MM |
915/1100/1150/1220 |
||||||
|
Fork size |
MM |
160 × 50 |
|
|||||
|
Load-bearing single wheel |
MM |
**74 × 93 |
* 80 × 93 |
**74 × 93 |
* 80 × 93 |
**74 × 93 |
* 80 × 93 |
|
|
Load-bearing double wheel |
MM |
**74 × 70 |
* 80 × 70 |
**74 × 70 |
* 80 × 70 |
**74 × 70 |
* 80 × 70 |
|
|
Steering wheel |
MM |
* 180 × 50 |
* 180 × 50 |
* 180 × 50 |
|
|||
|

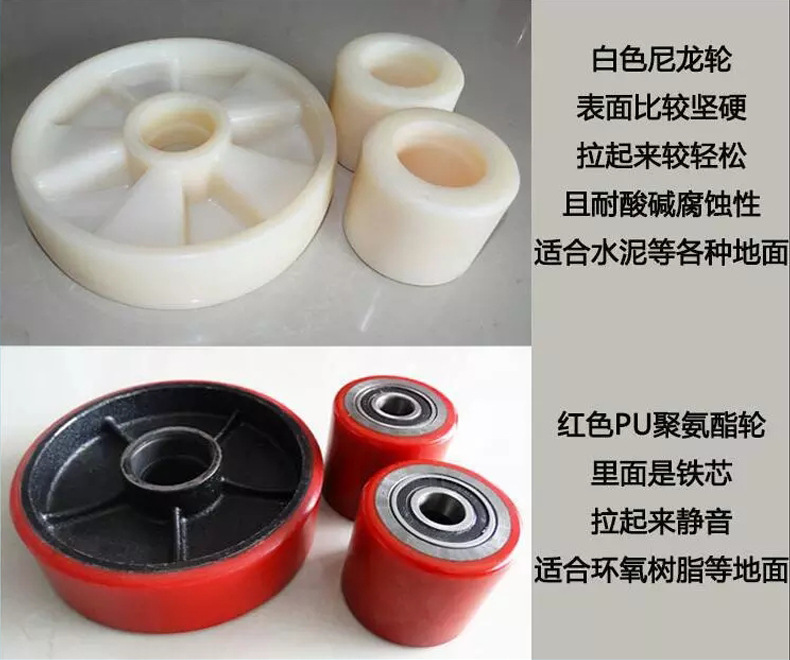

Wheel material |
|
Nylon/PU |
||||||
