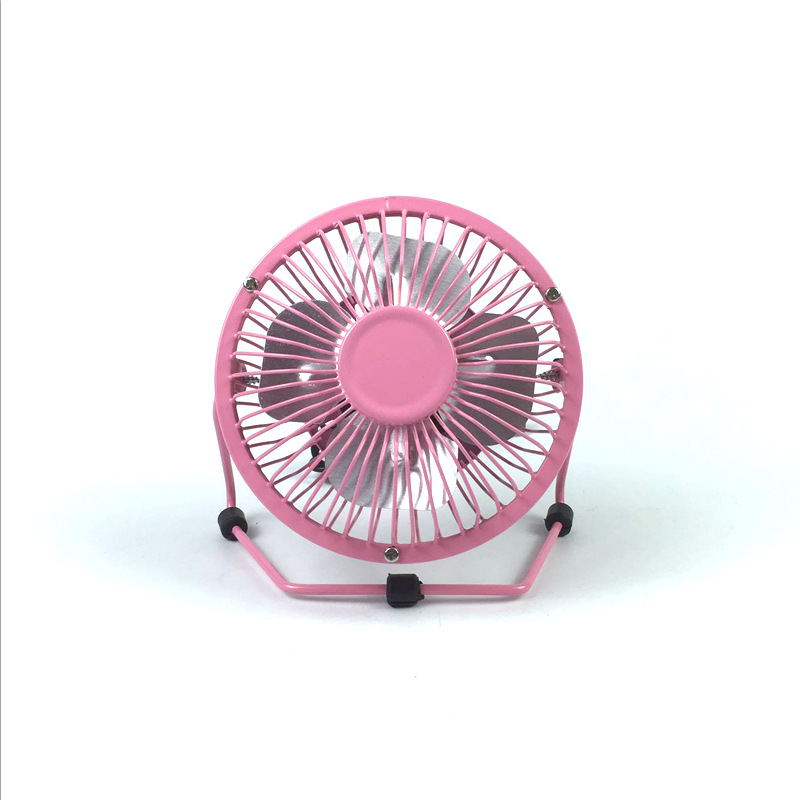

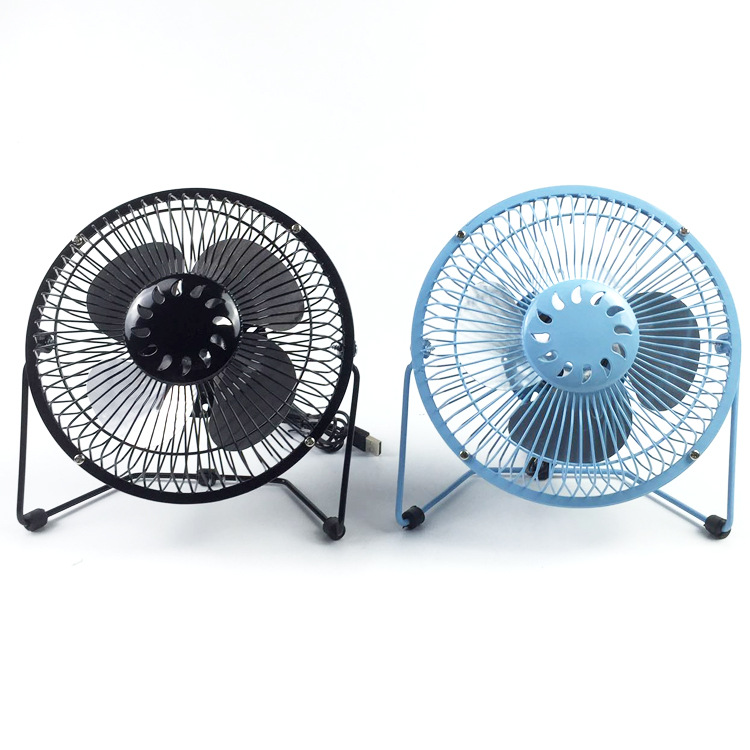

| pink | CN¥ 6.5 | 9910 pcs available |
|

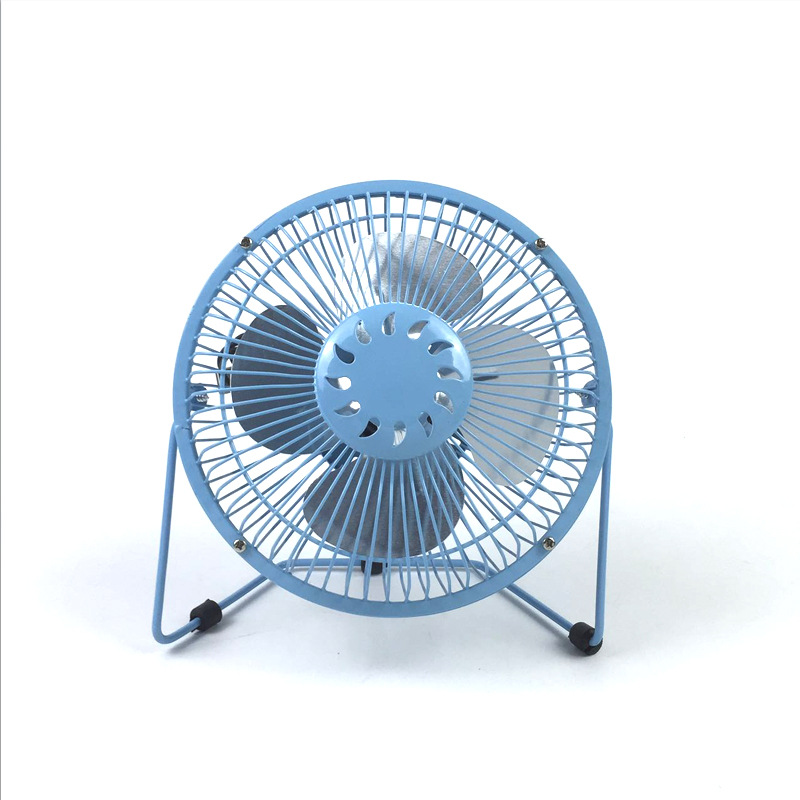

| blue | CN¥ 6.5 | 9910 pcs available |
|

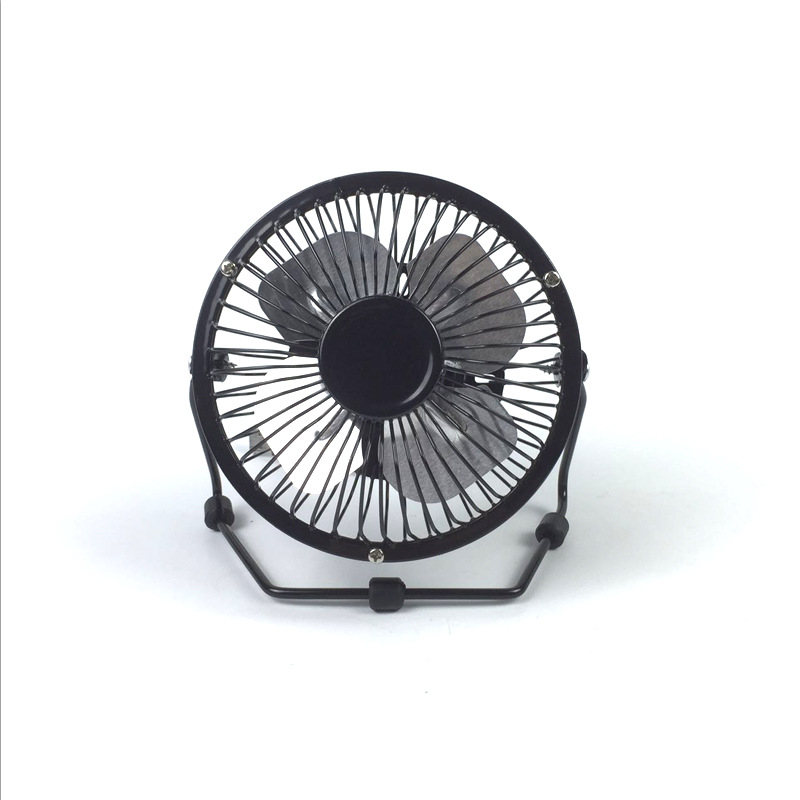

| black | CN¥ 6.5 | 9910 pcs available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.
Xianbin Gift Small Appliances and Supplies Merchandise Line 14yr.
Contacts:Zhan Zhijian Chat
Mobile:86-15868986136
E-mail:10545469@qq.com
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
Welcome to Firebird E-commerce Trading Company
Ordering Hotline: 1817381533

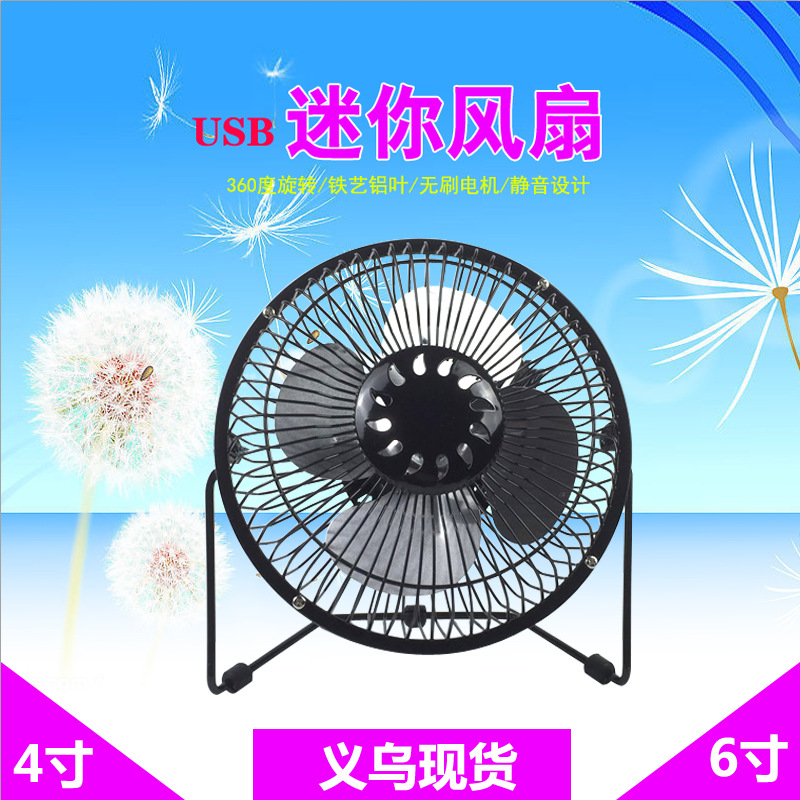

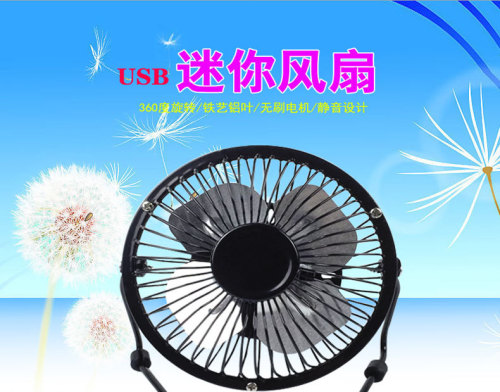

This USB mini fan has a size of 4 inches and is available in a quantity of 60 pieces per box. The outer box dimensions are 62CM*49CM*48.5CM.
Gross weight of the full case: 23kg
Color box size: 150*95*155 (MM)

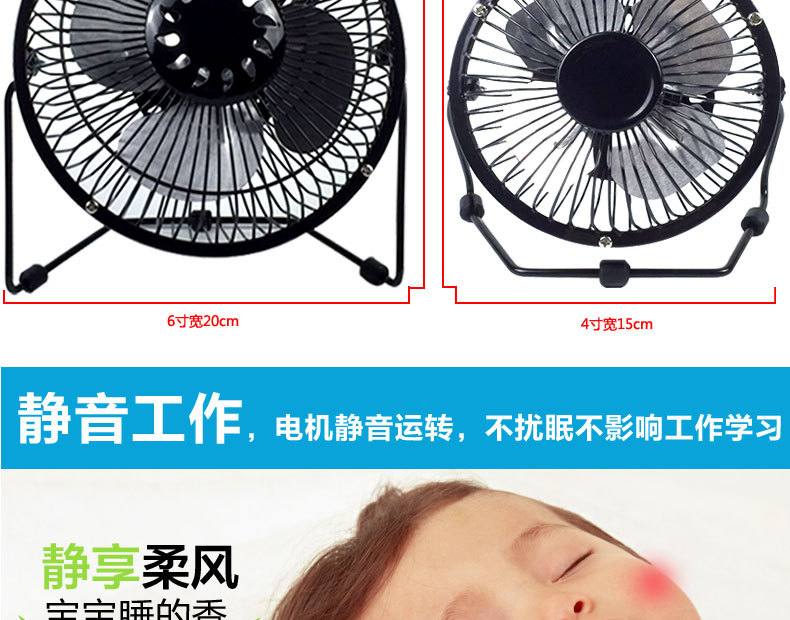

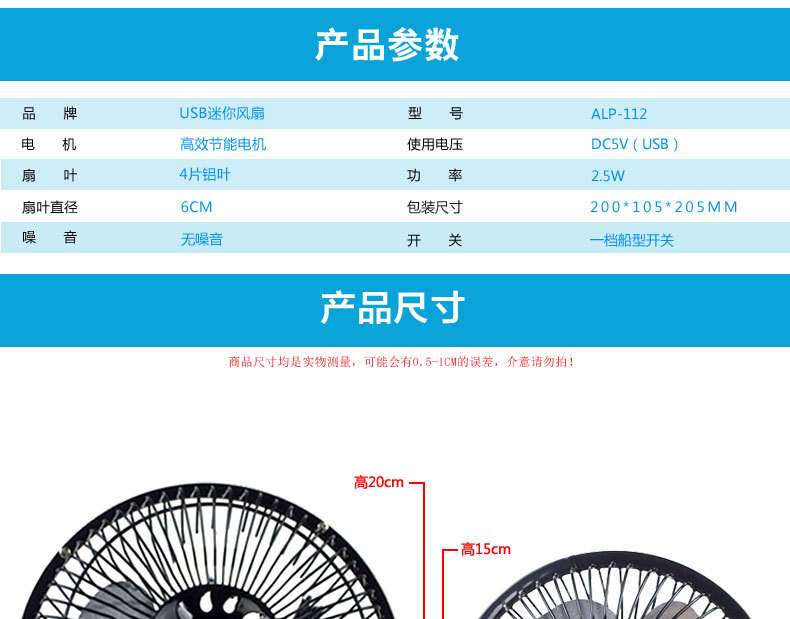

6 inches, 36 pieces per box, outer box size: 66CM*62CM*42CM
Gross weight of the full case: 20kg
Color box size: 200*105*203MM
USB Fan Technical Specification Book
1. Electrical Characteristics (25°C ± 5°C):
1.1 Rated Voltage: 5.0V DC;
1.2 Rotation Direction: Clockwise (CW) facing the windmill end.
1.3 Rated Current: 0.42 ± 10% A;
1.4 Rated Speed: 2800 ± 10% r/min;
1.5 rated load: ∮100 four aluminum blades;
1.6 Start-up Voltage: 3.5V DC (Max);
1.7 Start-up Current: 0.3±10%A (Max);
II. Operating Environment:
2.1 Temperature: -5~40℃
Section Three: Structure
3.1 Appearance Dimensions: Complies with Appearance Diagram LZ12025-001;
3.2 Axial Strain: 0.3~1.0 µL;
3.3 Blades vibrate: ≤0.5?L;
3.4 Lead Specification: 0.2m long, red and black exposed, total length 120mm
3.5 Power cord should withstand a tension of ≥30N
