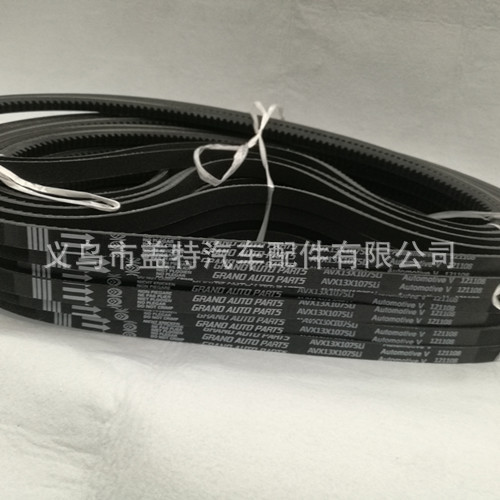

13x1075 (2)_副本

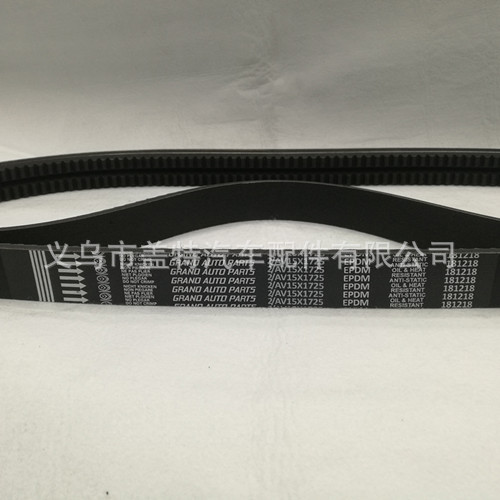

2rv15x1725 (2)_副本

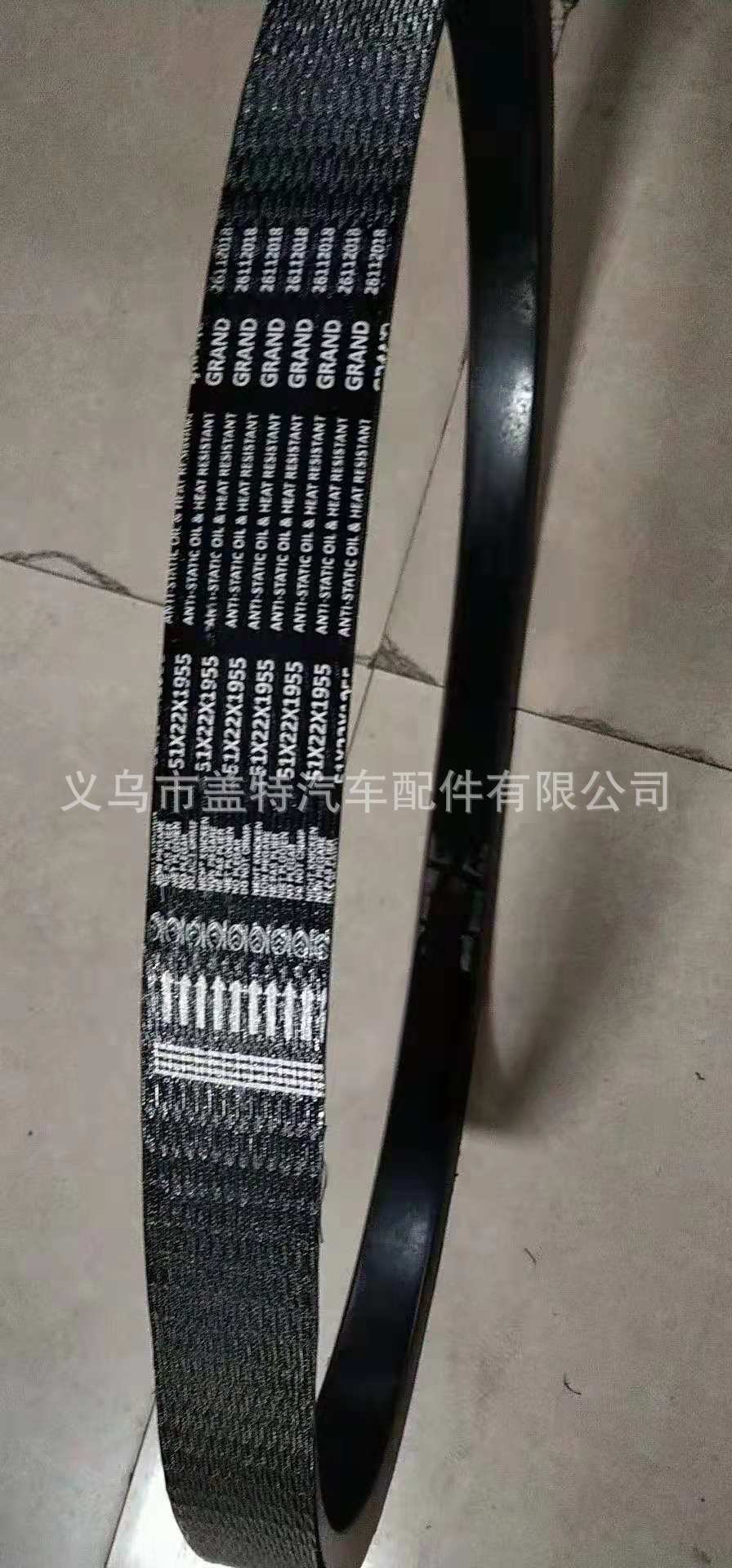

HM 51X22X1955 (6)

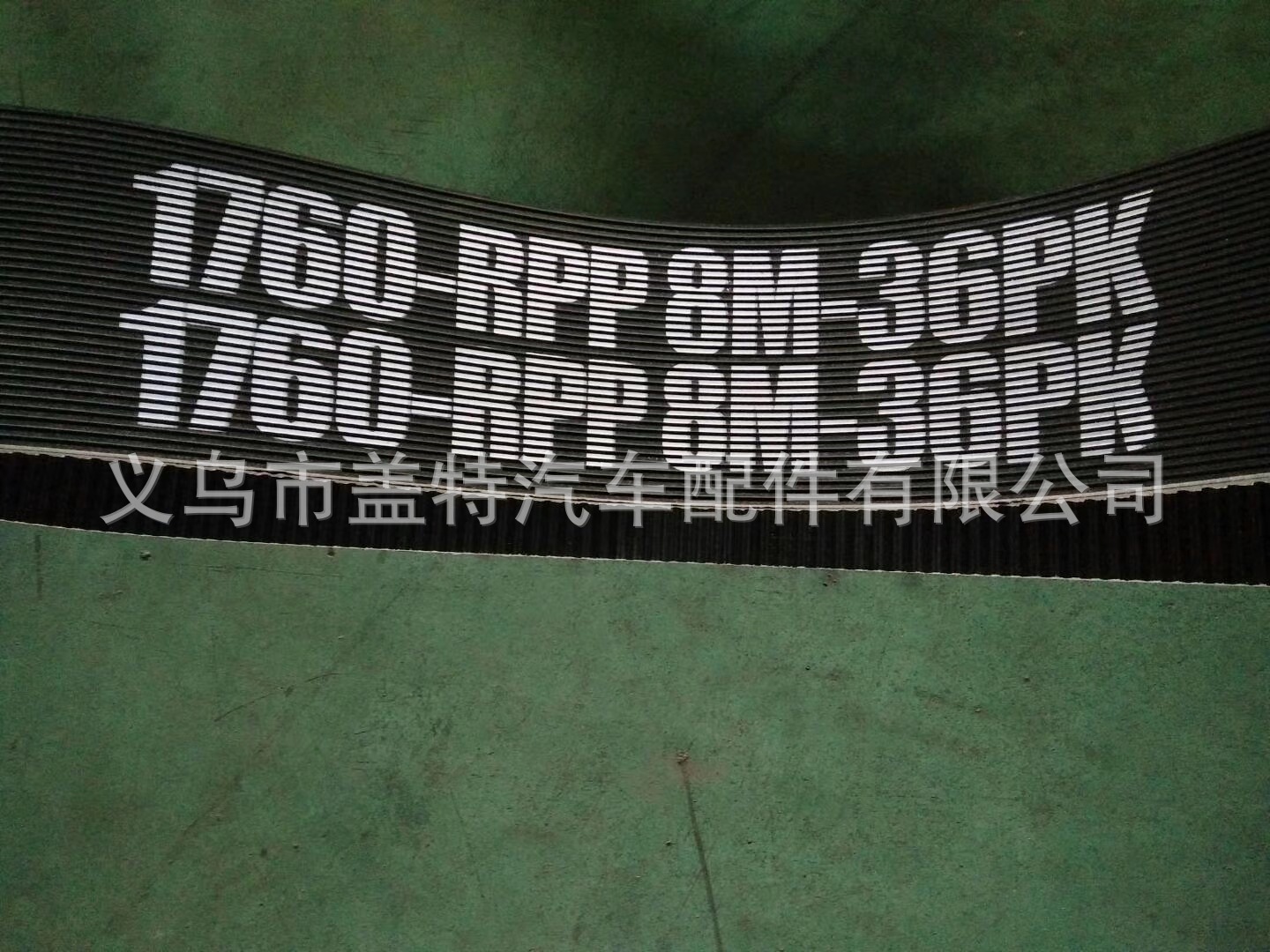

36PKRPP8M1760

Research and development, production of agricultural machinery belt products, complete specifications, excellent surface technology, good printing effect. Welcome to consult!

Wedge beltStructure:

Serial number	The name of the	function	material
1	The top cloth	Protects the inner layer of the tensile body	Polyester/cotton canvas
2	Buffer rubber	To withstand and protect the adhesion of the tensile body	CR, EPDM
3	The tensile body	Core materials for delivering power	Polyester, nylon
4	At the end of the glue	Maintain the shape of the tape and improve the lateral pressure performance	CR, EPDM

Wedge beltCharacteristics of the

Band width and thin, excellent flexibility and flexibility
High transmission efficiency in high speed rotation, reverse deflection and small belt pulley
High tension and low elongation core adhesive is adopted to maintain even tension during operation
Excellent heat, oil and abrasion resistance
Less slippage and greater transmission effect during operation
Low noise during operation

Section size

model	Wedge distance (mm)	Wedge Angle (^o)	With high (mm)	Wedge number	The length of the
PH	1.6	40	3	3-54	540-1270.
PJ	2.34	40	4	3-36	540-18880.
PK	3.56	40	4 to 6	3-23	600-2400.
PL	4.7	40	10	3-16	900-3000.
PM -	9.4	40	17	3-8 -	1500-3000.

Features of multi-wedge belt:
1. Rubber multi-wedge belt has both the advantages of v belt and flat belt, with both the soft and strong characteristics of flat belt and the advantages of compact and efficient v belt. The main features of multi-wedge belt are as follows:
Multi - wedge belt transmission power, space phase than the ordinary V belt transmission power of 30% higher.
2. The multi-wedge belt transmission system is compact in structure. Under the same transmission power, the space occupied by the transmission device is 25% smaller than that of the common V belt.
3. Multi-wedge belt with thin body, rich flexibility, suitable for small diameter belt wheel transmission, also suitable for high-speed transmission, belt speed up to 40m/s; Small vibration, less heat, smooth operation.
4. Multi-wedge belt is heat-resistant, oil-resistant, wear-resistant, with small service elongation and long service life.
